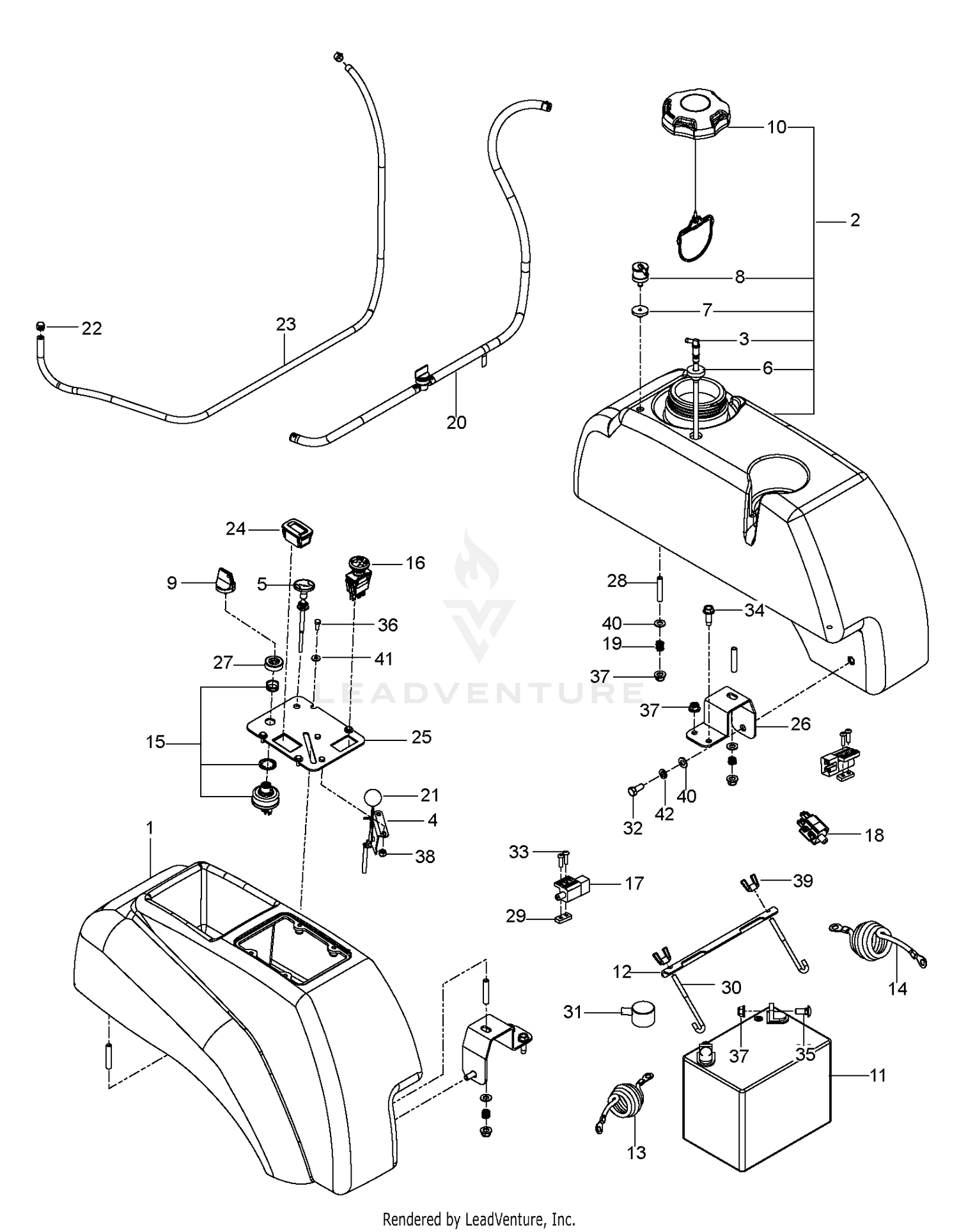

| Ref | Part Number | Description |
|---|
| 1 |
539107593 |
FENDER CONSOLE Price: $129.99 |
| 2 |
598664901 |
Tanks This part replaces 585722301. Price: $349.99 |
| 3 |
576469201 |
FITTING, FUEL Price: $22.99 |
| 4 |
597873201 |
THROTTLE CABLE W/KNOB This part replaces 539112438. Price: $37.99 |
| 5 |
531077201 |
CHOKE CABLE This part replaces 574206903. Price: $11.99 |
| 6 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 7 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 8 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 9 |
574455501 |
KEY, IGNITION Price: $5.99 |
| 10 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 11 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 12 |
510030001 |
BRACKET, BATTERY MOUNT Price: $44.99 |
| 13 |
588030701 |
CABLE.BATT.SOLENOID.MZ.RED.25" Price: $11.99 |
| 14 |
588030801 |
CABLE.GROUND.BATT.MZ.BLACK.39" Price: $11.99 |
| 15 |
574455401 |
SWITCH, IGNITION, INDAK Price: $29.99 |
| 16 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 582107602. Price: $24.99 |
| 17 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 19 |
539102845 |
SPRING Price: $2.99 |
| 20 |
586123901 |
FUEL.HOSE.SHUT.OFF.ASM.10".26" Price: $14.99 |
| 21 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 22 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 24 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 586161801. Price: $19.99 |
| 25 |
592877402 |
PLATE.PNT.CONSOLE.MZ.EDIP This part replaces 574841203. Price: $4.99 |
| 26 |
539131671 |
SUPPORT, TANK, BLK Price: $59.99 |
| 27 |
539103178 |
CAP IGNITION NUT Price: $3.99 |
| 28 |
539102502 |
STUD, 5/16C Price: $8.99 |
| 30 |
510064002 |
Hooks This part replaces 510064001. Price: $2.99 |
| 31 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 33 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 34 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 35 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 36 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 817490516. Price: $2.99 |
| 37 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 38 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 39 |
539990997 |
WING NUT 1/4 Price: $2.99 |
| 40 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 41 |
819070818 |
WASHER Price: $5.99 |
| 42 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810030500. Price: $2.99 |
| 589669901 |
HARNESS.MAIN.MZ.PTO.RELAY |
Price: $139.99 589669901 |
