| Ref | Part Number | Description |
|---|
| 1 |
5-1171 |
DISCONTINUED Price: Call Us |
| 1A |
48843 |
ENGINE, 12.5HP KOHLER(PS-1256) Price: Call Us |
| 1A |
48844 |
ENGINE, 14HP KOHLER(CV12.5T PS-1413) Price: Call Us |
| 1B |
481052 |
ENGINE, 14HP KAWASAKI, ELEC. START Price: Call Us |
| 2 |
5-1168 |
DISCONTINUED Price: Call Us |
| 3 |
3-5040 |
DISCONTINUED Price: Call Us |
| 3 |
48331 |
TRANSMISSION, 5-SPEED(PEERLESS 700-026) Price: Call Us |
| 4 |
3293-2 |
DISCONTINUED Price: Call Us |
| 4 |
48231 |
NEUTRAL SAFETY SWITCH Price: Call Us |
| 5 |
48122-01 |
FIBRE WASHER, THIN Price: Call Us |
| 5 |
5-1173 |
DISCONTINUED Price: Call Us |
| 5A |
48122-02 |
FIBRE WASHER, THICK Price: Call Us |
| 6 |
3210-3 |
SCREW-HH Price: $5.29 |
| 6 |
48851 |
COUPLER, JACKSHAFT Price: Call Us |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 7 |
48114-05 |
GREASE FITTING, STRAIGHT 1/4-28 Price: Call Us |
| 8 |
3219-2 |
NUT-HEX Price: $0.37 |
| 8 |
48225 |
JACKSHAFT(FITS SW32, 36, & 48) Price: Call Us |
| 8A |
48242 |
JACKSHAFT(FITS SW52, 61, & 72) Price: Call Us |
| 9 |
04063-09 |
KEY, HI-PRO #9 Price: Call Us |
| 9 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 10 |
04017-16 |
CAPSCREW, 5/16-18 X 3/4", SERRATED FLANGE(3) Price: Call Us |
| 10 |
5-1170 |
BRUSH TIE ROD STUD Price: $55.10 |
| 11 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 12 |
5-1167 |
DISCONTINUED Price: Call Us |
| 13 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 14 |
323-29 |
SCREW-HH Price: $0.42 |
| 15 |
5-1172 |
DISCONTINUED Price: Call Us |
| 16 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE Price: Call Us |

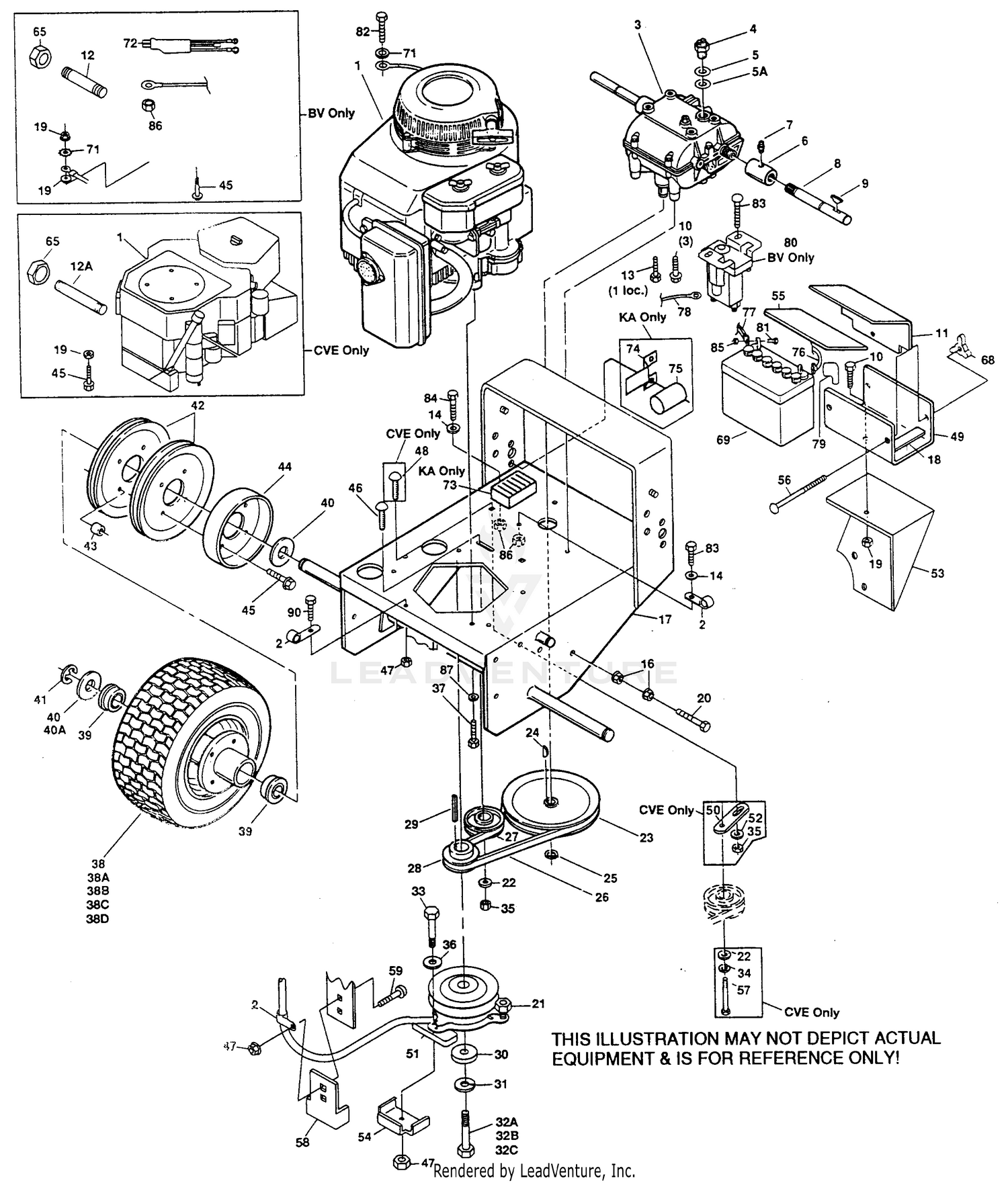

| 17A |
461743 |
Engine Deck This part replaces 45630. Price: Call Us |
| 17B |
461539 |
ENG DECK W/ DECAL, 20" SW This part replaces 45631. Price: Call Us |
| 21 |
461074 |
CLUTCH ASSEMBLY This part replaces 48786. Price: Call Us |
| 22 |
04041-07 |
WASHER, 3/8(25/64 X 15/16 X 12 GA.) Price: Call Us |
| 23 |
48197 |
PULLEY, TRANSMISSION INPUT Price: Call Us |
| 24 |
04063-07 |
KEY, WOODRUFF #9 Price: Call Us |
| 25 |
04050-09 |
RETAINING RING, 5/8 EXT. BASIC Price: Call Us |
| 26 |
48203 |
BELT, TRANSMISSION DRIVE Price: Call Us |
| 27 |
483208 |
Pulley, Idler 3" Dia. - 52" This part replaces 481048. Price: Call Us |
| 28 |
481666 |
Pulley, Traction Drive This part replaces 48945. Price: Call Us |
| 29 |
04063-19 |
KEY, 1/4 X 1/4 X 3/4" Price: Call Us |
| 30 |
04041-18 |
FLAT WASHER, 7/16 SPECIAL Price: Call Us |
| 31 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 32C |
04002-08 |
METRIC HEX HEAD CAPSCREW, M10-1.5 X 60 Price: Call Us |
| 35 |
04021-09 |
ELASTIC STOP NUT, 3/8-16 Price: Call Us |
| 37 |
04002-01 |
METRIC HEX HEAD BOLT M8-1.25 X M30 Price: Call Us |
| 38 |
48192 |
WHEEL ASSEMBLY(INCL. 38A-38B)(FITS SW36, Price: Call Us |
| 38A |
48192-02 |
TIRE, 13 X 6.50-6, 2-PLY(FITS SW36, 48, 52, Price: Call Us |
| 38B |
481859 |
Rim & Bearing Assembly This part replaces 48192-03. Price: Call Us |
| 39 |
481858 |
Wheel Brng NWC This part replaces 48193-01. Price: Call Us |
| 39 |
48193-02 |
WHEEL BEARING NWC(OD 1.984 - 1.980) Price: Call Us |
| 40 |
04042-05 |
WASHER, 1-1/16 X 1-3/4 X 12 GA. Price: Call Us |
| 40A |
04041-14 |
WASHER, 1-1/16 X 1-1/2 X 18 GA. Price: Call Us |
| 41 |
04050-08 |
RETAINING RING, 1" EXT.-"E" Price: Call Us |
| 42 |
48200 |
PULLEY, WHEEL DRIVE Price: Call Us |
| 43 |
43088 |
SPACER, WHEEL PULLEY Price: Call Us |
| 44 |
48209 |
BRAKE DRUM Price: Call Us |
| 46 |
04003-03 |
SHORT SQUARE NECK CARRIAGE BOLT, 3/8-16 X 2" Price: Call Us |
| 51 |
48814 |
RUBBER PAD, CLUTCH STOP Price: Call Us |
| 54 |
421564 |
BACKING PLATE Price: Call Us |
| 58 |
421370 |
ANTI ROTATION BRACKET Price: Call Us |
| 71 |
04031-09 |
LOCKWASHER, INTERNAL TOOTH Price: Call Us |
