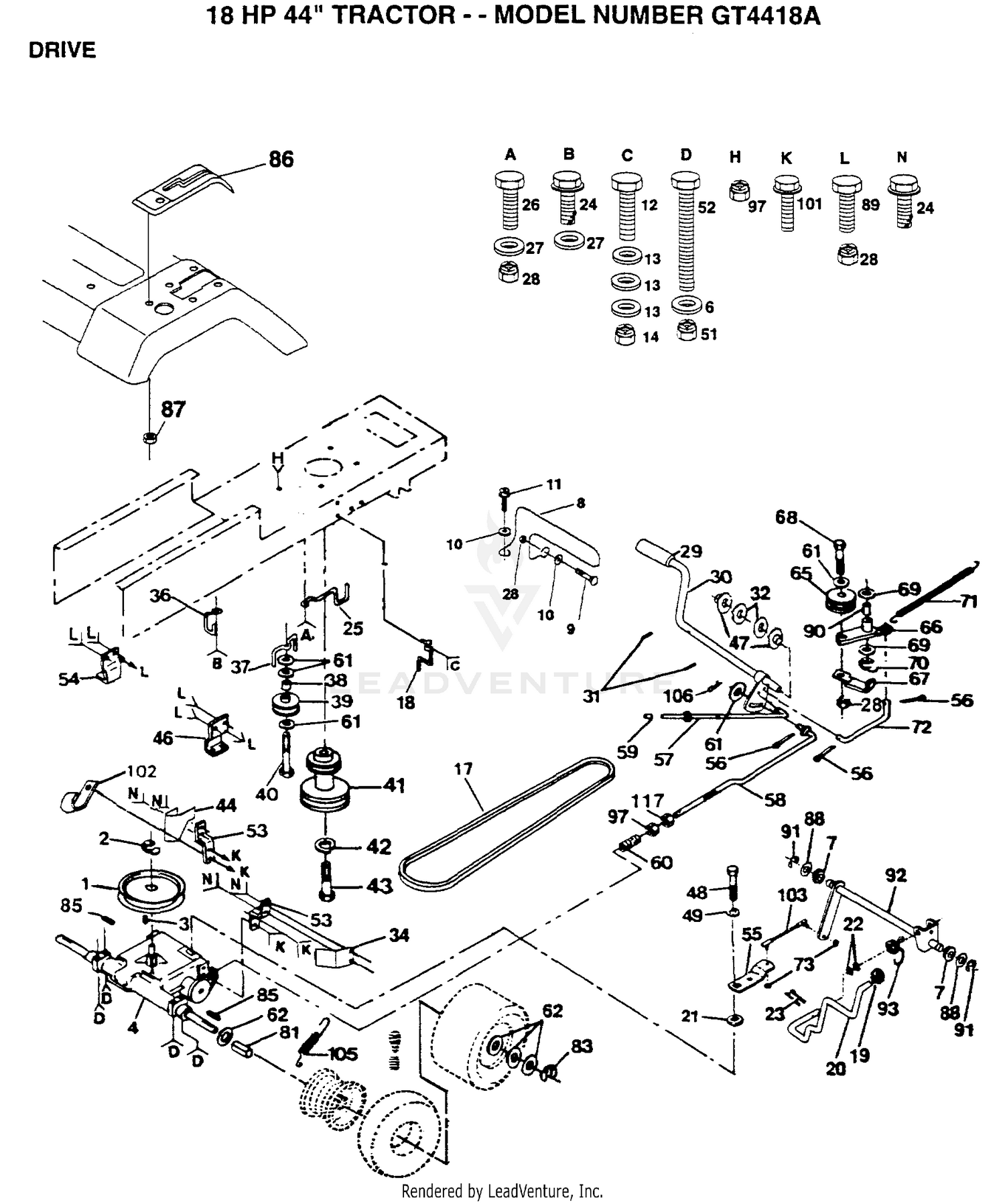

| Ref | Part Number | Description |
|---|
| 1 |
104-5269 |
FAN Price: $287.64 |
| 1 |
121327X |
PULLEY TRANSAXLE Price: Call Us |
| 2 |
114-3989 |
FAN CLUTCH ASM This part replaces 93-1430. Price: $498.92 |
| 2 |
12000004 |
RING Price: Call Us |
| 3 |
2228M |
SUB= 2228M1 Price: Call Us |
| 3 |
98-1242 |
ADAPTER-FAN Price: $147.55 |
| 4 |
138788 |
TRANSAX. PRLES. Price: Call Us |
| 4 |
52-6290 |
SCREW-HSH Price: $1.09 |
| 5 |
322-2 |
SCREW-HH Price: $0.69 |
| 6 |
19111216 |
WASHER M Price: Call Us |
| 7 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 7 |
71208 |
BUSHING Price: Call Us |
| 8 |
135029 |
MUFFLER GUARD Price: Call Us |
| 9 |
72110608 |
BOLT D Price: Call Us |
| 10 |
19131616 |
WASHER HYT Price: Call Us |
| 11 |
17490616 |
SCREW GTV Price: Call Us |
| 12 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 13 |
19132012 |
WASHER Price: Call Us |
| 14 |
73800600 |
NUT Price: Call Us |
| 17 |
123796X |
BELT.GRDRV.94.75 Price: Call Us |
| 18 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 19 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 20 |
123781X |
SUB= 141002 Price: Call Us |
| 20 |
98-3824 |
SWITCH-TEMP Price: $134.61 |
| 21 |
105701X |
WASH-SHFT PLT LT Price: Call Us |
| 21 |
98-3825 |
SWITCH-TEMP Price: $151.07 |
| 22 |
114-5095 |
ENGINE-KUBOTA DSL This part replaces 104-5259. Price: $11,571.64 |
| 22 |
19171216 |
WASHER Price: Call Us |
| 23 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 24 |
17490612 |
SCREW Price: Call Us |
| 25 |
129921 |
KEEPER.BELT.ENG.L Price: Call Us |
| 26 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 26 |
74760616 |
BOLT Price: Call Us |
| 27 |
19131312 |
WASHER Price: Call Us |
| 27 |
33014-00 |
NUT-HEX Price: $0.25 |
| 28 |
73680600 |
SUB= 73690600 Price: Call Us |
| 29 |
8883R |
PEDAL COVER T Price: Call Us |
| 29 |
98-3817 |
SOLENOID KIT Price: $522.93 |
| 30 |
122424X |
SUB= 149001 Price: Call Us |
| 31 |
1572H |
SUB= 2882J Price: Call Us |
| 32 |
19211616 |
WASHER LT Price: Call Us |
| 33 |
98-1293-03 |
BRACKET-LINE Price: $27.85 |
| 35 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
| 36 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 36 |
43-5940 |
WASHER-LOCK, SPRING Price: $0.70 |
| 37 |
109070X |
BELT KEEPER LT Price: Call Us |
| 37 |
42-9250 |
BOLT Price: $1.63 |
| 38 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 38 |
4470J |
SPACER T Price: Call Us |
| 39 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 40 |
74760644 |
BOLT Price: Call Us |
| 41 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 42 |
10040700 |
LOCKWASHER Price: Call Us |
| 43 |
71170764 |
BOLT Price: Call Us |
| 44 |
123791X |
KEEPER BELT LH Price: Call Us |
| 46 |
123776X |
BRKT TRANS RH Price: Call Us |
| 47 |
120183X |
NYLON BEARING Price: Call Us |
| 48 |
71040412 |
SUB= 74550412 Price: Call Us |
| 49 |
19091216 |
WASHER PM Price: Call Us |
| 51 |
73800500 |
NUT Price: Call Us |
| 52 |
74780544 |
BOLT HEX Price: Call Us |
| 53 |
123787X |
STRAP TORQUE Price: Call Us |
| 54 |
123780X |
BRKT TRANS LH Price: Call Us |
| 56 |
76020412 |
COTTER PIN Price: Call Us |
| 57 |
133261 |
BRAKE PARK ROD Price: Call Us |
| 58 |
123786X |
ROD BRAKE Price: Call Us |
| 59 |
71673 |
PLUNGER CAP T Price: Call Us |
| 61 |
19131316 |
WASHER Price: Call Us |
| 62 |
123800X |
WASHER Price: Call Us |
| 65 |
127783 |
SUB= 139245 Price: Call Us |
| 66 |
123789X |
ARM IDLER Price: Call Us |
| 67 |
123205X |
RETAIN BELT Price: Call Us |
| 68 |
74760624 |
SUB= 74930624 Price: Call Us |
| 69 |
110812X |
WASHER LT Price: Call Us |
| 70 |
12000039 |
KLIP RING Price: Call Us |
| 73 |
73530400 |
NUT 1/4-28 Price: Call Us |
| 81 |
108097X |
SPACER HYT Price: Call Us |
| 83 |
12000053 |
E RING HYT Price: Call Us |
| 85 |
9396E |
SQ KEY STD Price: Call Us |
| 86 |
139992 |
CONSOLE SHIFTER Price: Call Us |
| 87 |
124346X |
NUT Price: Call Us |
| 88 |
19212016 |
WASHER D Price: Call Us |
| 89 |
74760612 |
SUB= 74780612 Price: Call Us |
| 91 |
12000008 |
KLIP RING Price: Call Us |
| 97 |
73800600 |
NUT Price: Call Us |
| 101 |
17490512 |
SCREW Price: Call Us |
| 102 |
2751R |
CLIP T Price: Call Us |
| 105 |
110422X |
SUB= 146682 Price: Call Us |
| 106 |
4497H |
RETAINER M Price: Call Us |
