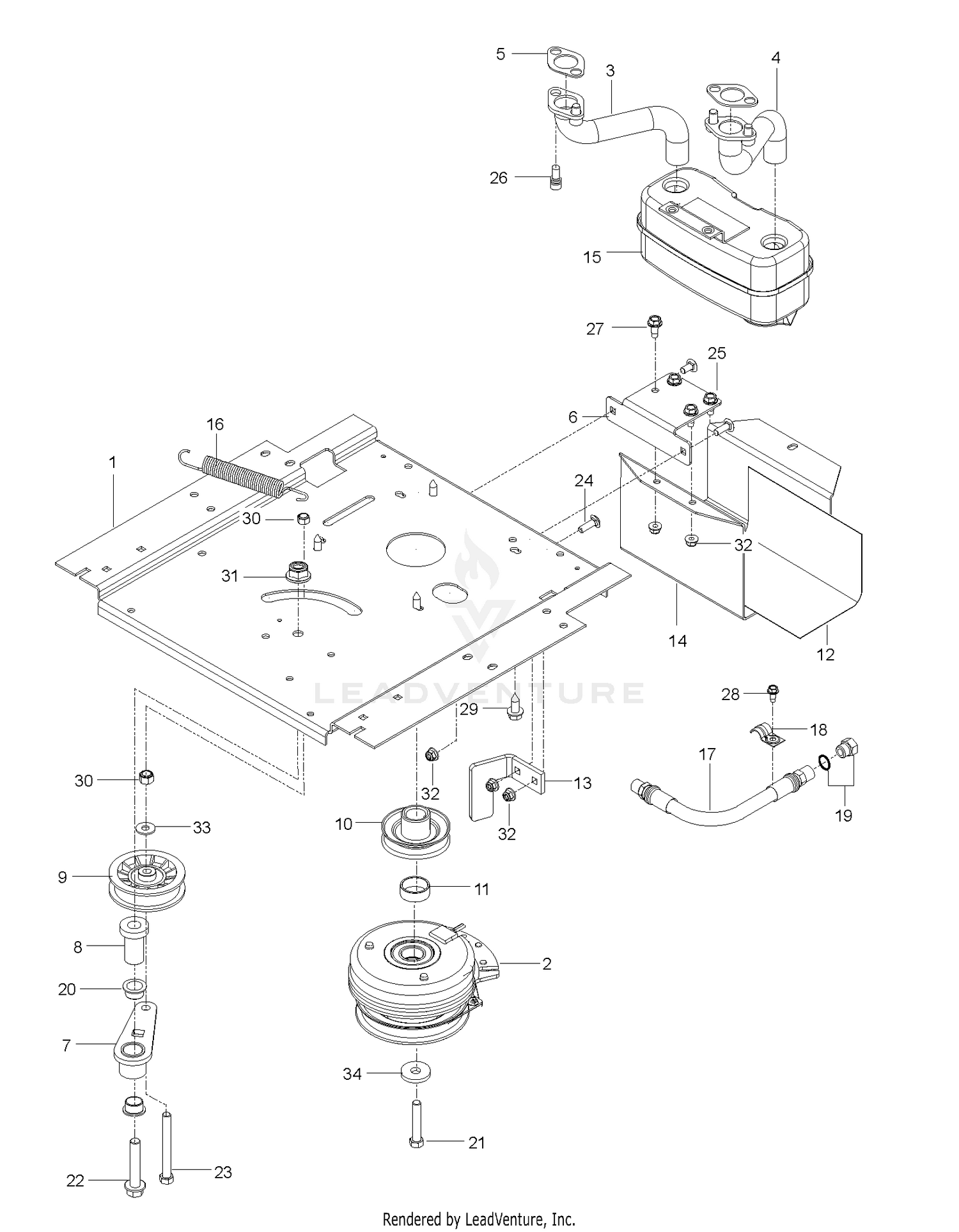

| Ref | Part Number | Description |
|---|
| 000000000 |
| |
Engine, Kohler ZT730 23 HP. For engine replacement parts, see a Kohler dealer. Price: Call Us 000000000 |
| 1 |
593898602 |
PLATE ENGINE; RZ, 23IN BLACK This part replaces 588017102. Price: $149.99 |
| 2 |
585521101 |
CLUTCH.105.FT-LBS Price: $299.99 |
| 3 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 4 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 5 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 This part replaces 586839901. Price: $5.99 |
| 6 |
581886702 |
BRACKET MUFFLER MS431BLK Price: $19.99 |
| 7 |
583593901 |
ARM.IDLER This part replaces 532448145. Price: $11.99 |
| 8 |
582538902 |
SPINDLE.IDLER This part replaces 582538901. Price: $4.99 |
| 9 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 10 |
112-0186 |
OIL PAN ASM Price: $304.73 |
| 10 |
587537401 |
PULLEY.ENGINE Price: $22.99 |
| 11 |
596401101 |
Spacers This part replaces 539112252. Price: $3.99 |
| 12 |
539132859 |
HEAT SHIELD Price: $22.99 |
| 13 |
510246002 |
STOP, CLUTCH, BLACK Price: $9.99 |
| 14 |
587451202 |
GUARD.MUFFLER.WO.TOW.HITCHX431 Price: $44.99 |
| 15 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 16 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 18 |
539101363 |
CLAMP Price: $2.99 |
| 19 |
585807101 |
PLUG OIL DRAIN Price: $2.99 |
| 20 |
501603701 |
BEARING.FLANGED.PLASTIC.3/4ID Price: $5.99 |
| 21 |
581332804 |
CLUTCH BOLT7/16-20X3.5 GR524HR Price: $6.99 |
| 22 |
582539502 |
Bolts This part replaces 582539501. Price: $5.99 |
| 23 |
596433901 |
Screws This part replaces 874520656. Price: $2.99 |
| 24 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 25 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 26 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 27 |
596030801 |
Bolts This part replaces 872140512. Price: $3.99 |
| 28 |
596637301 |
Screws This part replaces 817490410. Price: $2.99 |
| 29 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 30 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 30 |
98-9351 |
BOLT Price: $0.98 |
| 31 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 32 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 33 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 34 |
532126197 |
WASHER Price: $6.99 |
| 40 |
114-8151 |
PLUG-DRAIN Price: $9.99 |
| 50 |
98-7524 |
GASKET Price: $5.09 |
| 60 |
112-7003 |
HEAD-FILTER, OIL Price: $83.70 |
| 70 |
105-3776 |
O-RING Price: $5.77 |
| 589543901 |
KIT.ARM.IDLER.RZ |
Price: $32.99 589543901 |
