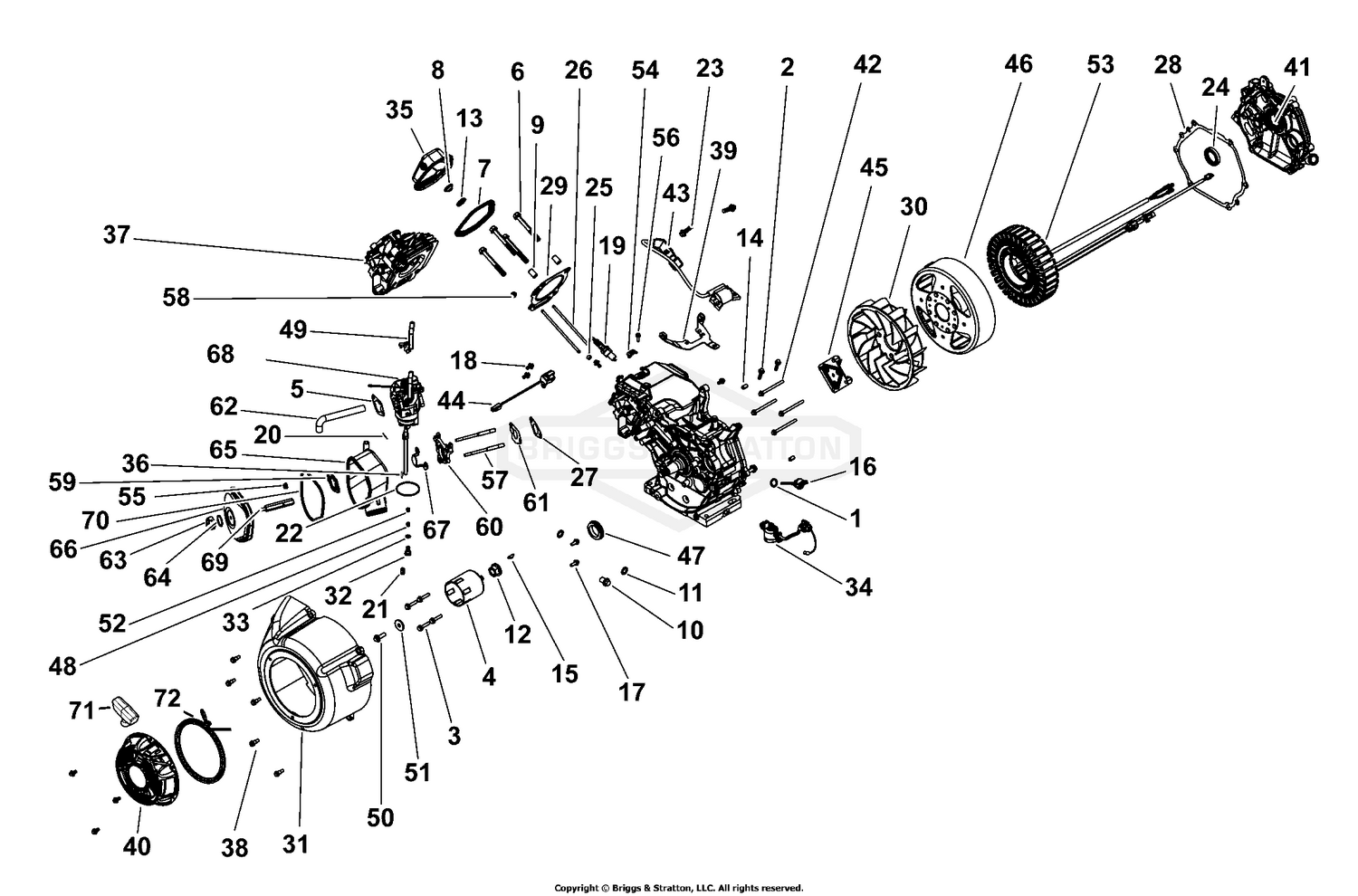

| Ref | Part Number | Description |
|---|
| 1 |
84004385 |
SEAL, O-Ring This part replaces 797327. Price: $4.82 |
| 2 |
590644 |
SCREW This part replaces 797655. Price: $3.36 |
| 3 |
797656 |
SCREW Price: $3.92 |
| 4 |
797746 |
CUP, Flywheel Price: $10.10 |
| 5 |
797756 |
GASKET, Air Cleaner Price: $5.04 |
| 6 |
797791 |
SCREW Price: $3.24 |
| 7 |
797846 |
GASKET, Rocker Cover Price: $8.41 |
| 8 |
590987 |
WASHER, Sealing Price: $5.04 |
| 9 |
797792 |
PIN, Locating Price: $5.17 |
| 10 |
797793 |
PLUG, Oil Drain Price: $5.17 |
| 11 |
797794 |
WASHER Price: $4.03 |
| 12 |
797811 |
NUT Price: $4.37 |
| 13 |
797847 |
WASHER, Sealing Price: $6.51 |
| 14 |
797761 |
PIN, Locating Price: $4.35 |
| 15 |
797286 |
KEY, Flywheel Price: $4.82 |
| 16 |
84004387 |
PLUG, Dipstick/Fill This part replaces 799941. Price: $6.93 |
| 17 |
798975 |
SCREW Price: $3.14 |
| 18 |
798618 |
SCREW Price: $3.36 |
| 19 |
798615 |
PLUG, Spark Price: $6.36 |
| 23 |
590964 |
SCREW Price: $2.72 |
| 24 |
591794 |
SEAL, Oil Price: $10.22 |
| 25 |
591817 |
CAP, Valve Price: $8.11 |
| 26 |
591818 |
ROD, Push Price: $9.88 |
| 27 |
591779 |
GASKET, Intake Price: $3.70 |
| 28 |
592597 |
GASKET, Crankcase Price: $12.57 |
| 29 |
592834 |
GASKET, Cylinder Head Price: $12.57 |
| 30 |
596671 |
FAN, Flywheel Price: $23.41 |
| 31 |
596687 |
HOUSING, Blower Price: $111.80 |
| 34 |
797771 |
SENSOR, Oil Price: $54.71 |
| 35 |
799778 |
COVER, Rocker Price: $32.95 |
| 37 |
593093 |
HEAD, Cylinder Price: $205.96 |
| 38 |
596686 |
SCREW Price: $2.82 |
| 39 |
596688 |
BRACKET, Ignition Price: $4.92 |
| 40 |
596109 |
STARTER, Rewind Price: $73.98 |
| 41 |
84004381 |
COVER, Crankcase Price: $142.99 |
| 42 |
596694 |
SCREW Price: $2.93 |
| 43 |
596107 |
ARMATURE, Magneto Price: $59.54 |
| 44 |
596689 |
TRIGGER, Ignition Price: $17.52 |
| 45 |
596692 |
PLATE, Cup Price: $8.58 |
| 46 |
596691 |
ROTOR ASSEMBLY Price: $264.81 |
| 47 |
596658 |
SEAL, Oil Price: $4.15 |
| 48 |
596704 |
JET, Main Price: $15.41 |
| 49 |
596703 |
LEVER, Choke Price: $5.75 |
| 50 |
595610 |
SCREW Price: $3.24 |
| 51 |
595611 |
WASHER Price: $3.48 |
| 52 |
597478 |
JET, Main Price: $15.41 |
| 53 |
84007611 |
STATOR ASSEMBLY Price: $153.72 |
| 54 |
84007612 |
CLAMP, Casing Price: $8.66 |
| 55 |
690939 |
NUT Price: $2.71 |
| 57 |
797757 |
STUD Price: $6.73 |
| 58 |
797854 |
SEAL, Valve Price: $10.89 |
| 59 |
799883 |
GASKET, Air Cleaner Price: $5.27 |
| 62 |
592353 |
TUBE, Breather Price: $18.70 |
| 64 |
596708 |
SEAL-O RING Price: $4.92 |
| 65 |
596697 |
BASE, Air Cleaner Price: $17.65 |
| 66 |
596699 |
COVER, Air Cleaner Price: $9.99 |
| 67 |
596698 |
SHIELD, Carburetor Price: $3.95 |
| 68 |
596108 |
CARBURETOR Price: $102.23 |
| 69 |
596701 |
STRAP/STUD, Air Cleaner Mounting Price: $9.78 |
| 70 |
596105 |
SEAL, Air Cleaner Cover Price: $8.07 |
| 71 |
707586 |
HANDLE-STARTER Price: $5.88 |
