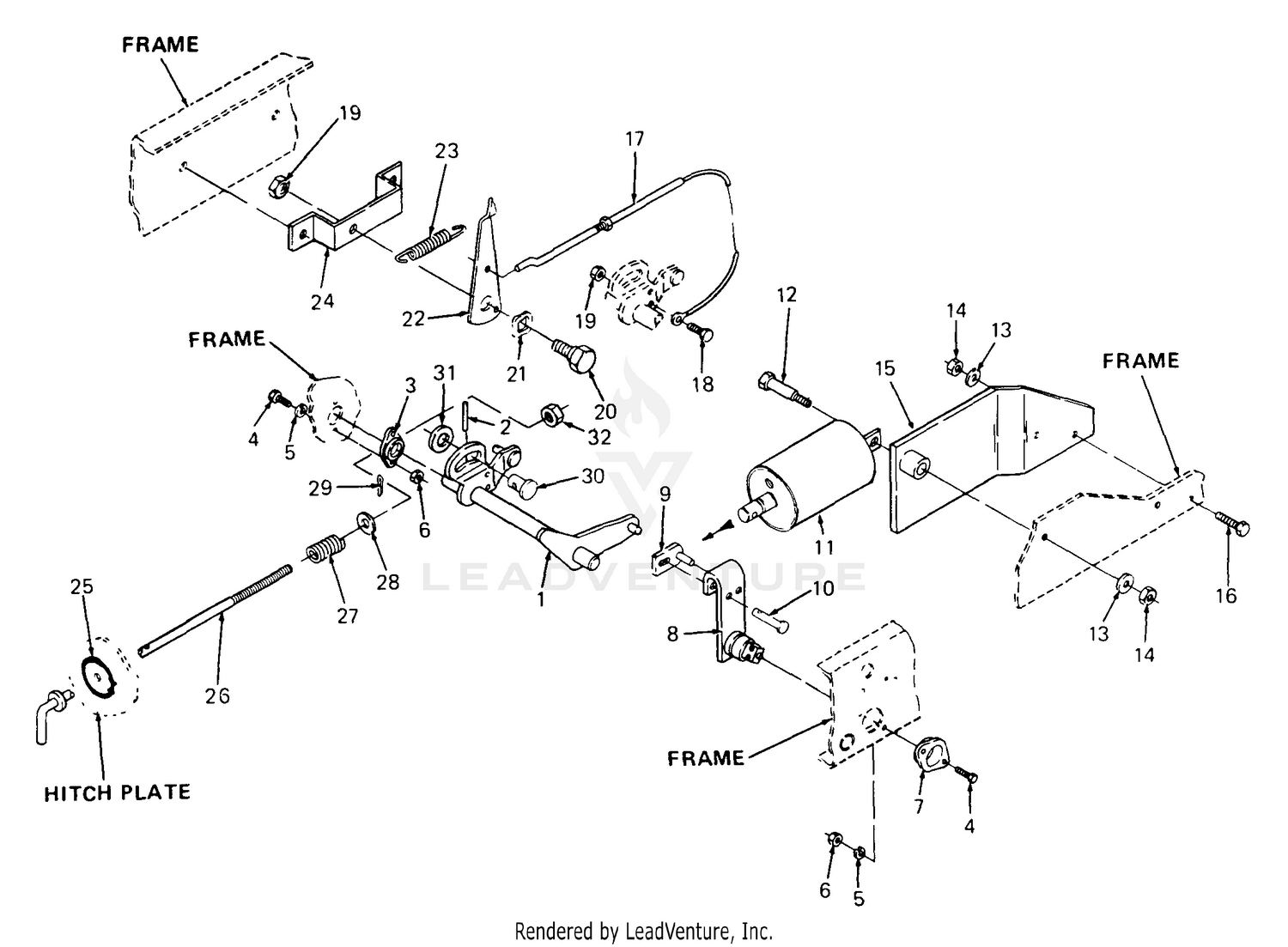

| Ref | Part Number | Description |
|---|
| 1 |
703-2001 |
SHAFT ASSY, LIFT Not Available Price: |
| 2 |
715-0114 |
Pin, Spiral Spring, 1/4 Dia x 1.50 Lg Price: $8.68 |
| 3 |
748-3041 |
BUSHING (LH) LIFT Not Available Price: |
| 4 |
710-3015 |
Screw, Hex Cap, 1/4-20 x .75 Lg GR5 Price: $3.65 |
| 5 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 6 |
712-3006 |
HEX NUT Price: $4.05 |
| 7 |
748-3040 |
BUSHING (RH) Not Available Price: |
| 8 |
703-2006 |
LIFT BRACKET ASSEMBLY Not Available Price: |
| 9 |
703-0176 |
PIN ASSEMBLY-LIFT Not Available Price: |
| 10 |
711-3030 |
CLEVIS PIN 1/2X2.1 Not Available Price: |
| 12 |
738-3008 |
SHOULDER BOLT Not Available Price: |
| 13 |
736-3019 |
Washer, Flat, .531 x 1.06 x .134 Thk Price: $5.45 |
| 14 |
712-3022 |
Nut, Hex Center Lock, 1/2-13 GR5 Price: $3.61 |
| 15 |
703-0174 |
BRACKET ASSEMBLY-CYLINDER Not Available Price: |
| 16 |
710-3032 |
Screw, Hex Cap, 1/2-13 x 1.25 Lg GR5 Price: $5.66 |
| 17 |
746-3018 |
CABLE ASSEMBLY Not Available Price: |
| 18 |
710-0206 |
Screw, Hex Cap, 1/4-20 x .88 Lg Price: $3.94 |
| 19 |
912-0107 |
Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06 |
| 20 |
938-0255 |
Shoulder Screw, .375 Dia. x .181 This part replaces 738-0255. Price: $4.53 |
| 21 |
936-0286 |
Bowed Washer This part replaces 736-0286. Price: $6.01 |
| 22 |
703-1483 |
ARM, INDICATOR Not Available Price: |
| 23 |
732-0357A |
Extension Spring 1.12" Lg. This part replaces 732-0357. Price: $3.94 |
| 24 |
703-1482 |
BRACKET-MOUNTING NL Not Available Price: |
| 25 |
779-3563 |
LABEL-DOWN STOP Not Available Price: |
| 26 |
747-3159 |
STOP ADJUSTMENT ROD Not Available Price: |
| 27 |
932-0645 |
SPRING .50IDX 1.00 Not Available This part replaces 732-0645. Price: |
| 28 |
736-3064 |
FLAT WASHER .656 x 1.312 X.074 Not Available Price: |
| 29 |
715-0104 |
PIN, INTERNAL COTTER Not Available Price: |
| 30 |
711-3317 |
CLEVIS, .750 x 1.00 LG Not Available Price: |
| 31 |
936-3094 |
FLAT WASHER .755X2.0X.0 Not Available This part replaces 736-3094. Price: |
| 502180501 |
502180501 |
Drive Tube Price: $68.66 |
| 502191002 |
502191002 |
DRIVE SHAFT Price: $54.99 |
