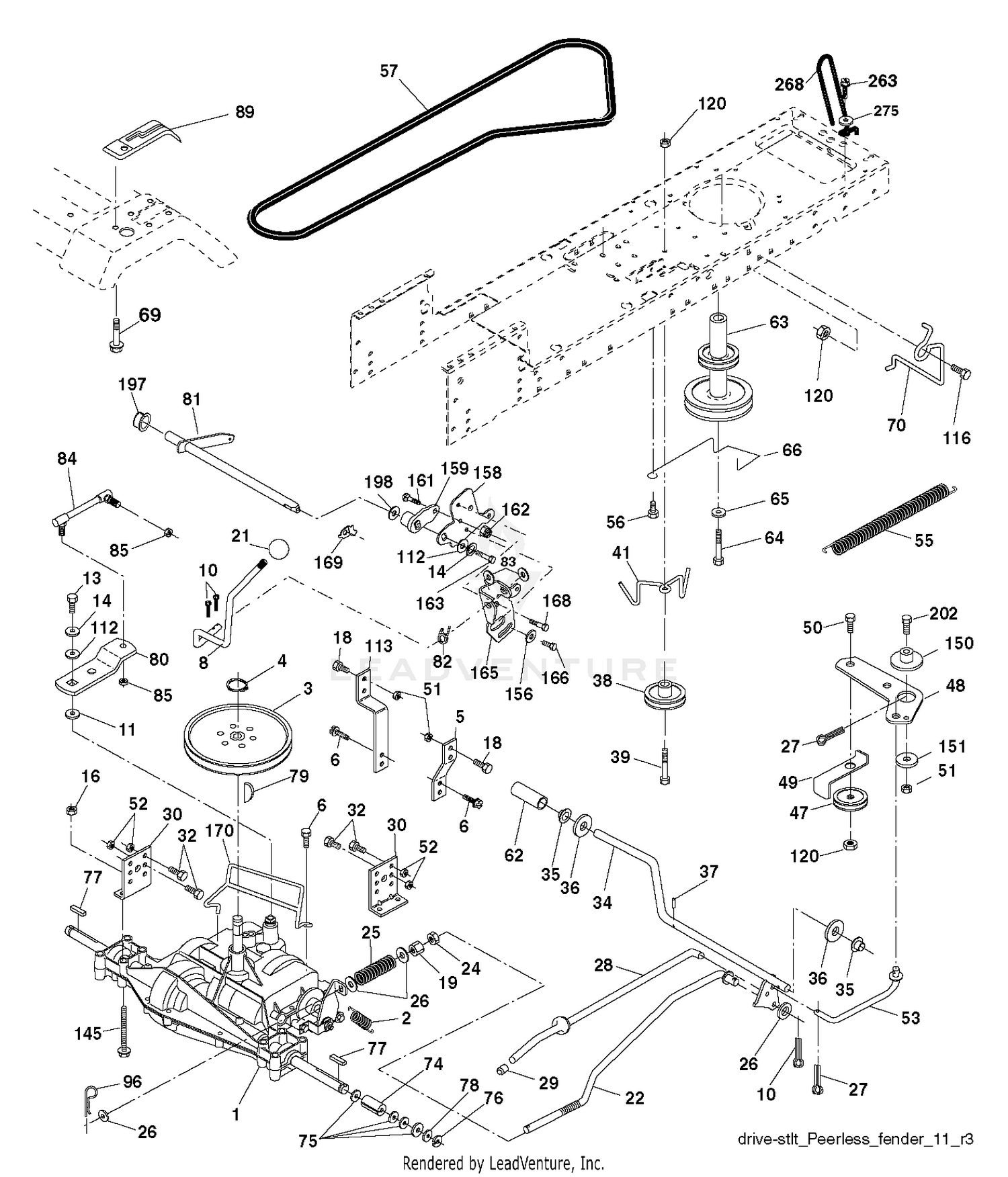

| Ref | Part Number | Description |
|---|
| 1 |
98-9512 |
GEAR-CAM Price: $246.18 |
| 2 |
532146682 |
SPRING,BRAKE RETURN Price: $5.99 |
| 2 |
98-9510 |
STOPPER-CAMSHAFT Price: $12.25 |
| 3 |
532123666 |
PULLEY TRANS Price: $39.99 |
| 3 |
98-9378 |
KEY-FEATHER Price: $1.23 |
| 4 |
112-0185 |
TAPPET This part replaces 98-9616. Price: $25.58 |
| 4 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 5 |
127-0421 |
ROD-PUSH This part replaces 98-9509. Price: $5.90 |
| 5 |
532121520 |
STRAP TORQUE Price: $6.99 |
| 6 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 6 |
98-7449 |
SCREW-SET Price: $1.83 |
| 7 |
108-6576 |
CAMSHAFT ASM This part replaces 98-9617. Price: $828.79 |
| 8 |
585139901 |
ROD.SHIFT.LT/CRD X431 This part replaces 532192706. Price: $17.99 |
| 8 |
98-7692 |
BOLT Price: $0.92 |
| 9 |
98-9533 |
SHAFT-GEAR, IDLE Price: $101.45 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 10 |
98-9535 |
COLLAR-GEAR, IDLE Price: $2.37 |
| 11 |
532105701 |
WASH-SHFT PLT LT Price: $3.99 |
| 11 |
98-9649 |
IDLE GEAR ASM Price: $88.78 |
| 13 |
596136601 |
Bolts This part replaces 874550412. Price: $1.99 |
| 13 |
98-9536 |
COLLAR-GEAR, IDLE Price: $3.41 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 14 |
98-9534 |
CIRCLIP-GEAR, IDLE Price: $1.69 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 18 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 21 |
532106933 |
KNOB T (1/2-HOLE) Price: $6.99 |
| 22 |
532130804 |
ROD BRAKE Price: $22.99 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
532130807 |
BRACKET TRANSAXLE This part replaces 532174973. Price: $3.99 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
532138255 |
BELT, V GROUND DRIVE 95 25 Price: $34.99 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532175410 |
ENGINE PULLEY Price: $64.99 |
| 64 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 70 |
531165301 |
SERVICE KIT KEEPER BELT This part replaces 532134683. Price: $6.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 79 |
532125096 |
KEY STD (1373) DANA Price: $7.99 |
| 80 |
532131486 |
ARM SHIFT Price: $6.99 |
| 81 |
532165594 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
597068801 |
Links This part replaces 532166228. Price: $34.99 |
| 85 |
532150360 |
NUT LOCK CENTER 1/4 -28 FNTHD Price: $2.99 |
| 89 |
532194971 |
CONSOLE SHIFT STLT Price: $10.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 113 |
531150301 |
SERVICE KIT STRAP STRAP TORQUE This part replaces 532127285. Price: $6.99 |
| 116 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 145 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532438250. Price: $4.99 |
| 166 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 170 |
532187414 |
KEEPER BELT T/A Price: $12.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 202 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 268 |
583122001 |
GUARD.MUFFLER This part replaces 532182402. Price: $5.99 |
| 275 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
