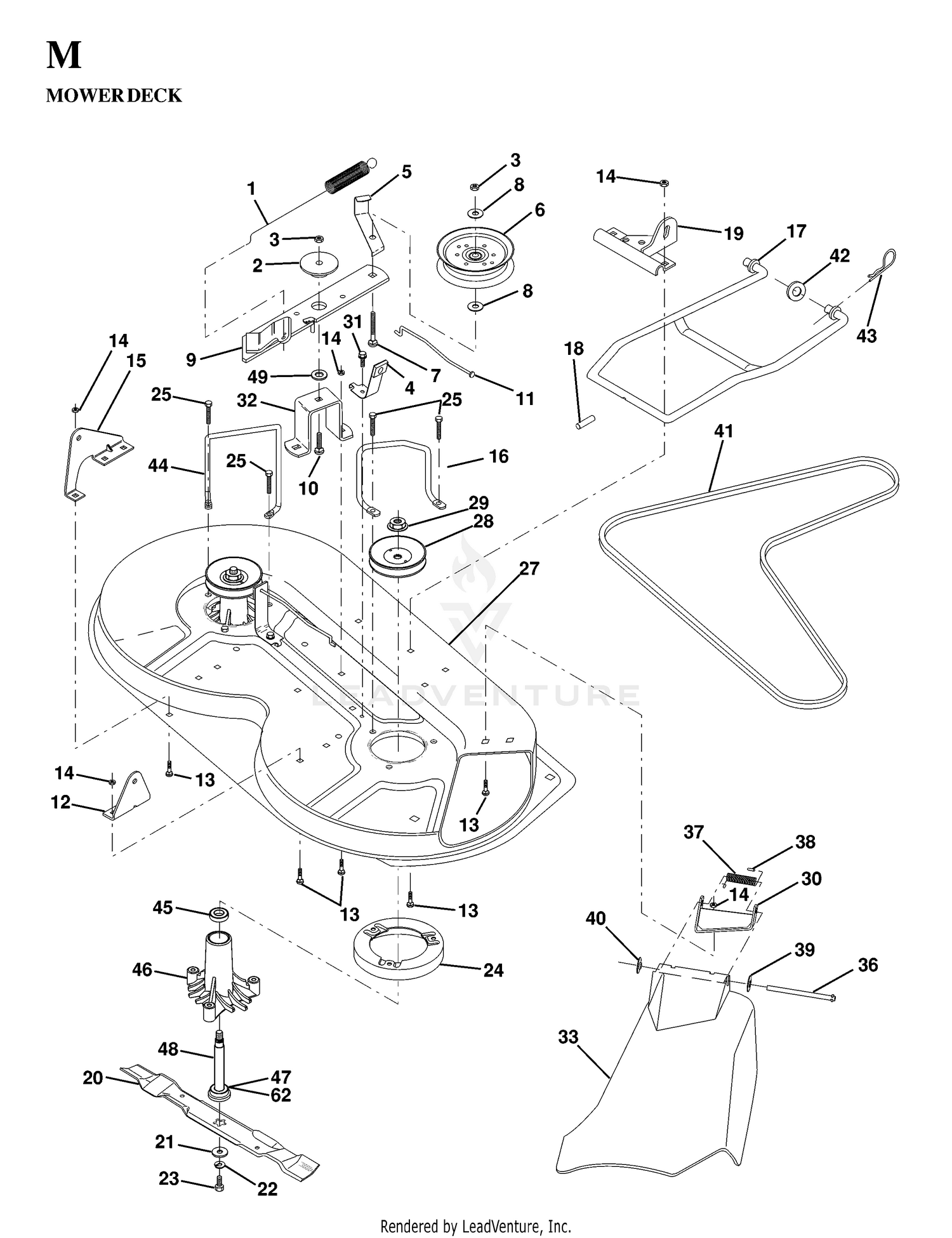

| Ref | Part Number | Description |
|---|
| 1 |
13-5620-01 |
DISCONTINUED This part replaces 13-5620. Price: Call Us |
| 1 |
532140064 |
SPRING-MOWER CLUTCH Price: $14.99 |
| 2 |
3296-45 |
NUT-HEX Price: $3.79 |
| 2 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 3 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 4 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
323-4 |
SCREW-HH Price: $1.02 |
| 5 |
532131251 |
IDLER BELT GUIDE Price: $3.99 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
532121316 |
PULLEY.IDLER.FLAT.MOWER.BLK.PT Price: $44.99 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 7 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 8 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 8 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
| 9 |
13-3710 |
WASHER Price: $3.05 |
| 9 |
532140092 |
IDLER ARM ASSY This part replaces 532127744. Price: $8.78 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 11 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 11 |
532130841 |
BRAKE ROD Price: $24.99 |
| 12 |
13-4070 |
DISCONTINUED Price: Call Us |
| 12 |
532127356 |
BRKT LIFT REAR Price: $3.99 |
| 13 |
13-4890-01 |
SPROCKET ASM This part replaces 13-4890. Price: $742.67 |
| 13 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 14 |
3218-3 |
NUT-JAM Price: $0.25 |
| 14 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 15 |
3247-6 |
SCREW-SET Price: $1.02 |
| 15 |
532127357 |
BRKT LIFT REAR LH Price: $4.99 |
| 16 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 16 |
532153298 |
BELT KEEPER Price: $11.99 |
| 17 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 17 |
532128508 |
MOWER LINK STABILIZER Price: $41.84 |
| 18 |
3217-7 |
NUT-HEX Price: $0.28 |
| 18 |
532128511 |
PIN GROOVE Price: $2.99 |
| 19 |
532127380 |
BRKT LINK STABILIIZER Price: $7.99 |
| 19 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 20 |
13-4960 |
SHAFT-PLATE, FINGER Price: $126.35 |
| 20 |
532138496 |
BLADE, HI-LIFT 36" PREMIUM Price: $22.99 |
| 21 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 21 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 22 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 22 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 23 |
115-9028 |
END PLATE ASM This part replaces 13-4930. Price: $71.85 |
| 23 |
532850857 |
BLADE BOLT Price: $3.99 |
| 24 |
144-3697-01 |
FLEX TIP REEL This part replaces 13-5250. Price: $1,218.97 |
| 24 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 25 |
115-9024 |
PLATE-CENTER This part replaces 13-2450. Price: $49.00 |
| 25 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 26 |
115-9026 |
END PLATE ASM This part replaces 13-4940. Price: $75.83 |
| 27 |
115-9022 |
FINGER-PLASTIC This part replaces 13-2470. Price: $1.83 |
| 27 |
532174082 |
DECK SVCX1 KIT MOWER.36.LR This part replaces 532156600. Price: $119.99 |
| 28 |
13-3090 |
SPRING-FINGER Price: $9.71 |
| 28 |
532173434 |
MANDREL PULLEY This part replaces 532153531. Price: $14.99 |
| 29 |
115-9023 |
CLAMP-FINGER This part replaces 13-2480. Price: $5.46 |
| 29 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 30 |
32140-94 |
SCREW-HH, SEMS Price: $5.89 |
| 30 |
532136631 |
BRACKET ASM DEFLECTOR Price: $9.99 |
| 31 |
13-5700 |
DISCONTINUED Price: Call Us |
| 31 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 32 |
325-11 |
SCREW-HH Price: $1.93 |
| 32 |
532122051 |
SUPT,IDLER ARM Price: $4.99 |
| 33 |
13-0560 |
SPACER Price: $5.29 |
| 33 |
532175029 |
SHIELD.DEFL.MWR.36" This part replaces 532139083. Price: $24.99 |
| 34 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 35 |
13-0360 |
SPACER Price: $13.03 |
| 36 |
13-3070 |
SPACER Price: $8.69 |
| 36 |
593885101 |
Rods This part replaces 532121980. Price: $5.99 |
| 37 |
32153-5 |
NUT-HEX Price: $1.59 |
| 37 |
532123713 |
SPRING TORSION Price: $6.99 |
| 38 |
13-5540-01 |
LIFTING LINK This part replaces 13-5540. Price: $40.11 |
| 38 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 39 |
328-10 |
SCREW-HH Price: $14.93 |
| 39 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 40 |
13-5230 |
DISCONTINUED X-REF Price: Call Us |
| 40 |
532110452 |
NUT PUSH M Price: $2.99 |
| 41 |
32153-6 |
NUT-LOCK Price: $3.46 |
| 41 |
532131264 |
BELT This part replaces 531005026. Price: $34.99 |
| 42 |
323-9 |
SCREW-HH Price: $1.29 |
| 42 |
596040101 |
Washers This part replaces 819171616. Price: $2.99 |
| 43 |
325-14 |
SCREW-HH Price: $2.64 |
| 43 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 44 |
13-0320 |
COLLAR-LOCK Price: $42.44 |
| 44 |
532140608 |
KEEPER LH Price: $22.99 |
| 45 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 45 |
532110485 |
BEARING Price: $11.99 |
| 46 |
13-0330 |
BLOCK-PIVOT Price: $112.26 |
| 46 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 47 |
13-5550-01 |
ARM-WHEEL, GAUGE This part replaces 13-5550. Price: $504.47 |
| 47 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 48 |
117-8544 |
WHEEL-CASTER This part replaces 13-2870. Price: $120.71 |
| 48 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 49 |
13-5570 |
PIVOT Price: $47.91 |
| 49 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 50 |
13-5590 |
ROD-ADJUSTING Price: $108.27 |
| 51 |
13-5670 |
SPACER-LOCKING Price: $189.75 |
| 52 |
13-3020-01 |
SPROCKET-IDLER This part replaces 13-3020. Price: $125.22 |
| 53 |
13-5320 |
DISCONTINUED Price: Call Us |
| 54 |
3217-9 |
NUT-HH Price: $0.37 |
| 62 |
532153390 |
WASHER FELT Price: $3.99 |
