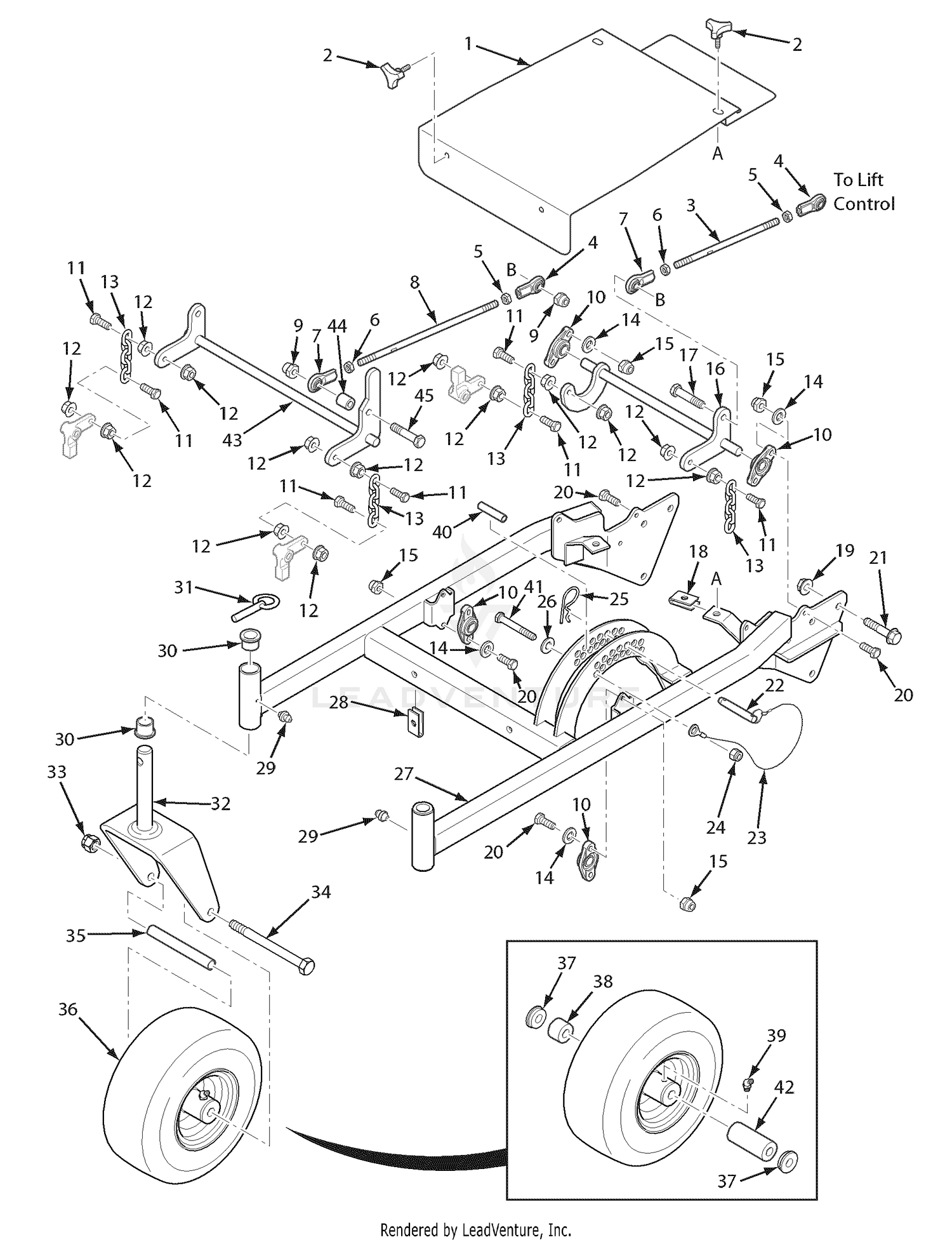

36" Cutter Deck Frame

36" Cutter Deck Frame

Parts (39)

RefPart NumberDescription
1 462120 Belt Cover, 36A Price: Call Us
2 481625-01 Knob w/Stud Price: Call Us
4 483330 Rod End, 1/2-20 LH Price: Call Us
5 04020-28 Nut, 1/2-20 UNF LH Jam Price: Call Us
6 04020-27 Nut, 1/2-20 RH Price: Call Us
7 483329 Rod End, 1/2-20 RH Price: Call Us
9 04021-07 Nut, Elastic Stop 1/2-13 Price: Call Us
10 483628 Bearing Price: Call Us
11 04001-20 Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us
12 04019-04 N ut, Serrated Flange 3/8-16 Price: Call Us
13 48540 Chain Price: Call Us
14 04040-15 Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us
15 04021-10 Nut, Elastic Stop 5/16-18 Price: Call Us
16 451944 Rear Deck Lift Weldment Price: Call Us
17 04001-52 Bolt, Hex Head 1/2-13 x 2-1/2" Price: Call Us
18 04110-03 U-Nut, 3/8-16 Price: Call Us
19 04112-05 Nut, Spiral Lock 1/2-13 Price: Call Us
20 04001-10 Bolt, Hex Head 5/16-18 x 1-1/4" Price: Call Us
21 04017-36 Capscrew, Serrated Flange 1/2-13 x 1" Price: Call Us
23 483346 Lanyard Price: Call Us
24 04021-09 Nut, Elastic Stop 3/8-16 Price: Call Us
25 04062-04 Hair Pin Cotter, .177 x 3-1/4" Price: Call Us
26 04041-07 Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us
27 462117 Frame Weldment Price: Call Us
28 04110-04 U-Nut, 3/8-16 Price: Call Us
29 48114-05 Grease Fitting Price: Call Us
30 48100-08 Bushing, 1.003 ID This part replaces 48100-17. Price: Call Us
31 04066-01 Quick Pin Price: Call Us
32 45325 Caster Wheel Yoke Price: Call Us
33 04021-07 Nut, Elastic Stop 1/2-13 Price: Call Us
34 04001-80 Bolt, Hex Head 1/2-13 x 6-1/2" Price: Call Us
35 43511 Sleeve, Caster Wheel Price: Call Us
36 9276 Caster Wheel Assembly Price: Call Us
37 481770 Bearing, Oilite Price: Call Us
39 48114-03 Grease Fitting Price: Call Us
40 43554 Spacer Price: Call Us
41 04001-22 Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us
43 451967 Front Deck Lift Weldment Price: Call Us
44 43391 Spacer Price: Call Us
