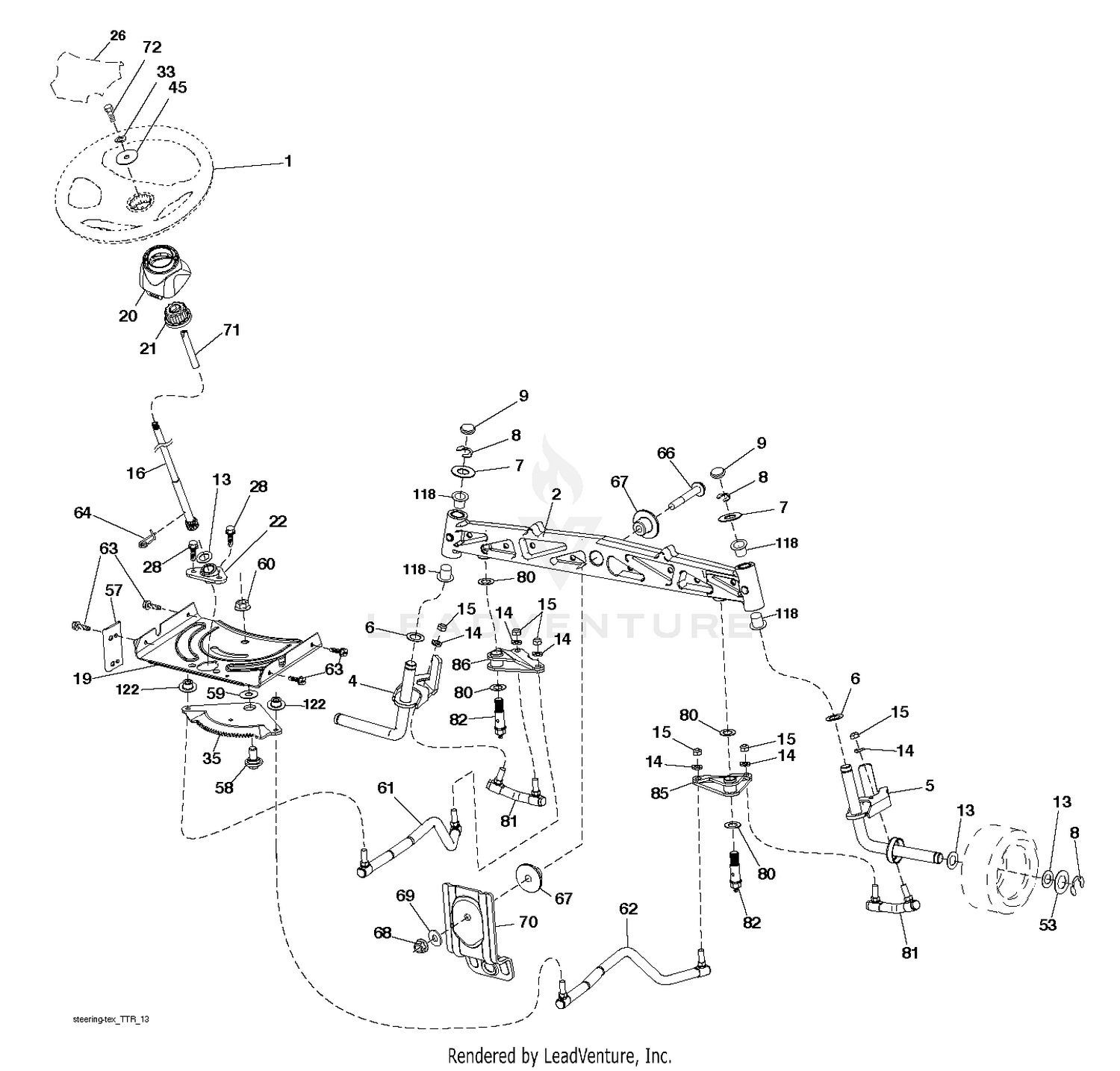

| Ref | Part Number | Description |
|---|
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 2 |
583512701 |
SUBASM.AXLE.CAST.NZTR. This part replaces 532436870. Price: $169.99 |
| 3 |
32136-2 |
NUT-SHH Price: $3.55 |
| 4 |
21-3020-01 |
MOUNT-BALLJOINT, RH This part replaces 21-3020. Price: $178.87 |
| 4 |
583512801 |
WELDMENT.SPINDLE.LH.15.NZTR This part replaces 532436873. Price: $29.99 |
| 5 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 5 |
583512901 |
WELDMENT.SPINDLE.RH.15.NZTR This part replaces 532436874. Price: $24.99 |
| 6 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
3217-8 |
NUT-HEX Price: $1.34 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 10 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 11 |
24-9510 |
PIN Price: $77.49 |
| 12 |
55-4300 |
DECAL-WARNING Price: $13.99 |
| 13 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
46-8840-01 |
SPRING-LIFT ARM This part replaces 46-8840. Price: $35.71 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
256-126 |
BUSHING Price: $9.36 |
| 16 |
583573801 |
RP.SHAFT.STEER.3HI.PLATED.NZTR This part replaces 532444213. Price: $49.99 |
| 17 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 18 |
23-1950-01 |
SUPPORT-REINFORCEMENT This part replaces 23-1950. Price: $69.64 |
| 19 |
324-4 |
SCREW-HH Price: $0.95 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 21 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 24 |
21-2860-01 |
PUSH ARM BRACKET ASM This part replaces 21-2860. Price: $154.46 |
| 25 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 26 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
32128-42 |
NUT-HF Price: $0.98 |
| 28 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 30 |
21-2900-01 |
SPRING-TORSION, LH This part replaces 21-2900. Price: $566.83 |
| 31 |
21-2890-01 |
SPRING-TORSION, RH This part replaces 21-2890. Price: $566.83 |
| 32 |
21-3050-01 |
LH BALL JOUNT MOUNT ASM This part replaces 21-3050. Price: $153.41 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 33 |
86-8100-01 |
BALL JOINT ASM This part replaces 86-8100. Price: $137.53 |
| 34 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 35 |
21-3000-01 |
NUT-JAM, PUSH ARM This part replaces 21-3000. Price: $37.02 |
| 35 |
583551401 |
GEAR.SECTOR.TEX.NZTR This part replaces 532440770. Price: $39.99 |
| 36 |
3-1365 |
CHAIN Price: $72.97 |
| 37 |
68-3270 |
BUMPER-RUBBER This part replaces 67-9800. Price: $37.99 |
| 38 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 39 |
5-2942 |
SHACKLE Price: $16.99 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597069802 |
LINKAGE SUBASM LINK DRAG LH N This part replaces 532436884. Price: $29.99 |
| 62 |
597069902 |
Links This part replaces 532436885. Price: $29.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 80 |
532001370 |
THRUST WASHER Price: $4.99 |
| 81 |
597069702 |
Links This part replaces 532436887. Price: $9.99 |
| 82 |
532436877 |
Price: Call Us |
| 85 |
529846901 |
SERVICE KIT SUBASM.PIVOT.RH.NZ This part replaces 532441873. Price: $17.99 |
| 86 |
583561001 |
SUBASM.PIVOT.LH.NZTR This part replaces 532441872. Price: $27.99 |
| 118 |
532406013 |
BUSHING, AXLE CAST Price: $4.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
