| Ref | Part Number | Description |
|---|
| 1 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 2 |
3296-357 |
Nut-HFH Price: Call Us |
| 3 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 4 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 5 |
28-9060 |
PLATE-IDLER Price: $137.75 |
| 6 |
5-1077 |
KEY-SQUARE Price: $6.18 |
| 7 |
99-1297 |
IDLER ARM ASM This part replaces 27-8580. Price: $133.94 |
| 8 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 9 |
3296-5 |
NUT-HEX Price: $3.09 |
| 10 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 11 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 12 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 13 |
3211-8 |
SCREW-HH Price: $3.50 |
| 14 |
27-1160 |
V-BELT Price: $51.80 |
| 15 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 16 |
32146-20 |
NUT-HEX Price: $3.23 |
| 17 |
7-4150 |
WASHER Price: $1.19 |
| 18 |
27-0970-03 |
PULLEY ASM This part replaces 27-0970. Price: $51.99 |
| 19 |
253-139 |
SEAL-OIL Price: $12.45 |
| 20 |
46-8530 |
BEARING ASM Price: $93.99 |
| 21 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 22 |
27-7680-03 |
RING-DECK SUPPORT This part replaces 27-7680. Price: $70.99 |
| 23 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 25 |
61-4160 |
HOUSING-SPINDLE Price: $131.00 |
| 26 |
32128-21 |
NUT-HF Price: $0.39 |
| 27 |
27-0920 |
SHAFT Price: $158.07 |
| 28 |
27-0990-03 |
BLADE-18 INCH This part replaces 27-0990. Price: $18.94 |
| 29 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 30 |
3253-27 |
WASHER-LOCK Price: $2.24 |
| 31 |
44-2200 |
SCREW-BLADE Price: $4.04 |
| 32 |
27-0950 |
SPACER Price: $29.99 |
| 33 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 34 |
92-8791 |
DISCONTINUED This part replaces 72-9260. Price: Call Us |
| 35 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 36 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 37 |
29-4820 |
ROLLER Price: $14.88 |
| 38 |
57-0690 |
PIN-SPECIAL Price: $3.66 |

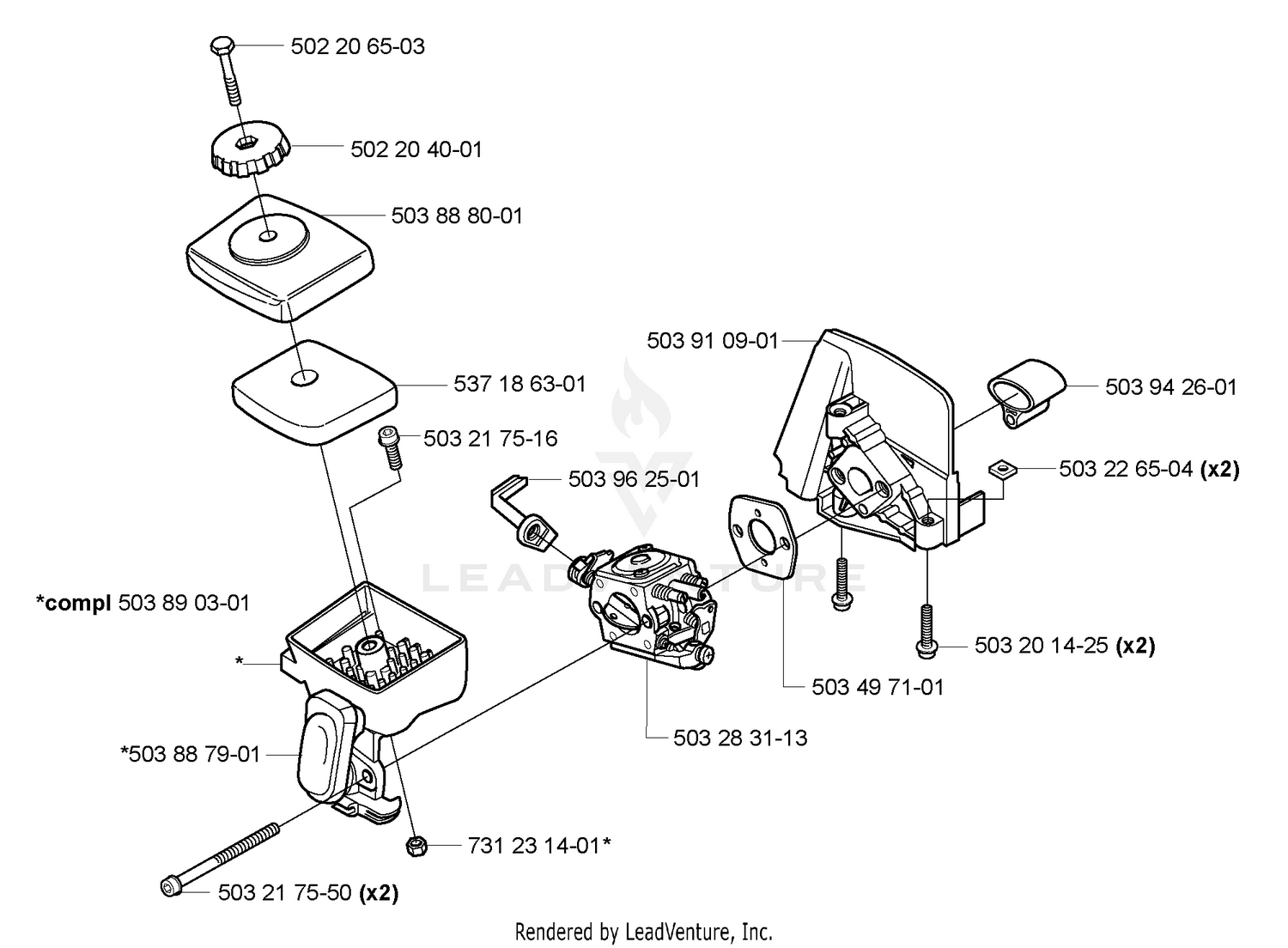

| 502204001 |
502204001 |
KNOB Price: $4.99 |
| 502206503 |
502206503 |
SCREW Price: $2.99 |
| 503201425 |
503200325 |
SCREW This part replaces 503201425. Price: $3.99 |
| 503217516 |
503217516 |
SCREW Price: $2.99 |
| 503217550 |
503217550 |
SCREW Price: $3.99 |
| 503226504 |
503226504 |
NUT Price: $4.99 |
| 503283113 |
503283113 |
CARBURETOR Price: $99.99 |
| 503497101 |
503497101 |
GASKET Price: $4.99 |
| 503887901 |
503887901 |
CAP FILTER HOLDER Price: $4.99 |
| 503888001 |
503888001 |
AIR FILTER COVER Price: $7.99 |
| 503890301 |
503890301 |
FILTER HOLDER Price: $9.99 |
| 503910901 |
503910901 |
PARTITION Price: $12.99 |
| 503942601 |
503942601 |
PIPE Price: $8.99 |
| 503962501 |
503962501 |
CHOKE CONTROL Price: $6.99 |
| 537186301 |
537186301 |
AIR FILTER (READY-OILED) Price: $5.99 |
