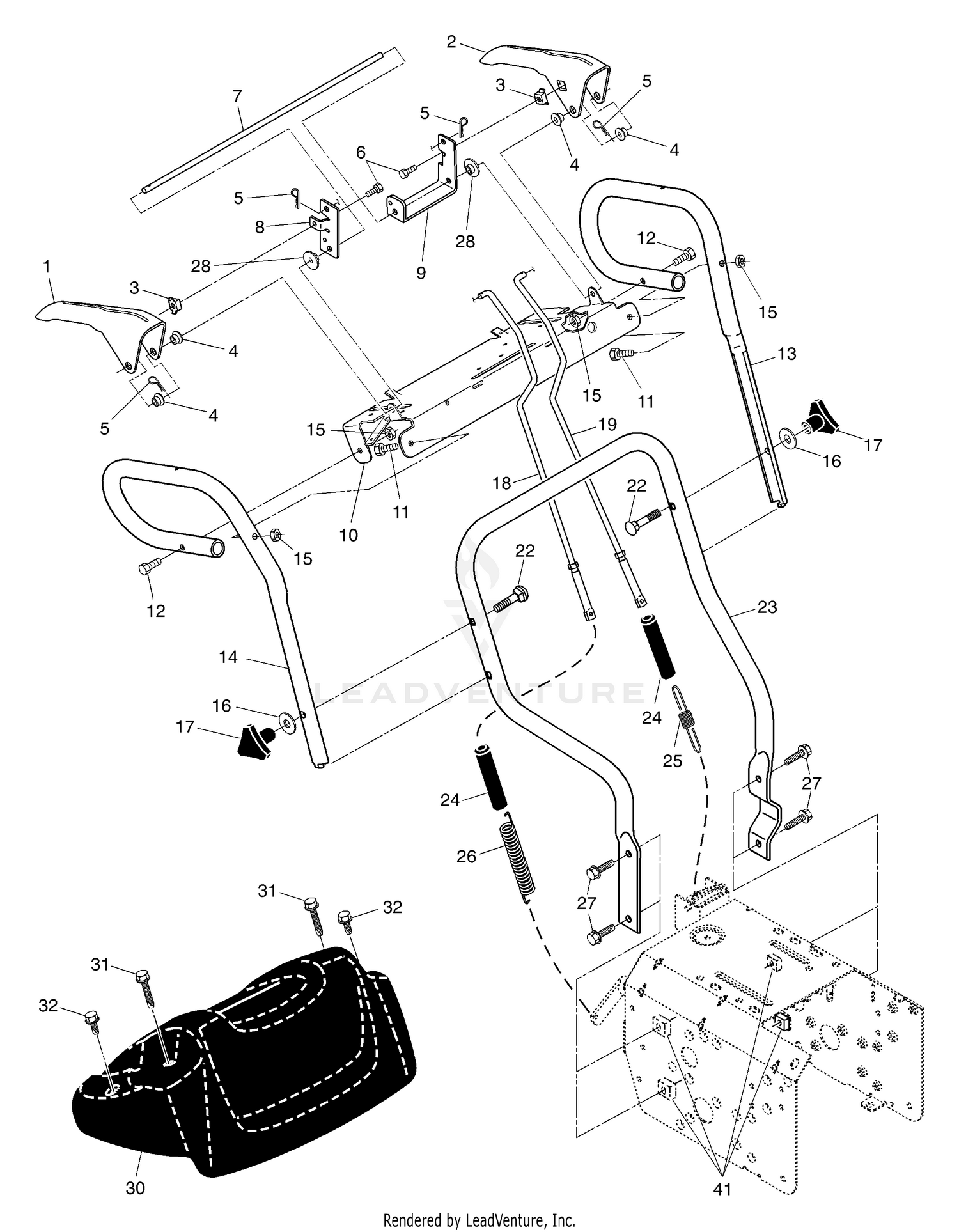

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532184110. Price: $22.99 |
| 2 |
532184109 |
LEVER, TRACTION DRIVE CONTROL Price: $9.99 |
| 3 |
532199639 |
NUT.CAGE 1/4-20 Price: $2.99 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 6 |
532199640 |
SCREW HEX Price: $3.99 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 8 |
532429098 |
ARM.IMPELLER.ROD.SNOW This part replaces 532199576. Price: $3.99 |
| 9 |
532196334 |
ARM.TRACTION.ROD.YZ. This part replaces 532199575. Price: $3.99 |
| 10 |
532196619 |
PANEL.CONTROL This part replaces 532199531. Price: $19.99 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 12 |
874780528 |
SCREW Price: $4.99 |
| 13 |
532436114 |
TUBE.HANDLE.LOOP.LH.BLACK This part replaces 532184107. Price: $54.99 |
| 14 |
532407857 |
TUBE.HANDLE.LOOP.RH.BLACK This part replaces 532184108. Price: $39.99 |
| 15 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 18 |
532180480 |
ROD.ASM.IMPELLER Price: $24.99 |
| 19 |
532180481 |
ROD.ASM.TRACTION. Price: $22.99 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 27 |
871210616 |
Screw, Hex Head 3/8-16 x 1 Price: $4.99 |
| 28 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
| 30 |
532183352 |
CONSOLE, HANDLE Price: $24.99 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
