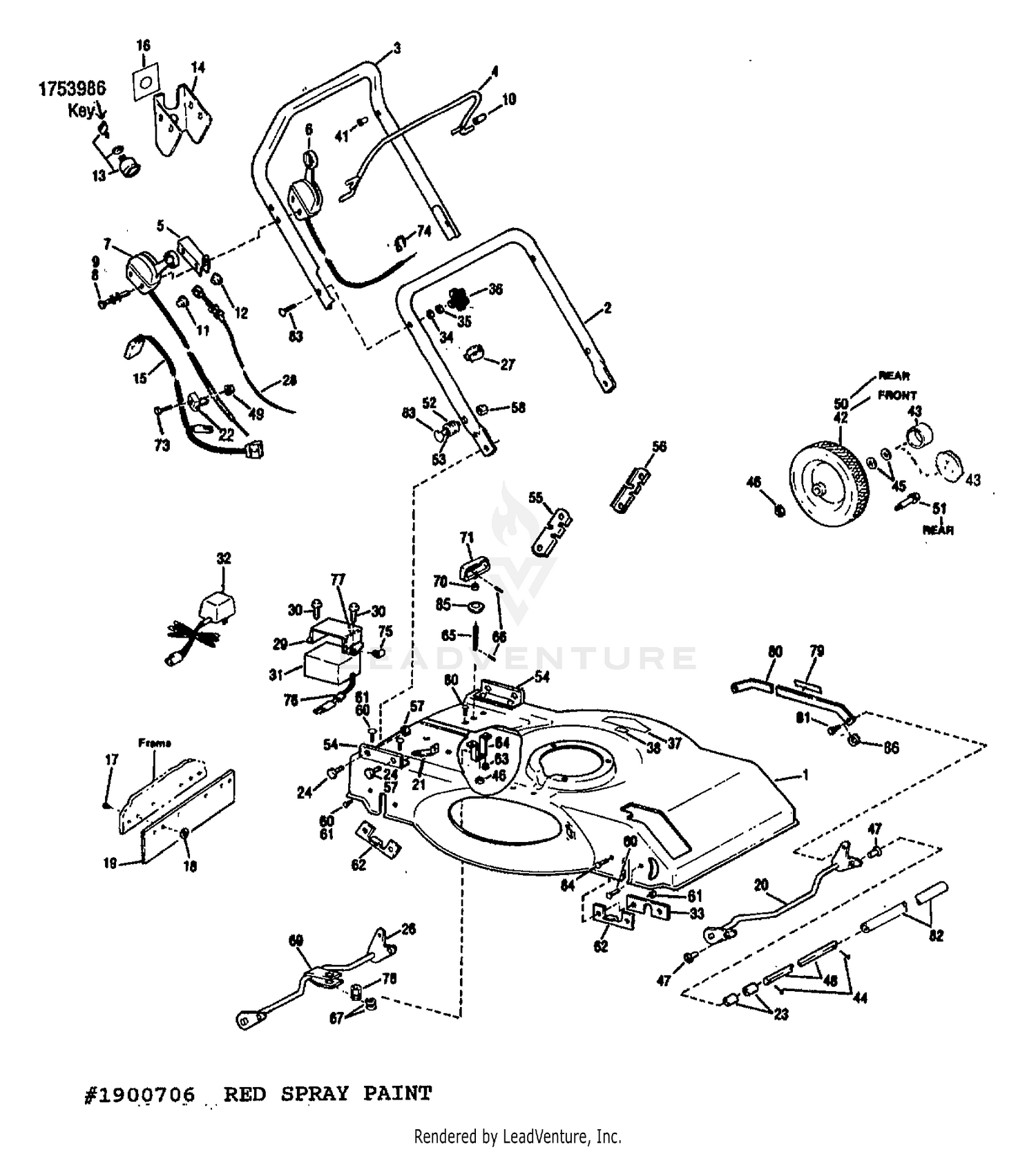

| Ref | Part Number | Description |
|---|
| 1 |
1762065 |
ASSM-BASE W/DECAL MULCHER Price: Call Us |
| 5 |
1756147001 |
SUPPORT-CONTROL Not Available Price: |
| 8 |
1756148 |
SCR HH SEM Not Available Price: |
| 8 |
1756179 |
SCR HHS Not Available Price: |
| 10 |
1751526 |
GRIP-HANDLE Not Available Price: |
| 11 |
726-0135 |
PUSH NUT This part replaces 1727342. Price: $5.94 |
| 12 |
1747236 |
RING-GRIP Not Available Price: |
| 13 |
1753986 |
IGNITION KEY Not Available Price: |
| 13 |
1900455P |
SWITCH Not Available This part replaces 1723798. Price: |
| 14 |
1756178001 |
SUPPORT-SWITCH Not Available Price: |
| 15 |
1761634 |
WIRE HARNE Not Available Price: |
| 15 |
N/A |
WIRING HARNESS (8656 MODELS) |
| 16 |
1756233 |
DECAL-ELEC START Not Available Price: |
| 18 |
1736359 |
WASHER-.88X.2X.059 Not Available Price: |
| 19 |
1755562 |
SHIELD-DEF Not Available Price: |
| 20 |
1755530010 |
ASSM-FRONT AXLE Price: Call Us |
| 21 |
1756662010 |
BRKT Not Available Price: |
| 22 |
1759076 |
CLAMP-POWD Not Available Price: |
| 23 |
1745883 |
BUSHING-NYLON Not Available Price: |
| 25 |
N/A |
NOT USED |
| 26 |
1755525010 |
ASSM-AXLE REAR Price: Call Us |
| 27 |
1729721 |
WIRE CLIP Not Available Price: |
| 27 |
N/A |
CONTROL WIRE CLIP (8654, 8655 MODELS) |
| 28 |
1758160 |
CABLE-ENGINE BRKT {8654RS} Price: Call Us |
| 28 |
1761097 |
CABLE-ENGINE BRAKE Not Available Price: |
| 29 |
1756551010 |
CLAMP-BATTERY {8656} Not Available Price: |
| 30 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available Price: |
| 31 |
1903686 |
BATTERY REPLACEMENT KIT Not Available This part replaces 1756550. Price: |
| 32 |
1733251 |
CHARGER-ELEC BATTERY {8656} Price: Call Us |
| 33 |
1756597 |
DOUBLER Not Available Price: |
| 36 |
1731030 |
KNOB Not Available Price: |
| 37 |
1739687 |
DECAL-OPEI CAUTION Price: $6.36 |
| 38 |
N/A |
INDICATOR ARROW DECAL |
| 39 |
N/A |
NOT USED |
| 40 |
N/A |
NOT USED |
| 41 |
1747499 |
BEARING-FL Not Available Price: |
| 42 |
N/A |
FRONT WHEEL AND TIRE ASSEMBLY |
| 43 |
N/A |
HUB CAP |
| 45 |
936-0456 |
FLAT WASHER Not Available This part replaces 1752069. Price: |
| 46 |
GW-20546 |
WASHER Not Available This part replaces 1890234. Price: |
| 47 |
1760842 |
AXLE BEARING Not Available Price: |
| 49 |
1186387 |
NUT-HFLK 10-24 Not Available Price: |
| 50 |
N/A |
REAR WHEEL AND TIRE ASSEMBLY |
| 51 |
1747102 |
BOLT Not Available Price: |
| 51 |
N/A |
SHOULDER SCREW |
| 52 |
1755406 |
COMPRESSION SPRING Not Available Price: |
| 53 |
1755407 |
SPACER Not Available Price: |
| 54 |
1755402001 |
BRACKET-HANDLEBAR Not Available Price: |
| 55 |
1755403001 |
SUPPORT-HANDLE (RH) Not Available Price: |
| 56 |
1755404001 |
SUPPORT-HAND L/H Not Available Price: |
| 57 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 58 |
1744708 |
HEX LOCK NUT Not Available Price: |
| 59 |
N/A |
NOT USED |
| 62 |
1743277 |
AXLE BRACKET Not Available Price: |
| 63 |
N/A |
NOT USED |
| 64 |
1743265 |
BRKT-HGT ADJ Price: Call Us |
| 65 |
1743266 |
SCR-HGT ADJ Price: Call Us |
| 68 |
N/A |
NOT USED |
| 69 |
1759497 |
CHANNEL-ADJUST SCR Price: Call Us |
| 70 |
1753347 |
SPACER Price: Call Us |
| 71 |
1754149 |
HANDLE-HEIGHT ADJ Not Available Price: |
| 72 |
N/A |
NOT USED |
| 73 |
1752461 |
SCR-HW M10-24X.88 EXTTOOTH Price: $4.05 |
| 75 |
1740012 |
WIRE CLAMP Not Available Price: |
| 76 |
1756582 |
TAG-CHARGI Not Available Price: |
| 77 |
1756549 |
PAD-BATTERY Not Available Price: |
| 78 |
1745780 |
NUT-HGT ADJUSTMENT Price: Call Us |
| 79 |
N/A |
INDICAATOR SCALE DECAL |
| 80 |
1761932 |
KIT-HEIGHT ADJ LINK Price: Call Us |
| 81 |
N/A |
SHOULDER BOLT |
| 82 |
1736069 |
TUBING-PLASTIC Price: Call Us |
| 83 |
710-1174 |
SCREW 5/16-18 x 2.0 This part replaces 1731025. Price: $6.28 |
| 84 |
1185872 |
SCR-TRUSS Not Available Price: |
| 85 |
1708850 |
RUBBER WASHER Not Available Price: |
| 86 |
1761046 |
BEARING-NY Not Available Price: |
