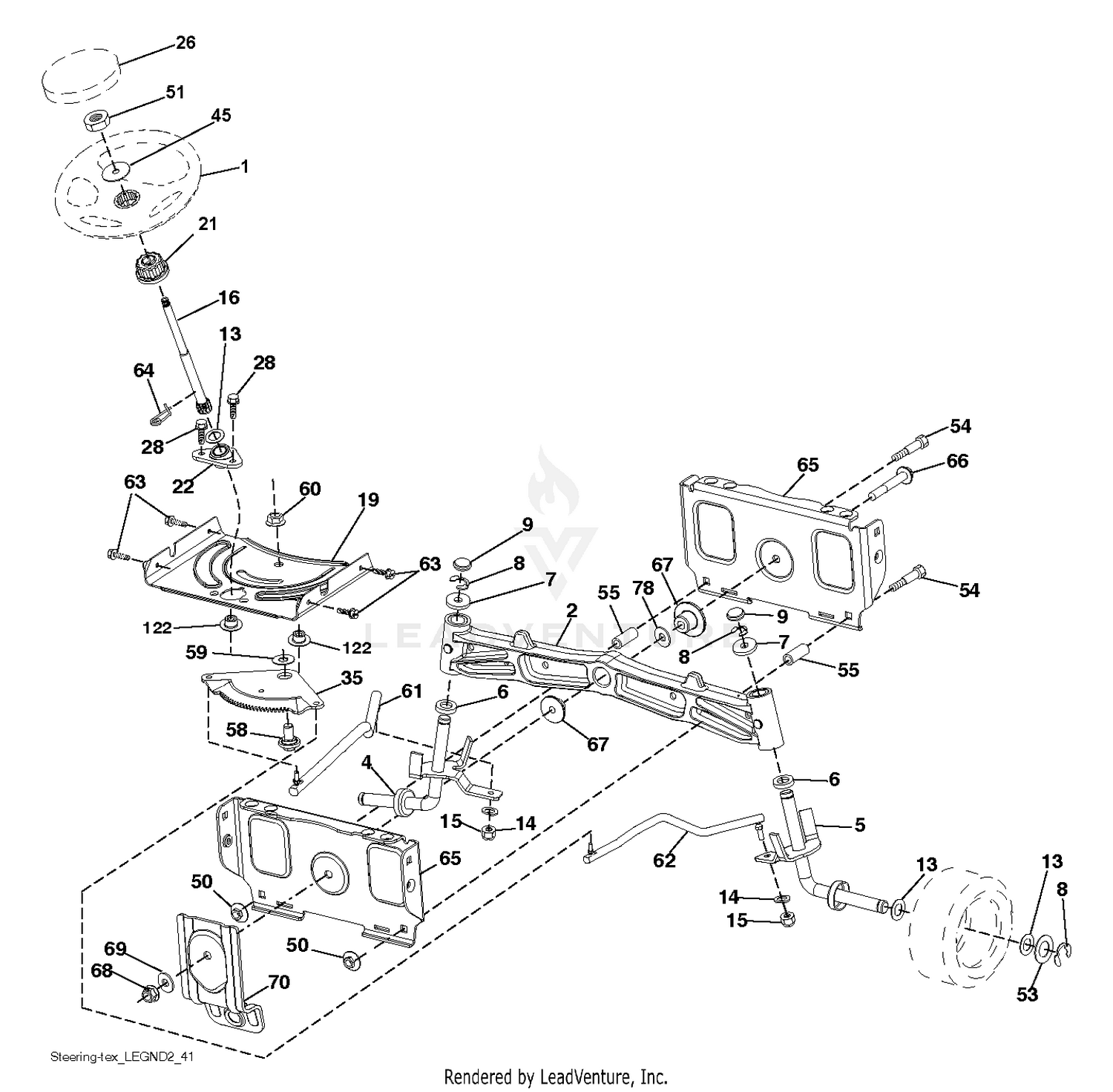

| Ref | Part Number | Description |
|---|
| 1 |
325-5 |
SCREW-HH Price: $1.20 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
323-7 |
SCREW-HH Price: $0.65 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
323-6 |
SCREW-HH Price: $0.66 |
| 4 |
53-5250-01 |
HANDLE - LIFT, LONG Price: $58.10 |
| 5 |
62-9130 |
GRIP-HANDLE Price: $7.92 |
| 6 |
53-5260-01 |
HANDLE - LIFT, SHORT Price: $107.16 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 8 |
5-4693 |
CHAIN Price: $30.29 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
282-13 |
DISCONTINUED Price: Call Us |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 13 |
53-5100-01 |
CENTER FRAME Price: $2,251.94 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
32153-5 |
NUT-HEX Price: $1.59 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 15 |
12-0010 |
U BOLT W.A. Price: $81.76 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532408219. Price: $34.99 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
5-1091 |
SPACER Price: $4.98 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 23 |
325-10 |
SCREW-HH Price: $1.82 |
| 24 |
53-4910-01 |
DRAWBAR Price: $939.13 |
| 25 |
3272-38 |
PIN-COTTER Price: $3.05 |
| 26 |
53-5230-01 |
SUPPORT-FRAME Price: $157.68 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
327-23 |
SCREW-HH Price: $3.60 |
| 28 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
3296-24 |
NUT-HEX Price: $4.44 |
| 30 |
13-6200 |
PIN-HITCH, POINTED Price: $40.83 |
| 31 |
131-4381-01 |
HITCH-CLEVIS This part replaces 47-3550-01. Price: $161.64 |
| 32 |
53-4970-01 |
HITCH EXTENSION Price: $164.85 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
532414736 |
SPACER.BRACE.AXLE Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 65 |
532194734 |
BRACE.AXLE.FRONT.NLT/N Price: $37.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 78 |
532057079 |
THRUST WASHER Price: $1.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
