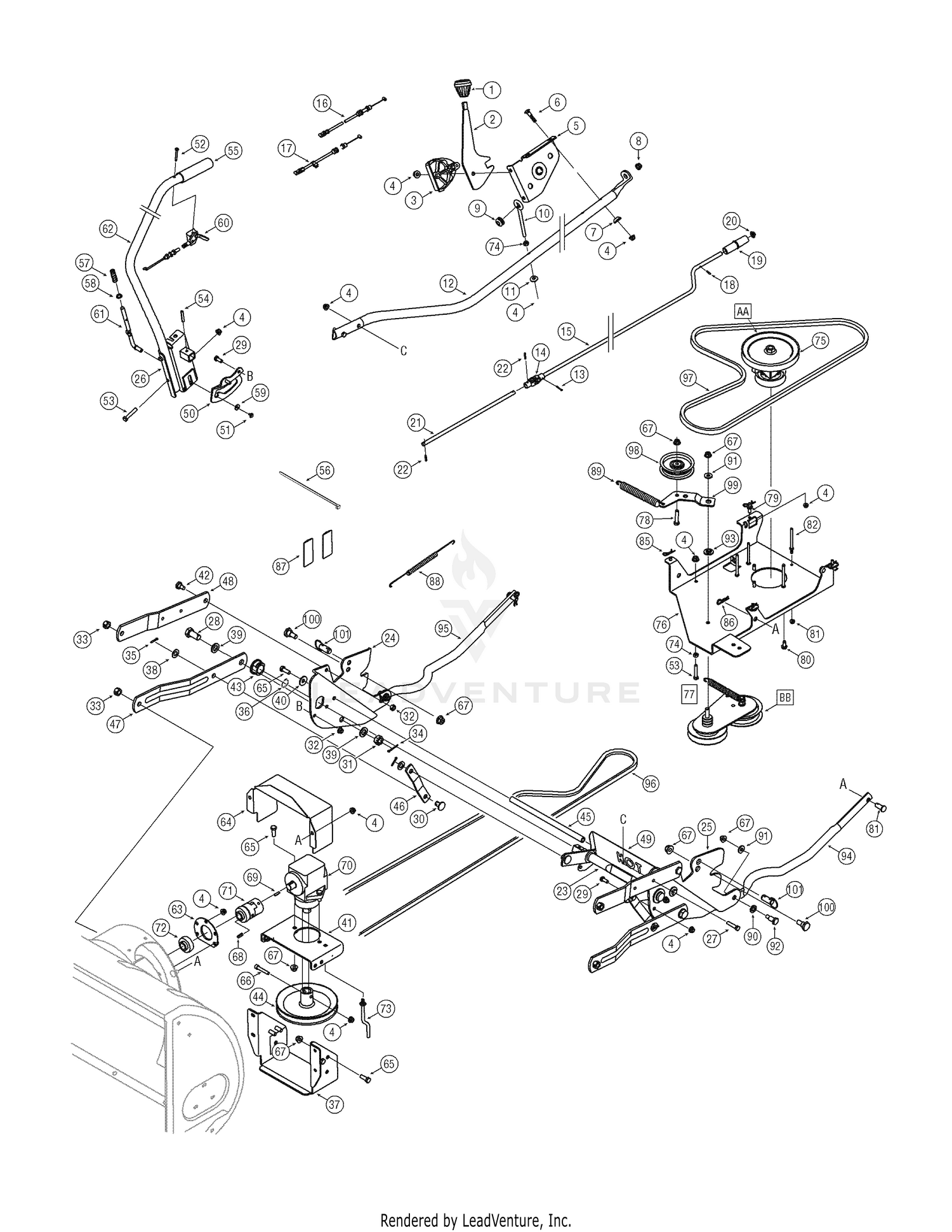

| Ref | Part Number | Description |
|---|
| 1 |
720-04039 |
Knob Price: $9.09 |
| 2 |
784-5604A-0637 |
Chute Tilt Handle This part replaces 784-5604A. Price: $22.34 |
| 3 |
731-1313C |
Chute Tilt Cable Guide Price: $10.46 |
| 4 |
712-04063 |
Nylon Hex Lock Nut, 5/16-18 Price: $3.56 |
| 5 |
603-0302A-0637 |
Assembly, Chute Tilt Bracket This part replaces 603-0302. Price: $60.87 |
| 6 |
710-0262 |
Carriage Bolt, 5/16-18 x 1.5 Price: $3.66 |
| 7 |
736-0451 |
Saddle Washer, .32 x .93 Price: $3.75 |
| 8 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 9 |
735-0234 |
Rubber Grommet, .44 x .94 x .5 Price: $4.51 |
| 10 |
747-0697 |
EYEBOLT Not Available Price: |
| 11 |
736-0242 |
Bell Washer, .340 x .872 Price: $3.75 |
| 12 |
750-04467 |
CHUTE SUPPORT TUBE Not Available Price: |
| 13 |
714-0507 |
Cotter Pin, 3/32 x .75 Price: $3.93 |
| 14 |
684-04350 |
Joint Block Assembly This part replaces 784-5149. Price: $25.48 |
| 15 |
747-1201A |
Chute Crank Rod, .38 x 35 This part replaces 747-1201. Price: $70.41 |
| 16 |
946-1108 |
CHUTE CABLE 62" This part replaces 746-1108. Price: $55.25 |
| 17 |
746P1109 |
CHUTE CABLE 62" W/CLIP This part replaces 746-1109. Price: $60.44 |
| 18 |
915-0138 |
Pin, Roll, 1/8 OD, .63 This part replaces 715-0138. Price: $4.17 |
| 19 |
720-0201A |
Crank Knob Price: $9.62 |
| 20 |
726-0100 |
Push Cap, 3/8 ID Price: $3.75 |
| 21 |
747-04400A |
Rod, .375 x 13.50 This part replaces 747-04400. Price: $19.33 |
| 22 |
715-0129 |
Spirol Pin, .125 x .82 Price: $4.19 |
| 23 |
611-0132A-0637 |
Rod Assembly This part replaces 611-0132A. Price: $310.01 |
| 24 |
783-0880E |
MOUNTING PLATE (RH) This part replaces 783-0880C. Price: $93.31 |
| 25 |
783-0879E |
BRACKET- (LH) This part replaces 783-0879C. Price: $93.31 |
| 26 |
683-04150 |
Lift Bracket Assembly Price: $59.10 |
| 27 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 28 |
710-0964A |
Hex Cap Screw, 5/8-18 x 1.31 Price: $10.02 |
| 29 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 30 |
911-0332 |
Clevis Pin, .50" Dia. This part replaces 711-0332. Price: $14.98 |
| 31 |
712-0386A |
Slotted Hex Nut, 5/8-18 Price: $6.99 |
| 32 |
712-3000 |
Hex Lock Nut, 3/8-16 Price: $3.90 |
| 33 |
712-3022 |
Hex Lock Nut, 1/2-13 Price: $3.61 |
| 34 |
714-0470 |
Cotter Pin, 1/8 x 1.25 Price: $3.90 |
| 35 |
714-0474 |
Cotter Pin, .125 x .75 Price: $4.08 |
| 36 |
716-0102 |
Snap Ring Price: $4.40 |
| 37 |
784-0402-0637 |
SKID PLATE Not Available This part replaces 784-0402. Price: |
| 38 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 39 |
736-0366 |
Flat Washer, .64 x 1.12 x .125 Price: $3.82 |
| 40 |
736-0452 |
Bell Washer, .396 x 1.14 x .095 Price: $4.05 |
| 41 |
783-1014A-0637 |
Drive Mounting Bracket This part replaces 783-1014A. Price: $76.09 |
| 42 |
738-0234 |
Shoulder Screw, .5 x .29, 3/8-16 Price: $9.41 |
| 43 |
941-0170 |
Bearing, Flange w/Flats This part replaces 741-0170. Price: $17.84 |
| 44 |
756-1181A |
Drive Pulley, 7'' Price: $99.41 |
| 45 |
747-1192 |
Rod, 1/2 x 11.55 Price: $44.07 |
| 46 |
783-0876 |
LINK Not Available Price: |
| 47 |
783-0877-0637 |
Link, 15.4 This part replaces 783-0877. Price: $76.72 |
| 48 |
783-0878B-0637 |
Link, 13.25 This part replaces 783-0878. Price: $44.37 |
| 49 |
783-1274B |
HEAT SHIELD Not Available Price: |
| 50 |
790-00110 |
Snow Thrower Lift Bracket Price: $28.27 |
| 51 |
710-1268 |
Hex Index Washer Screw #10-16 Price: $3.90 |
| 52 |
710-3143 |
Pan Phillips Screw, #10-24 x .75 Price: $10.24 |
| 53 |
710-3180 |
Hex Cap Screw, 5/16-18 x 1.75 Price: $4.93 |
| 54 |
715-0114 |
Heavy Duty Spirol Pin, 1/4 x 1.5 Price: $8.68 |
| 55 |
720-0274 |
Handle Grip Price: $9.99 |
| 56 |
725-0157 |
Cable Tie Price: $3.46 |
| 57 |
932-0306A |
COMPRESSION SPRING This part replaces 732-0306. Price: $7.69 |
| 58 |
736-0140 |
Flat Washer, .385 x .62 x .063 Price: $6.20 |
| 59 |
736-0400 |
Flat Washer, .194 x .62 x .063 Price: $4.56 |
| 60 |
946-05201 |
LIFT CABLE This part replaces 746-1103A. Price: $64.53 |
| 61 |
747-1203 |
Lift Index Rod Price: $48.33 |
| 62 |
750-1221 |
Lift Handle Tube Price: $245.11 |
| 63 |
05931A |
Bearing Housing, 1.85 ID Price: $9.73 |
| 64 |
703-2736 |
Belt Cover Price: $25.33 |
| 65 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 66 |
710-3251 |
Socket Head Cap Screw Price: $5.50 |
| 67 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 68 |
714-0122 |
Square Key, 3/16 x .75 Price: $3.07 |
| 69 |
714-0126 |
Hi-Pro Key, 3/16 x .75 Price: $4.05 |
| 70 |
917-1714B |
Right Angle Drive This part replaces 717-1714A. Price: $545.55 |
| 71 |
918-0691 |
Coupling This part replaces 718-0691. Price: $149.83 |
| 72 |
941-0309 |
Flange Ball Bearing, .75 x 1.85 This part replaces 741-0309. Price: $69.59 |
| 73 |
747-1257 |
Belt Keeper Rod Price: $19.12 |
| 74 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 75 |
918-0411A |
Spindle Assembly This part replaces 618-0411. Price: $110.39 |
| 76 |
683-04210-0637 |
PULLEY BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-04210. Price: |
| 77 |
753-08594 |
KIT - IDLER BRACKET ASSEMBLY Not Available This part replaces 684-0149. Price: |
| 78 |
710-0347 |
Hex Cap Screw, 3/8-16 x 1.75 Price: $4.39 |
| 79 |
710-04511 |
Pin, 5/16-18 Price: $30.43 |
| 80 |
710-1260A |
Carriage Bolt, 5/16-18 x .75 Price: $3.34 |
| 81 |
711-0310 |
Clevis Pin, .5 x 1.18 Price: $9.46 |
| 82 |
911-1000 |
Belt Keeper Pin This part replaces 711-1000. Price: $9.62 |
| 83 |
712-04064 |
Nylon Hex Lock Nut, 1/4-20 Price: $3.64 |
| 84 |
712-04100 |
WING NUT Not Available Price: |
| 85 |
714-0145 |
Click Pin, .092 x 1.64 Price: $4.42 |
| 86 |
714-0147 |
Internal Cotter Pin, .125 x 1.75 Price: $4.20 |
| 87 |
930-3000 |
Reflector This part replaces 730-3000. Price: $15.16 |
| 88 |
732-04237 |
Extension Spring, .50 x 12.00 Price: $21.55 |
| 89 |
932-0594A |
Extension Spring .91 x 7.33 This part replaces 732-0594A. Price: $13.74 |
| 90 |
736-0192 |
Flat Washer.531 x .93 x .09 Price: $3.75 |
| 91 |
736-3072 |
Flat Washer, .38 x .93 x .11 Price: $4.11 |
| 92 |
738-0145 |
Shoulder Screw, 3/8-16 Price: $6.01 |
| 93 |
938-0347 |
Spacer-Shld This part replaces 738-0347. Price: $8.93 |
| 94 |
749-1103-0637 |
LH Support Tube This part replaces 749-1103. Price: $46.53 |
| 95 |
749-1104-0637 |
RH Support Tube This part replaces 749-1104. Price: $46.53 |
| 96 |
954-0125A |
V-Belt (1/2 x 105) This part replaces 754-0125A. Price: $51.97 |
| 97 |
954-0498 |
V-Belt This part replaces 754-0498. Price: $40.96 |
| 98 |
756-0627D |
Idler Pulley 3.50 Dia Price: $28.58 |
| 99 |
783-1291A-0637 |
IDLER BRACKET This part replaces 783-1291. Price: $11.65 |
| 100 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 101 |
714-04061 |
Quick Release Pin, shown Price: $19.21 |
