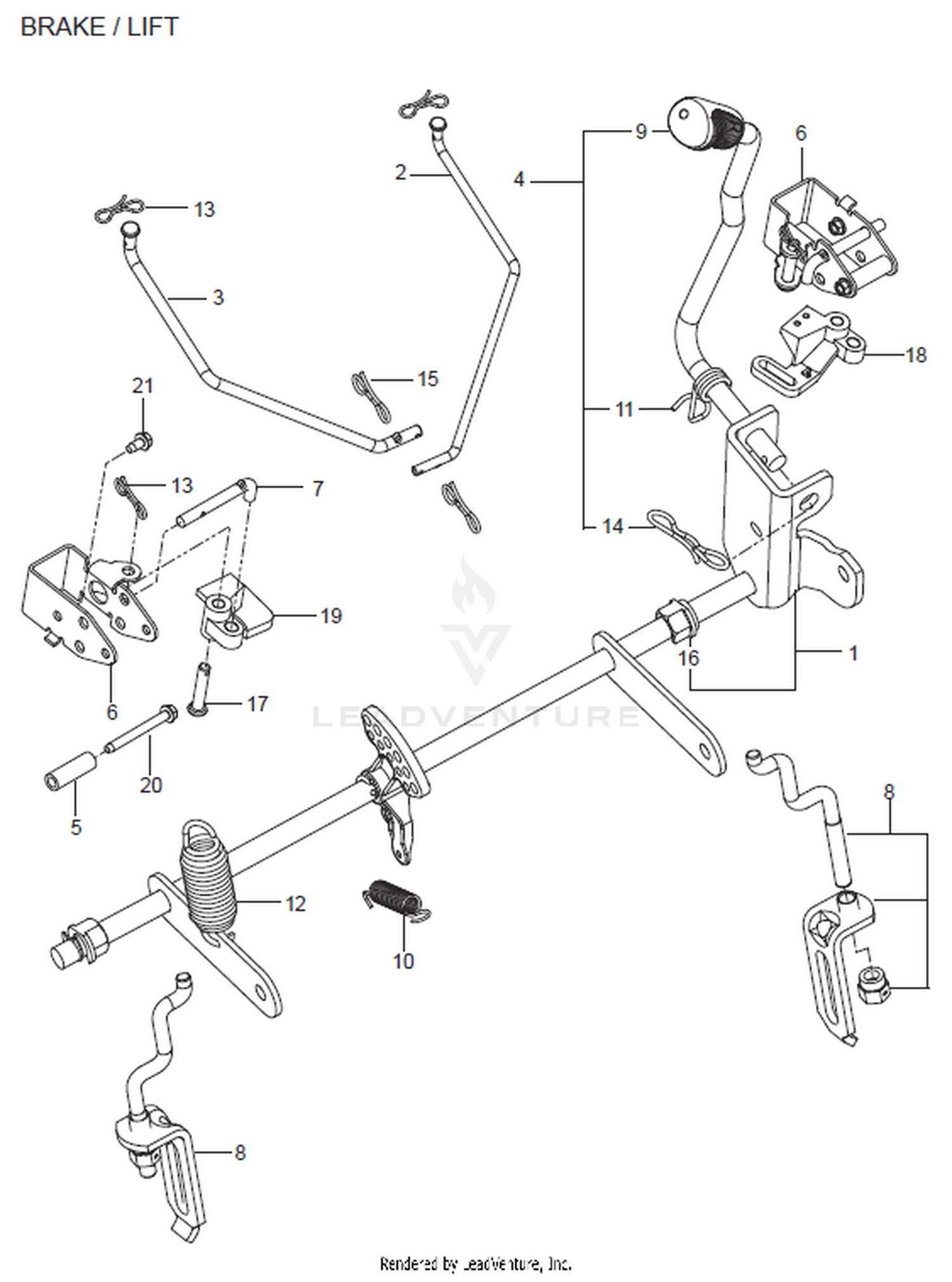

| Ref | Part Number | Description |
|---|
| 1 |
54-0230 |
FIELD BEARING ASM Price: $339.99 |
| 1 |
587623101 |
SHAFT.ASM.RZ.DECK.LIFT.SRV Price: $44.99 |
| 2 |
251-292 |
BEARING-FIELD Price: $113.99 |
| 2 |
586457101 |
LINK.BRAKE.PARK.UPPER.LH Price: $8.99 |
| 3 |
44-8310 |
RING-RETAINING Price: $6.30 |
| 3 |
586457201 |
LINK.BRAKE.PARK.UPPER.RH Price: $8.99 |
| 4 |
44-8360 |
FIELD COIL/ROTOR BEARING ASM Price: $552.99 |
| 4 |
587622901 |
LIFT.LEVER.ASM.RZ.SERVICE Price: $11.99 |
| 5 |
44-8370 |
Armature Pulley Assembly (Incl. Ref. #3, 6, 7 8) Price: Call Us |
| 5 |
580486102 |
Spacers This part replaces 580486101. Price: $3.99 |
| 6 |
44-8330 |
SPACER-BEARING, PULLEY Price: $13.17 |
| 6 |
585682102 |
BRACKET.BELLCRANK.PBRAKE X431 Price: $6.99 |
| 7 |
44-8340 |
COLLAR-BEARING Price: $63.58 |
| 7 |
585682001 |
ROD.PUSH.BRAKE Price: $2.99 |
| 8 |
251-312 |
BALL BEARING This part replaces 251-291. Price: $19.88 |
| 8 |
587623001 |
LINK.ASM.RZ.LIFT.SERVICE Price: $9.99 |
| 9 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 9 |
532411555 |
GRIP.HANDLE.LIFT.PVC.BLACK This part replaces 532445060. Price: $7.99 |
| 10 |
547190203 |
BRAKE SPRING This part replaces 586867601. Price: $2.99 |
| 11 |
532196314 |
SPRING.TORSION.LIFT.HANDLE Price: $3.99 |
| 12 |
596482001 |
Springs This part replaces 539118762. Price: $6.99 |
| 13 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 14 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 15 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
| 16 |
510184901 |
PLASTIC NUT Price: $4.99 |
| 17 |
585701401 |
PIN.5.16X1.5 Price: $2.99 |
| 18 |
586457401 |
BELLCRANK.LH Price: $5.99 |
| 19 |
586457501 |
BELLCRANK.RH Price: $5.99 |
| 20 |
586561301 |
SCREW THD;ROLL;1/4-20 X 2.25 Price: $12.99 |
