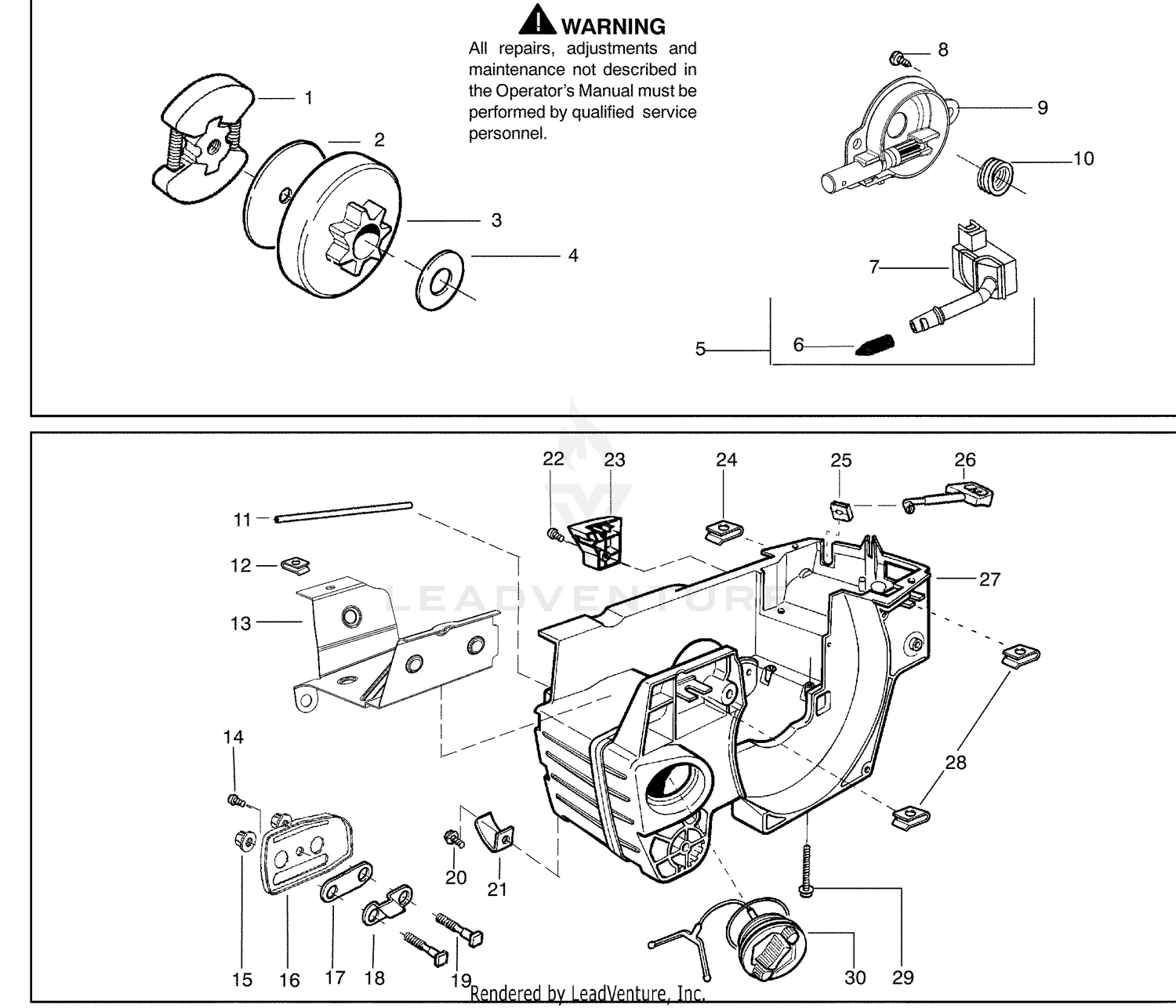

Clutch Drum/Oil Pump and Crankcase
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 22-8330 | PLUG Price: $64.59 |
| 1 | 530014949 | CLUTCH ASSEMBLY Price: $19.99 |
| 2 | 237-42 | O-RING Price: $2.78 |
| 2 | 530015611 | FRICTION DISC,CLUTCH 36/41 Price: $4.99 |
| 3 | 22-8340 | SPRING Price: $19.09 |
| 3 | 530047061 | CLUTCH DRUM ASSY Price: $14.99 |
| 4 | 22-8350 | BALL Price: $12.28 |
| 4 | 530015907 | THRUST WASHER Price: $2.99 |
| 5 | 22-8370 | SEAT-VALVE Price: $88.05 |
| 6 | 22-8360 | PIN Price: $43.02 |
| 6 | 530056533 | SCREEN/FILTER Price: $4.99 |
| 7 | 121-9070 | VALVE ASM This part replaces 43-1730. Price: $458.43 |
| 7 | 545037101 | OIL HOSE Price: $8.99 |
| 8 | 22-8420 | SPOOL Price: $437.22 |
| 8 | 530015896 | SCREW Price: $4.99 |
| 9 | 22-8500 | O-RING Price: $18.87 |
| 9 | 545036801 | PLUNGER & GEAR ASSY This part replaces 530014410. Price: $17.99 |
| 10 | 22-8380 | RETAINER Price: $17.86 |
| 10 | 530029833 | OILER GEAR 36/41 Price: $6.99 |
| 11 | 22-8410 | SPRING Price: $17.61 |
| 11 | 545033501 | OIL TUBE Price: $5.99 |
| 12 | 22-8390 | RETAINER Price: $56.56 |
| 12 | 530055322 | CLIP-U Price: $2.99 |
| 13 | 22-8400 | SPACER Price: $42.41 |
| 13 | 530055174 | HEATSHIELD, LOWER Price: $2.99 |
| 14 | 22-8480 | RING-SNAP Price: $49.87 |
| 15 | 530015917 | BAR NUT Price: $2.99 |
| 16 | 530047855 | BAR PLATE Price: $5.99 |
| 17 | 530019228 | OIL TANK GASKET Price: $4.99 |
| 18 | 530036043 | PLATE,BAR MOUNT Price: $4.99 |
| 19 | 530015877 | BAR BOLT 36/41 Price: $4.99 |
| 20 | 530015878 | SCREW Price: $2.99 |
| 21 | 530029850 | CHAIN CATCHER 36/41 Price: $3.99 |
| 22 | 530015893 | SCREW Price: $4.99 |
| 23 | 530052428 | LIMITER COVER Price: $1.99 |
| 24 | 530015922 | CLIP Price: $2.99 |
| 25 | 530029830 | CHOKE GUIDE 36/41 Price: $3.99 |
| 26 | 530029831 | CHOKE 36/41 Price: $3.99 |
| 27 | 530071991 | KIT ASSY CHASSIS Price: $44.99 |
| 28 | 530015922 | CLIP Price: $2.99 |
| 29 | 530016037 | SCREW M5-0.8X35M TAP Price: $2.99 |
