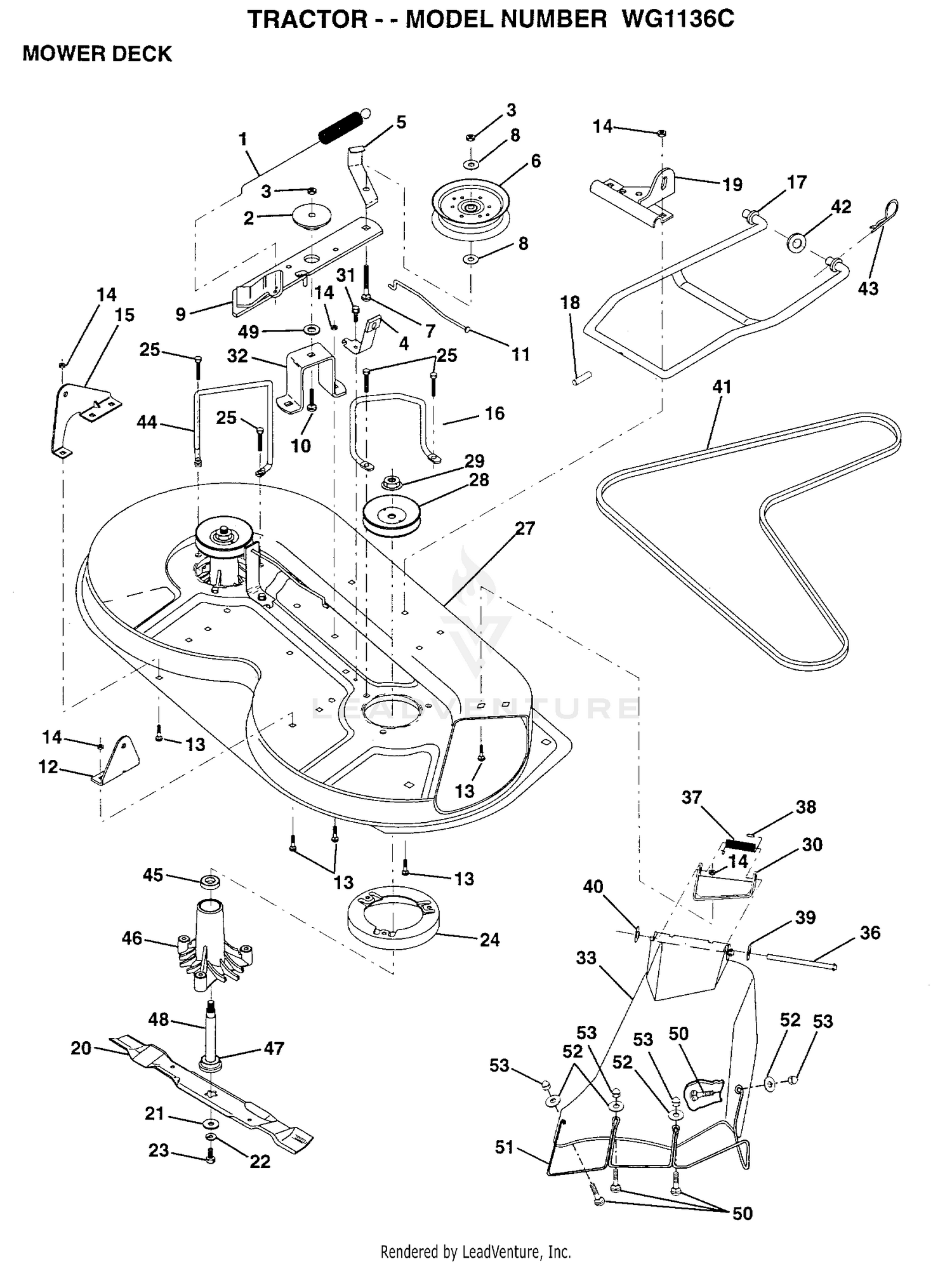

| Ref | Part Number | Description |
|---|
| 1 |
140064 |
SPRING CLUTCH MWR Price: Call Us |
| 1 |
66-6370 |
LIFT ARM ASM Price: $430.43 |
| 2 |
122052X |
SPACER RETAINER Price: Call Us |
| 2 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 3 |
66-7150 |
ARM-PUSH, RH Price: $536.26 |
| 3 |
73680600 |
SUB= 73690600 Price: Call Us |
| 4 |
130840 |
BRAKE ASM Price: Call Us |
| 4 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 5 |
131251 |
IDLER BELT GUIDE Price: Call Us |
| 5 |
93-6696 |
DECAL-WARNING Price: $14.78 |
| 6 |
121316X |
PULLEY IDLER Price: Call Us |
| 6 |
46-8840-01 |
SPRING-LIFT ARM Price: $35.71 |
| 8 |
19131410 |
WASHER Price: Call Us |
| 8 |
5-1754 |
WASHER-FLAT Price: $2.17 |
| 9 |
127744 |
SUB= 140092 Price: Call Us |
| 9 |
3272-33 |
PIN-COTTER Price: $0.54 |
| 10 |
110-9672 |
SCREW-HH Price: $2.24 |
| 10 |
72140610 |
BOLT.3/8-14X1.25 Price: Call Us |
| 11 |
130841 |
BRAKE ROD Price: Call Us |
| 11 |
3-7292 |
PIN-CLEVIS Price: $44.11 |
| 12 |
21-2860-01 |
PUSH ARM BRACKET ASM Price: $154.46 |
| 13 |
32121-84 |
PIN-SPIRAL Price: $1.29 |
| 13 |
72140506 |
BOLT Price: Call Us |
| 14 |
21-2990 |
SHAFT-PIVOT Price: $227.21 |
| 14 |
73680500 |
SUB= 73690500 Price: Call Us |
| 15 |
117-6998 |
NUT-HF This part replaces 110-9671. Price: $1.36 |
| 16 |
21-2960 |
ARM-PUSH, LH Price: $519.38 |
| 17 |
105-9550-01 |
SPRING-TORSION, LH (LIGHT) Price: $217.23 |
| 17 |
128508 |
MOWER LINK STAB Price: Call Us |
| 17 |
21-2900-01 |
SPRING-TORSION, LH Price: $566.83 |
| 19 |
21-2890-01 |
SPRING-TORSION, RH Price: $566.83 |
| 21 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 21 |
28-8070 |
LANYARD Price: $13.85 |
| 22 |
10030600 |
SUB= 10040600 Price: Call Us |
| 22 |
99-1299-03 |
ROPS-2 POST Price: $2,264.78 |
| 23 |
3-1365 |
CHAIN Price: $72.97 |
| 23 |
850857 |
BLADE BOLT Price: Call Us |
| 24 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 24 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 25 |
138776 |
SUB= 157722 Price: Call Us |
| 25 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 26 |
3212-4 |
SCREW-HH Price: $2.73 |
| 27 |
129963 |
WASHER Price: Call Us |
| 27 |
328-12 |
SCREW-HH Price: $9.77 |
| 28 |
153531 |
PULLEY.MAND.36/46 Price: Call Us |
| 28 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 29 |
137266 |
SUB= 139729 Price: Call Us |
| 29 |
3217-12 |
NUT-HEX Price: $3.12 |
| 30 |
136631 |
SUB= 532136631 Price: Call Us |
| 30 |
93-7040-01 |
SUPPORT-REINFORCEMENT Price: $85.37 |
| 31 |
17490508 |
SCREW LT Price: Call Us |
| 31 |
5-3126 |
PIN-LYNCH Price: $0.73 |
| 32 |
72-9390 |
BELT-SEAT Price: $140.77 |
| 33 |
139083 |
SHIELD.DEFL.36TUV Price: Call Us |
| 33 |
93-7644 |
PIN-HITCH, COTTERLESS Price: $9.14 |
| 34 |
24-9510 |
PIN Price: $77.49 |
| 35 |
5-2942 |
SHACKLE Price: $16.99 |
| 36 |
121980X |
HINGE ROD Price: Call Us |
| 36 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 37 |
123713X |
SPRING TORSION Price: Call Us |
| 37 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 38 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 38 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 39 |
19111016 |
WASHER Price: Call Us |
| 40 |
110452X |
NUT PUSH M Price: Call Us |
| 41 |
131264 |
V-BELT.PRIM.78.5. Price: Call Us |
| 41 |
2412-133 |
CLAMP-R Price: $3.19 |
| 42 |
19171616 |
WASHER Price: Call Us |
| 42 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 43 |
110-9673 |
SCREW-HH Price: $2.22 |
| 43 |
3146R |
RETAINER.SPRING Price: Call Us |
| 44 |
140608 |
KEEPER BELT LH Price: Call Us |
| 44 |
93-7650-01 |
LEVER-LOCKING Price: $33.03 |
| 45 |
110485X |
BEARING Price: Call Us |
| 45 |
32121-2 |
PIN-ROLL, SLOTTED Price: $0.25 |
| 46 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 47 |
129895 |
BEARING.BALL Price: Call Us |
| 48 |
137645 |
SUB= 137646 Price: Call Us |
| 49 |
133943 |
HARDENED WASHER Price: Call Us |
| 50 |
71161010 |
SCREW Price: Call Us |
| 51 |
136383 |
GUARD.DFTR.MWR.36 Price: Call Us |
| 52 |
19070718 |
NLA Price: Call Us |
| 53 |
60867 |
ACORN NUT RB Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
