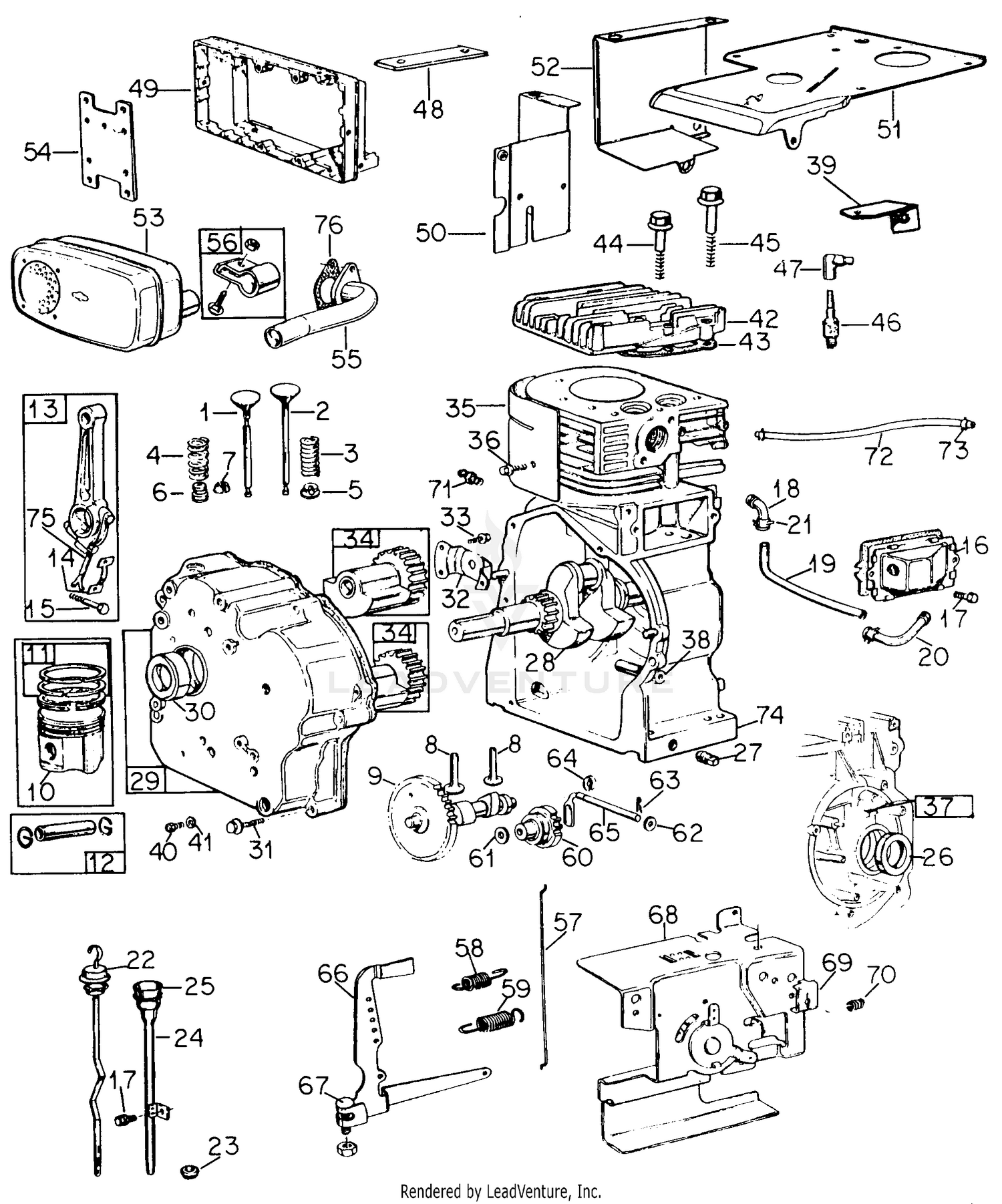

| Ref | Part Number | Description |
|---|
| 1 |
BS-261185 |
VALVE EXHAUST Not Available Price: |
| 2 |
BS-261462 |
VALVE INTAKE Not Available Price: |
| 3 |
BS-65906 |
SPRING Not Available Price: |
| 4 |
BS-26828 |
SPRING Not Available Price: |
| 5 |
BS-690656 |
VALVE RETAINER Not Available This part replaces BS-221596. Price: |
| 6 |
BS-691939 |
VALVE RETAINER Not Available This part replaces BS-292260. Price: |
| 7 |
BS-494553 |
RETAINER-ROTO Not Available This part replaces BS-93630. Price: |
| 8 |
BS-261183 |
TAPPET VALVE Not Available Price: |
| 9 |
BS-212897 |
CAMSHAFT & GEAR Not Available Price: |
| 10 |
BS-391285 |
PISTON ASSY, STANDARD Not Available Price: |
| 11 |
BS-499996 |
PISTON RING SET STD Not Available This part replaces BS-391780. Price: |
| 12 |
BS-299691 |
PIN Not Available Price: |
| 13 |
BS-490348 |
CONNECTING ROD ASSEMBLY Not Available Price: |
| 14 |
BS-222299 |
LOCK Not Available Price: |
| 15 |
BS-92909 |
SCREW CONNECTING ROD Not Available Price: |
| 16 |
BS-392294 |
BREATHER Not Available Price: |
| 17 |
BS-691666 |
BREATHER ASSEMBLY SCREW Not Available This part replaces BS-93394. Price: |
| 18 |
BS-280160 |
Elbow, Breather Price: Call Us |
| 19 |
BS-231105 |
TUBE Not Available Price: |
| 20 |
BS-280159 |
ELBOW Not Available Price: |
| 21 |
IH-210511-R1 |
CLAMP Not Available Price: |
| 22 |
BS-392295 |
DIPPER-STICK, OIL FILL CAP Not Available Price: |
| 23 |
BS-281370S |
Seal-Dipstick Tube This part replaces BS-68838. Price: $6.73 |
| 24 |
IH-76607-C1 |
TUBE Not Available Price: |
| 25 |
IH-76625-C1 |
Seal, Oil Filler Tube, Upper Price: Call Us |
| 26 |
BS-391086S |
Seal-Oil (Magneto Side) This part replaces BS-391086. Price: $7.18 |
| 27 |
BS-691680 |
Oil Drain Plug This part replaces BS-93418. Price: $6.08 |
| 28 |
IH-76557-C1 |
CRANKSHAFT Not Available Price: |
| 29 |
BS-393925 |
COVER ASSY, CRANKCASE Not Available Price: |
| 30 |
BS-291675S |
OIL SEAL Not Available This part replaces BS-291675. Price: |
| 31 |
BS-93585 |
SCREW-SEM-SUMP MOUNTING Not Available Price: |
| 32 |
BS-222407 |
RETAINER Not Available Price: |
| 33 |
BS-691666 |
BREATHER ASSEMBLY SCREW Not Available This part replaces BS-93394. Price: |
| 34 |
BS-491787 |
COUNTERWEIGHT & BEARING Not Available Price: |
| 35 |
IH-76589-C1 |
SHIELD Not Available Price: |
| 36 |
BS-691666 |
BREATHER ASSEMBLY SCREW Not Available This part replaces BS-93394. Price: |
| 37 |
BS-231056 |
Bushing, Governor Crank Price: Call Us |
| 38 |
BS-23513 |
BUSHING Not Available Price: |
| 39 |
IH-78403-C1 |
Bracket, Support Price: Call Us |
| 40 |
BS-93554 |
PLUG-SCREW Not Available Price: |
| 41 |
IH-76623-C1 |
WASHER Not Available Price: |
| 42 |
BS-212119 |
HEAD, CYLINDER Not Available Price: |
| 43 |
BS-271078 |
GASKET, CYLINDER HEAD Not Available Price: |
| 44 |
BS-690912 |
HEX SCREW Not Available This part replaces BS-93113. Price: |
| 45 |
BS-93211 |
SCREW Not Available Price: |
| 46 |
759-3331 |
SPARK PLUG RCJ8 Not Available Price: |
| 47 |
BS-66538S |
Boot-Spark Plug This part replaces BS-66538. Price: $4.77 |
| 48 |
IH-76614-C1 |
Strap, Bracket Price: Call Us |
| 49 |
BS-212235 |
FRAME-SHROUD Not Available Price: |
| 50 |
BS-392290 |
COVER-SIDE Not Available Price: |
| 51 |
BS-222613 |
Hood, Upper Engine Price: Call Us |
| 52 |
BS-222695 |
CYLINDER HEAD COVER Not Available Price: |
| 53 |
BS-498984S |
EXHAUST MUFFLER Not Available This part replaces BS-392101. Price: |
| 54 |
BS-222692 |
MUFFLER BRACKET Not Available Price: |
| 55 |
BS-392903 |
EXHAUST PIPE Not Available Price: |
| 56 |
726-3017 |
CLAMP ASSEMBLY Not Available Price: |
| 57 |
BS-261338 |
LINK Not Available Price: |
| 58 |
BS-792602 |
Spring-Governor This part replaces BS-260871. Price: $1.70 |
| 59 |
BS-261126 |
SPRING, GOVERNOR Not Available Price: |
| 60 |
BS-391737 |
GOVERNOR GEAR Not Available Price: |
| 61 |
BS-691724 |
THRUST WASHER Not Available This part replaces BS-221551. Price: |
| 62 |
IH-76586-C1 |
Washer, Governor Crank Price: Call Us |
| 63 |
BS-93306 |
COTTER PIN Not Available Price: |
| 64 |
BS-93307 |
RETAINER Not Available Price: |
| 65 |
BS-231057 |
CRANK - GOVERNOR Not Available Price: |
| 66 |
BS-392707 |
GOVERNOR LEVER Not Available Price: |
| 67 |
BS-92613 |
BOLT Not Available Price: |
| 68 |
IH-76584-C1 |
PLATE, GOVERNOR CONTROL Not Available Price: |
| 69 |
BS-691024 |
Clamp-Casing This part replaces BS-221535. Price: $6.90 |
| 70 |
BS-26157 |
FRICTION SPRING Not Available Price: |
| 71 |
IH-549881-R1 |
FITTING Not Available Price: |
| 72 |
IH-76578-C1 |
Tube, Fuel Line Price: Call Us |
| 74 |
None |
Crankcase - Not Serviced Separately |
| 75 |
IH-77944-C1 |
SLINGER Not Available Price: |
| 76 |
BS-692236 |
Gasket-Exhaust This part replaces 721-0208. Price: $4.66 |
| 501877601 |
591375401 |
KIT FUEL FILTER This part replaces 501877601. Price: $8.99 |
| 503027502 |
503027502 |
Price: Call Us |
| 503106901 |
503106903 |
AIR CONDUCTOR This part replaces 503106901. Price: $7.99 |
| 503211104 |
586505201 |
NEEDS DESCRIPTION This part replaces 503211104. Price: $1.99 |
| 503230011 |
503230011 |
WASHER 5.3X12 Price: $2.99 |
| 504300040 |
581756120 |
FUEL HOSE STRAIGHT 120 This part replaces 504300040. Price: $7.99 |
| 504302415 |
501768314 |
HOSE This part replaces 504302415. Price: $8.58 |
| 504357201 |
504357201 |
SINTER PLUG Price: $4.99 |
| 506010302 |
503498202 |
TANK This part replaces 506010302. Price: $168.99 |
| 506012901 |
506012901 |
Price: Call Us |
| 506013001 |
538242499 |
HEAT SHIELD This part replaces 506013001. Price: $3.99 |
| 506013101 |
506013101 |
BOLT Price: $6.99 |
| 506015201 |
506015201 |
CHAIN GUIDE Price: $8.99 |
| 506031602 |
506031604 |
CHAIN CATCHER This part replaces 506031602. Price: $8.99 |
