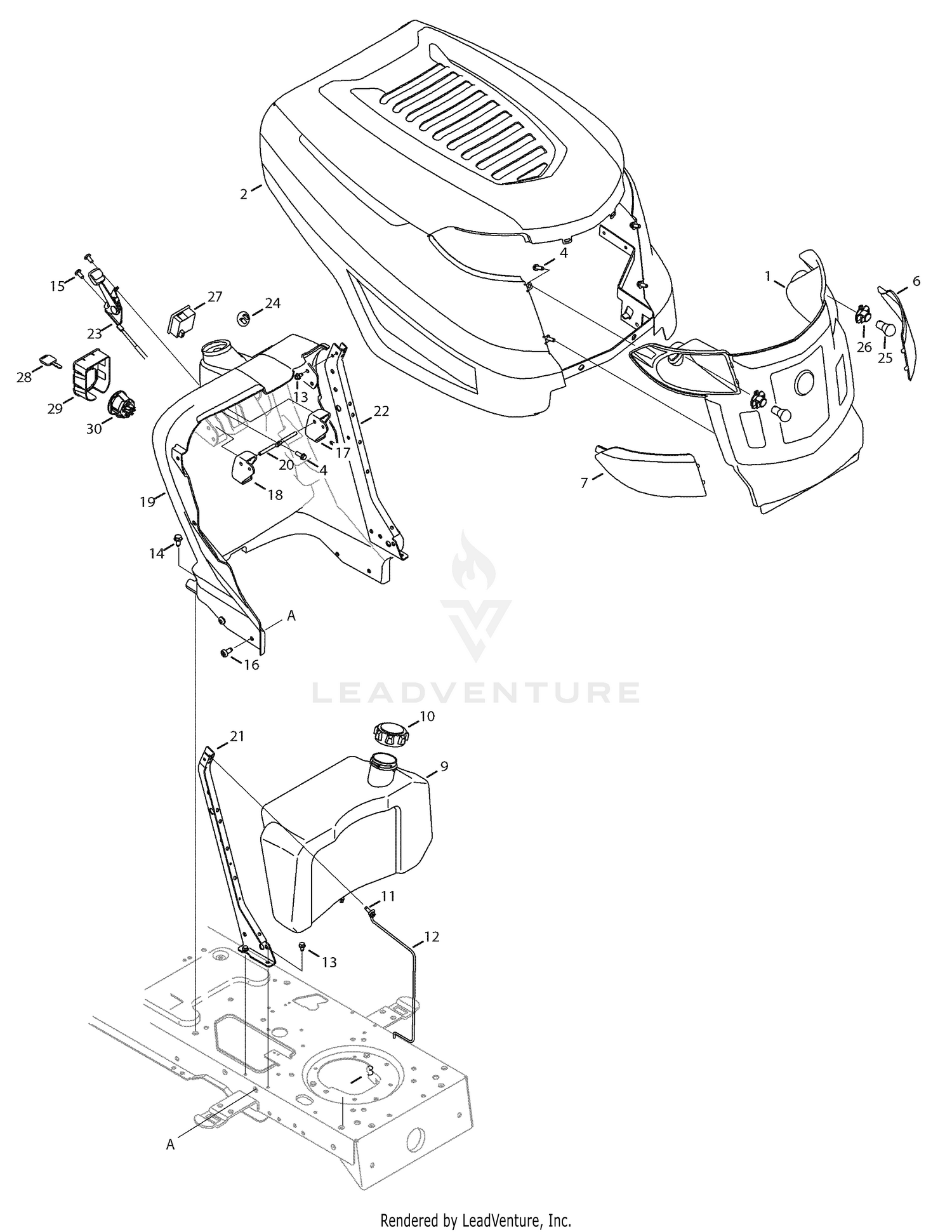

| Ref | Part Number | Description |
|---|
| 1 |
631-04272 |
Grill Assembly Price: $61.79 |
| 2 |
683-04441A |
HOOD ASSEMBLY (K STYLE) This part replaces 683-04441. Price: $253.68 |
| 3 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 4 |
710-0895 |
Self-tapping Screw, 1/4-15 x.75 Price: $5.82 |
| 5 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 8 |
738-04091A |
Shoulder Screw, .43 x .29 This part replaces 738-04091. Price: $3.50 |
| 9 |
751-10609 |
FUEL TANK (2.5 GAL) Not Available Price: |
| 10 |
751-0603B |
TANK CAP This part replaces 751-0603. Price: $20.42 |
| 11 |
710-0642 |
Screw, 1/4-20, 0.750 Price: $4.05 |
| 12 |
747-04161 |
SUPPORT ROD (LH) Not Available Price: |
| 13 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 14 |
710-0607 |
Screw, 5/16-18 x 0.500 Price: $6.06 |
| 15 |
710-1017 |
Screw, 1/4-14 x.625 Price: $7.26 |
| 16 |
710-1611B |
Screw, 5/16-18 x.75 Price: $5.94 |
| 17 |
731-04728 |
BRAKE LEVER Not Available Price: |
| 18 |
731-04729 |
CUISE LEVER Not Available Price: |
| 19 |
731-06166 |
DASH PANEL TROY W/MAN PTO Not Available Price: |
| 20 |
747-1196 |
Brake/Cruise Pivot Rod Price: $13.38 |
| 21 |
783-04285F-0637 |
DASH SUPPORT Not Available This part replaces 783-04285E. Price: |
| 22 |
783-04323F-0637 |
DASH SUPPORT Not Available This part replaces 783-04323F. Price: |
| 23 |
746-04364 |
Throttle/Choke Control Cable Price: $42.43 |
| 24 |
731-1999 |
Choke Plug Price: $8.98 |
| 25 |
925-0963 |
Lamp This part replaces 725-0963. Price: $6.73 |
| 26 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 27 |
925-04156 |
Ammeter Monitor Indicator This part replaces 725-04156. Price: $25.99 |
| 28 |
925-1745A |
IGNITION KEYS This part replaces 725-1745. Price: $15.91 |
| 29 |
731-05241A |
Switch Housing Price: $19.12 |
