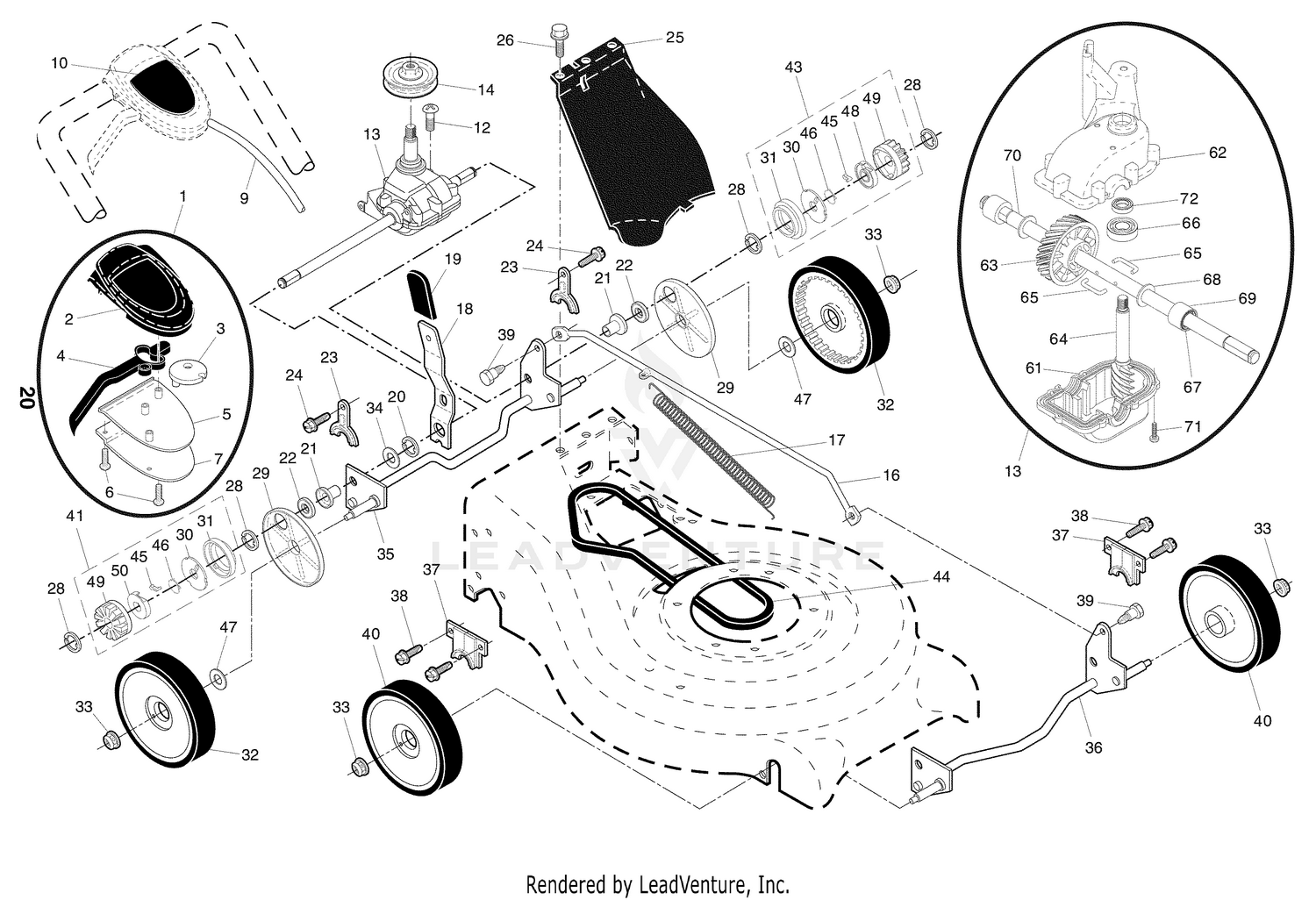

| Ref | Part Number | Description |
|---|
| 1 |
532402790 |
CONTROL.DR.QE.GRY.RGD.BLUE.4PT Price: $84.99 |
| 1 |
94-3123 |
CAPSCREW Price: $0.96 |
| 2 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195761. Price: $29.99 |
| 2 |
94-3117 |
DISCONTINUED Price: Call Us |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 3 |
94-3116 |
DISCONTINUED Price: Call Us |
| 4 |
532425583 |
LEVER.SHORT.BLACK.EZ.WALK This part replaces 532190039. Price: $14.99 |
| 4 |
74-7600 |
PLUG (BALL) Price: $6.93 |
| 5 |
532414555 |
KIT.CONTROL.DR.CASE.HALVES.GRY This part replaces 532195762. Price: $29.99 |
| 5 |
94-3113 |
DISCONTINUED Price: Call Us |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 6 |
76-5130 |
STUD Price: $2.11 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL Price: $4.99 |
| 7 |
74-8900 |
WASHER-FLAT Price: $2.29 |
| 8 |
94-3115 |
NUT Price: $1.30 |
| 9 |
532196002 |
CABLE.ASM.EZ.WALK Price: $44.99 |
| 9 |
74-6570 |
CUP-VALVE SPRING, LOWER Price: $3.36 |
| 10 |
532189378 |
DECAL, DRIVE Price: $29.99 |
| 10 |
74-6560 |
SPRING-VALVE Price: $14.26 |
| 11 |
74-6550 |
CUP Price: $4.84 |
| 12 |
532187653 |
SCREW Price: $4.99 |
| 12 |
74-7240 |
COLLAR-SPLIT Price: $5.39 |
| 13 |
74-6580 |
INSERT-VALVE (1.65MM) Price: $44.94 |
| 13 |
74-6720 |
INSERT-VALVE (2.400MM) Price: $9.73 |
| 13 |
74-6980 |
INSERT-VALVE (3.050MM) Price: $9.31 |
| 14 |
532193443 |
PULLEY.1.PIECE Price: $13.99 |
| 14 |
74-6540 |
TAPPET-VALVE Price: $41.87 |
| 15 |
74-7570 |
LIFTING HOOK This part replaces 94-3135. Price: $9.76 |
| 16 |
532407147 |
ROD.CONNECTING.SPT.BLACK Price: $22.99 |
| 16 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 17 |
532409616 |
SPRING EXTENSION This part replaces 532404942. Price: $5.99 |
| 17 |
74-8130 |
SCREW - HEX HD This part replaces 76-5440. Price: $1.73 |
| 18 |
532418835 |
SPRING.SELECTOR.SPT.21.BZP This part replaces 532196162. Price: $5.99 |
| 18 |
74-7630 |
GASKET-COVER, VALVE Price: $30.06 |
| 19 |
532189808 |
KNOB.S/P.RWGD.EXT.ERGO.GREY This part replaces 532190622. Price: $2.99 |
| 19 |
74-7640 |
COVER-VALVE Price: $171.54 |
| 20 |
74-7650 |
WASHER-FLAT Price: $1.03 |
| 20 |
812000022 |
E-RING Price: $3.99 |
| 21 |
532169920 |
BEARING SUPPORT.ASM This part replaces 532163365. Price: $14.99 |
| 21 |
94-3125 |
DISCONTINUED Price: Call Us |
| 22 |
532169911 |
BEARING, BALL Price: $11.99 |
| 22 |
94-3124 |
SCREW-HH Price: $1.30 |
| 23 |
532161118 |
RETAINER DRIVE ASM. STMP. This part replaces 532164555. Price: $3.99 |
| 23 |
94-3136 |
BRACKET-LIFTING Price: $37.89 |
| 24 |
532057808 |
SCREW Price: $1.99 |
| 24 |
94-3138 |
SCREW-HH Price: $2.80 |
| 25 |
532400783 |
COVER.DRIVE.21.RWGD.MO Price: $9.99 |
| 25 |
98-3840 |
BRACKET This part replaces 94-3137. Price: $9.35 |
| 26 |
532750634 |
SCREW Price: $2.99 |
| 26 |
94-3139 |
SCREW Price: $14.51 |
| 27 |
94-3174 |
WASHER-REPAIR Price: $10.07 |
| 28 |
74-7270 |
WASHER-FLAT Price: $3.60 |
| 28 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 29 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 29 |
74-7260 |
BOLT-HEAD Price: $17.07 |
| 30 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 30 |
94-3197 |
O-RING Price: $2.63 |
| 31 |
532184172 |
SEAL.PINION Price: $5.99 |
| 31 |
94-3196 |
DISCONTINUED Price: Call Us |
| 32 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 32 |
94-3118 |
DISCONTINUED Price: Call Us |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 33 |
74-7840 |
PLUG Price: $2.02 |
| 34 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 34 |
532851226 |
WASHER Price: $3.99 |
| 35 |
532403102 |
SHAFT.ASM.REAR.TORQUE.BZP.8 This part replaces 532410922. Price: $29.99 |
| 35 |
94-3198 |
SCREW-HHF Price: $2.62 |
| 36 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 36 |
532407175 |
SHAFT.ASM.FRONT.TORQUE.BZP. This part replaces 532410933. Price: $22.99 |
| 37 |
532161463 |
RETAINER.FRONT.SHAFT Price: $9.99 |
| 37 |
94-3200 |
DISCONTINUED Price: Call Us |
| 38 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 38 |
532163409 |
SCREW Price: $3.99 |
| 39 |
532407059 |
SHOULDER BOLT SEMI GIMLET PT. Price: $3.99 |
| 39 |
94-3199 |
PIPE-BY PASS Price: $195.25 |
| 40 |
532401273 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BB1 This part replaces 532410831. Price: $29.99 |
| 40 |
98-9971 |
HOSE - BY PASS Price: $76.81 |
| 41 |
532414860 |
KIT.PINION.ASM This part replaces 532188330. Price: $76.99 |
| 41 |
74-7400 |
TUBE Price: $46.54 |
| 42 |
74-7840 |
PLUG Price: $2.02 |
| 43 |
532414860 |
KIT.PINION.ASM This part replaces 532188331. Price: $76.99 |
| 43 |
94-3122 |
GASKET Price: $5.17 |
| 44 |
532183688 |
BELT.DRIVE.EZ.WALK.HI-VAC Price: $13.99 |
| 44 |
94-3121 |
PLUG Price: $12.11 |
| 45 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 45 |
74-7420 |
BALL Price: $1.11 |
| 46 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 46 |
74-7430 |
CHAMBER-TURBULENCE Price: $119.14 |
| 47 |
532067725 |
WASHER FLUT Price: $5.99 |
| 47 |
92-7792 |
GUIDE-VALVE (14.29 MM) Price: $25.96 |
| 48 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 48 |
74-7450 |
DISCONTINUED Price: Call Us |
| 49 |
532175103 |
GEAR, PINION Price: $10.99 |
| 49 |
74-7480 |
VALVE-INTAKE Price: $55.79 |
| 50 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 50 |
92-7794 |
VALVE-EXHAUST Price: $72.59 |
| 51 |
92-7795 |
SEAT-VALVE Price: $56.11 |
| 52 |
92-7791 |
VALVE-SEAL, STEM Price: $9.11 |
| 53 |
94-8132 |
GASKET-HEAD, 1.48 Price: $239.46 |
| 54 |
94-3120 |
BRACKET Price: $216.10 |
| 61 |
532187530 |
CASE, LOWER Price: $10.99 |
| 62 |
532187531 |
CASE, UPPER Price: $22.99 |
| 63 |
532187532 |
GEAR.24.TOOTH.WALK.MOWER Price: $11.99 |
| 64 |
532187533 |
SHAFT INPUT Price: $24.99 |
| 65 |
532183505 |
WIRE, FORMED (15966) Price: $5.99 |
| 66 |
532183506 |
BEARING Price: $5.99 |
| 67 |
532183508 |
SEAL.OUTPUT.SHAFT Price: $9.99 |
| 68 |
532183509 |
WASHER Price: $3.99 |
| 69 |
532183511 |
BUSHING Price: $4.99 |
| 70 |
532191249 |
RP.SHAFT.OUTPUT.RGD.VS/EZ Price: $54.99 |
| 71 |
532183513 |
SCREW Price: $3.99 |
