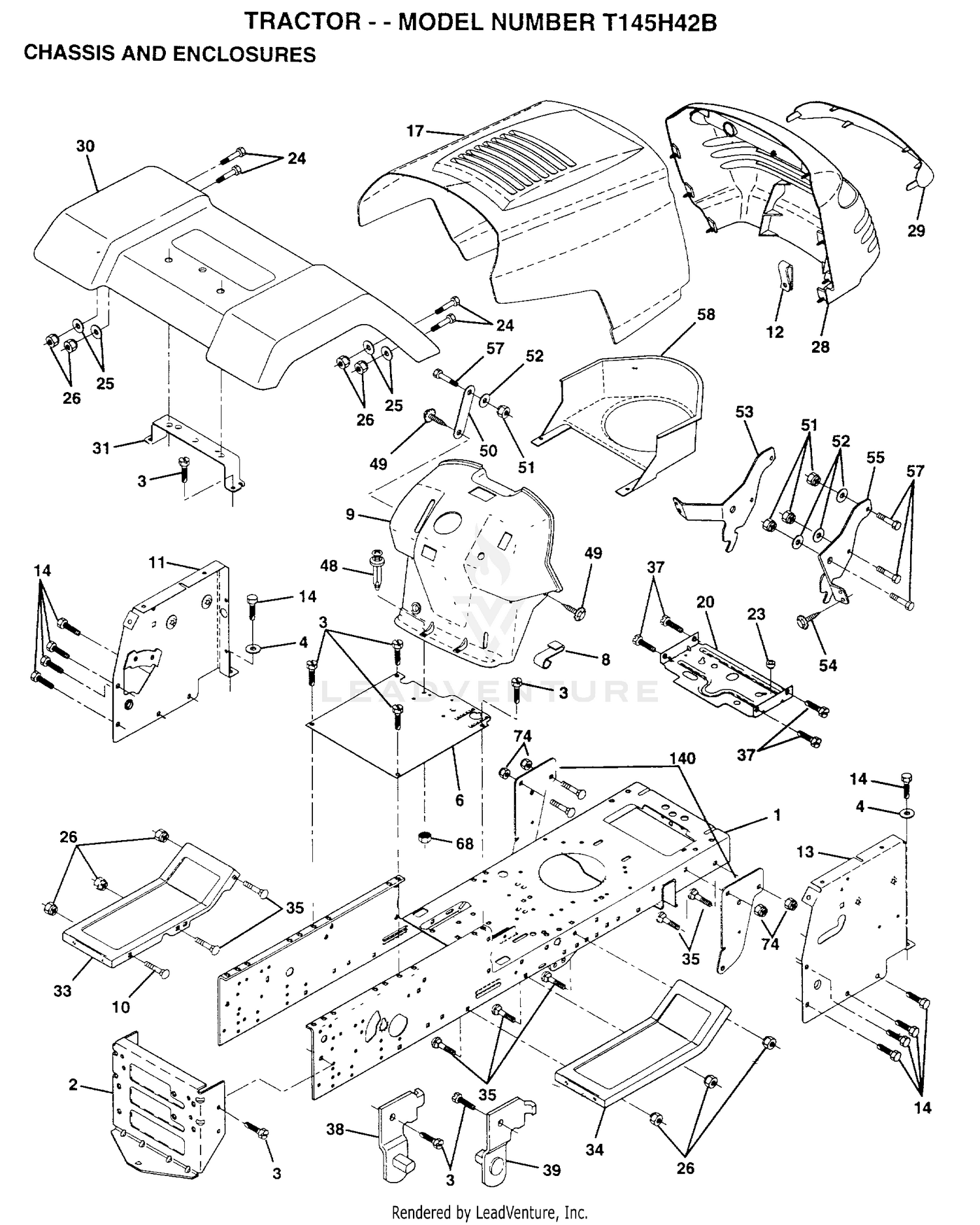

| Ref | Part Number | Description |
|---|
| 1 |
151169 |
CHASSIS WLDMT 11G Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 6 |
145206 |
SUB= 145206X431 Price: Call Us |
| 9 |
140072 |
SUB= 532142465 Price: Call Us |
| 010 |
112-8417 |
GEARCASE ASM This part replaces 100-9161. Price: $1,717.33 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 11 |
146965 |
PANEL.DASH.LH. Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
146959 |
PANEL.DASH.RH Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 17 |
139394X550 |
SUB= 159639X550 Price: Call Us |
| 020 |
107-0108 |
PLUG This part replaces 98-7546. Price: $2.84 |
| 20 |
145210 |
PLATE.MTG.BTRY.TK Price: Call Us |
| 23 |
124028X |
SUB= 532124028 Price: Call Us |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131212 |
WASHER T Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
140141 |
SUB= 157373 Price: Call Us |
| 29 |
140273 |
LENS GRILLE Price: Call Us |
| 030 |
98-7547 |
O-RING Price: $0.92 |
| 30 |
140001X550 |
FENDER PNT Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
145244X550 |
FOOTREST.LH.LT/GT Price: Call Us |
| 34 |
145243X550 |
FOOTREST.RH.LT/GT Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 040 |
98-7548 |
O-RING Price: $1.09 |
| 48 |
138096 |
RIVET.PUSH.PLATE Price: Call Us |
| 49 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 050 |
98-7549 |
O-RING Price: $1.50 |
| 50 |
142779 |
BRACE SUPT DASH Price: Call Us |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
17030814 |
SUB= 91817030814 Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 060 |
98-7550 |
PIN-SPRING, START Price: $7.65 |
| 68 |
73510400 |
NUT Price: Call Us |
| 070 |
98-7504 |
PIN-STRAIGHT Price: $0.72 |
| 74 |
73680600 |
SUB= 73690600 Price: Call Us |
| 080 |
98-7552 |
PACKING-CASE, GEAR Price: $44.07 |
| 090 |
98-7553 |
BOLT Price: $0.73 |
| 100 |
99-8336 |
BOLT Price: $3.41 |
| 110 |
98-7555 |
BOLT Price: $4.93 |
| 120 |
98-7556 |
BOLT Price: $2.07 |
| 130 |
98-7557 |
BOLT Price: $3.62 |
| 140 |
159556 |
BRACKET CHASSIS FRONT 7 GA. Price: Call Us |
| 140 |
98-7558 |
BOLT Price: $1.60 |
| 150 |
3253-4 |
WASHER-LOCK This part replaces 99-8339. Price: $0.25 |
| 160 |
98-7536 |
WASHER-PLAIN Price: $0.28 |
| 190 |
98-7563 |
SPRING Price: $2.74 |
| 200 |
98-7564 |
SEAT-VALVE Price: $9.15 |
| 210 |
98-7565 |
BALL Price: $0.33 |
| 220 |
98-7566 |
FLANGE-RETURN, WATER Price: $59.56 |
| 230 |
115-8521 |
GASKET-FLANGE, RETURN This part replaces 98-7567. Price: $2.63 |
| 240 |
98-7568 |
BOLT Price: $0.84 |
| 250 |
98-7569 |
COVER Price: $6.40 |
| 260 |
98-7570 |
GASKET-METER, HOUR Price: $12.56 |
| 270 |
98-7571 |
STUD Price: $2.00 |
| 280 |
98-7572 |
NUT Price: $0.32 |
| 290 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 300 |
100-9162 |
FLANGE-FILTER, OIL Price: $27.60 |
| 310 |
100-9163 |
GASKET Price: $3.22 |
| 320 |
98-7571 |
STUD Price: $2.00 |
| 330 |
100-9164 |
STUD Price: $1.45 |
| 340 |
100-9165 |
COLLAR Price: $6.97 |
| 350 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 360 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 370 |
98-7572 |
NUT Price: $0.32 |
| 380 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25 |
| 5479J |
PLUG |
BUTTON T Price: Call Us 5479J |
