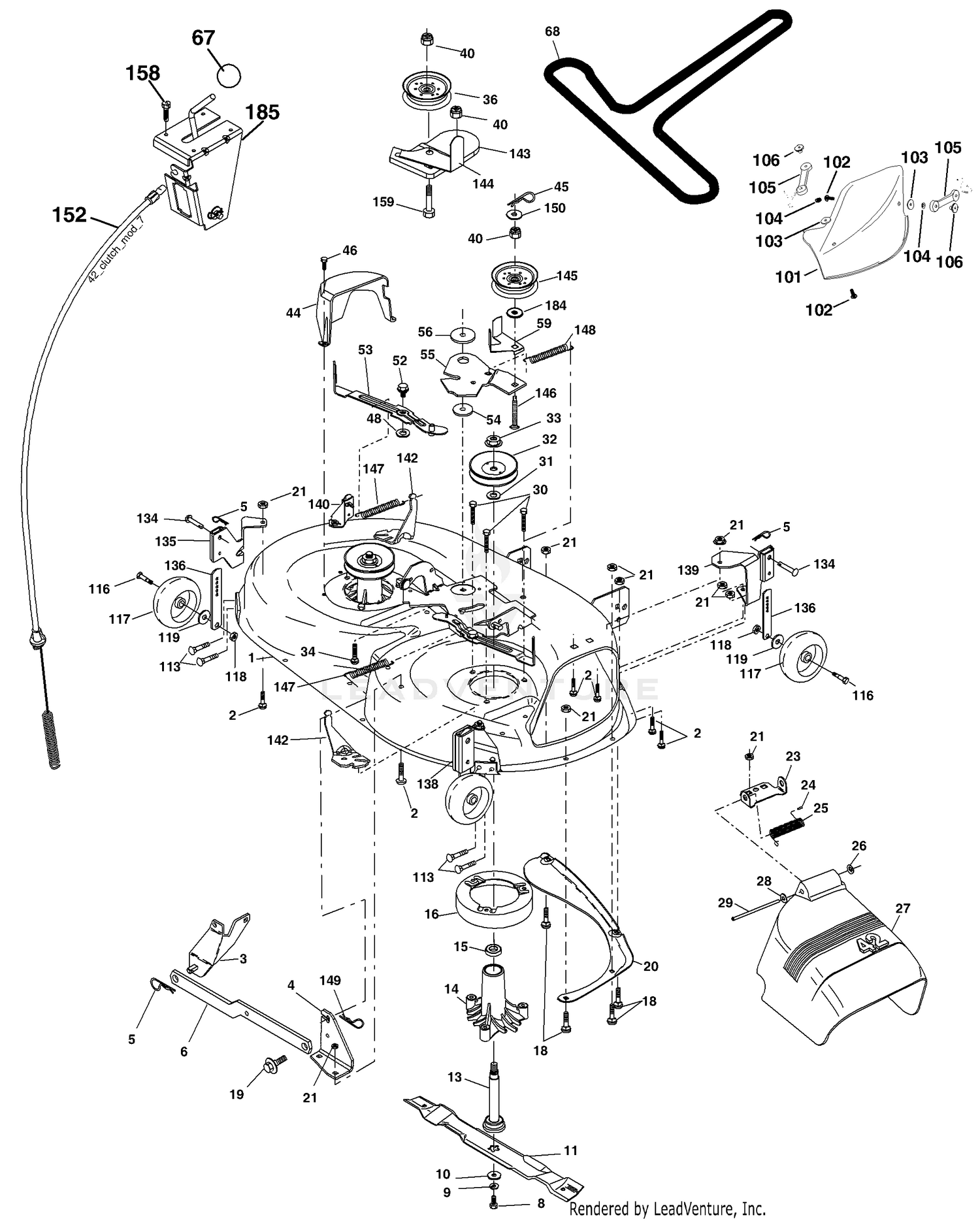

| Ref | Part Number | Description |
|---|
| 1 |
100-3393-03 |
PLATE-LEVER, LIFT Price: $47.26 |
| 1 |
182032X421 |
Mower Deck Assembly, 42" Price: Call Us |
| 2 |
106-0392 |
DECAL-PANEL, DECK LIFT Price: $37.89 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
3290-133 |
SCREW Price: $1.19 |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 7 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 8 |
233-66 |
DISCONTINUED Price: Call Us |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
43-6280 |
DISCONTINUED Price: Call Us |
| 11 |
43-6420 |
BEZEL Price: $57.54 |
| 12 |
106-0391 |
DECAL-PANEL, CONTROL Price: $52.30 |
| 13 |
106-0486-03 |
PLATE-CONTROL Price: $26.51 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
108-8001 |
DECAL-FUSE Price: $9.79 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
69-9740 |
SWITCH Price: $125.46 |
| 16 |
107-2186 |
HARNESS-WIRE Price: $1,892.38 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
72-9760 |
SWITCH Price: $179.11 |
| 18 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
3290-392 |
SCREW-SHH Price: $0.53 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
69-9730 |
SWITCH-PTO Price: $267.65 |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
69-7040 |
HOLDER-CUP Price: $57.78 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
321-3 |
SCREW-HH Price: $0.28 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 28 |
71-2430-03 |
REAR PLATE ASM Price: $54.89 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 29 |
71-4130 |
SUPPORT-CONTROL Price: $347.75 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 30 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 33 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 34 |
92-8661 |
TAB Price: $4.04 |
| 35 |
3229-8 |
SCREW-CARR Price: $2.99 |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 37 |
80-9330 |
AUDIO ALARM ASM Price: $137.61 |
| 38 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 39 |
108-8002 |
DECAL-FUSE Price: $9.15 |
| 40 |
69-6260 |
MAGNET Price: $58.32 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 41 |
32105-1 |
SCREW-SHH Price: $3.19 |
| 42 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 43 |
323-4 |
SCREW-HH Price: $1.02 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 44 |
71-4170 |
SWITCH Price: $166.36 |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw, Pan Hd Phillip 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer, Flat Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 113 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765X421 |
Bracket Asm. Whl Ga. R LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 138 |
159763X421 |
Bracket Asm Whl Ga. R RH Price: Call Us |
| 139 |
159767X421 |
Bracket Asm. Whl Ga. F RH Price: Call Us |
| 140 |
159768X421 |
Bracket Asm Whl Ga. F LH Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
