| Ref | Part Number | Description |
|---|
| 1 |
132564 |

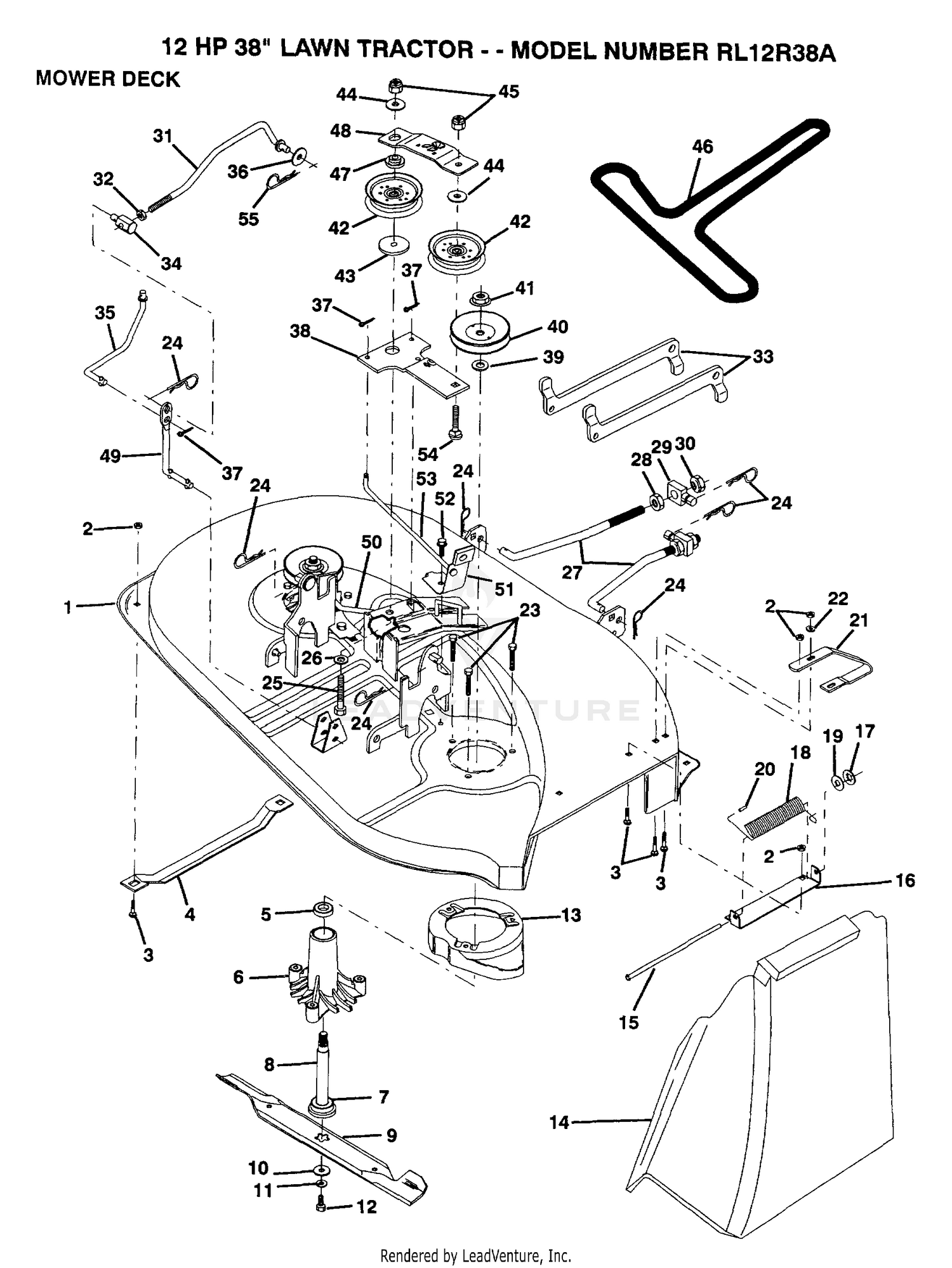

MOWER DECK ASSY Price: Call Us |
| 1 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
73680500 |
SUB= 73690500 Price: Call Us |
| 3 |
325-12 |
SCREW-HH Price: $2.27 |
| 3 |
72140506 |
BOLT Price: Call Us |
| 4 |
3289-25 |
SCREW-SFH Price: $25.39 |
| 4 |
7631J |
RUNNER-LH M Price: Call Us |
| 5 |
110485X |
BEARING Price: Call Us |
| 6 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 6 |
92-2987-03 |
ROPS ASM Price: $3,178.31 |
| 7 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 7 |
129895 |
BEARING.BALL Price: Call Us |
| 8 |
133172 |
SUB= 137646 Price: Call Us |
| 8 |
324-5 |
SCREW-HH Price: $0.54 |
| 9 |
127842 |
SUB= 138497 Price: Call Us |
| 9 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 10 |
129962 |
WASHER BLADE Price: Call Us |
| 10 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 11 |
10030600 |
SUB= 10040600 Price: Call Us |
| 11 |
92-6050-03 |
GUARD ASM Price: $204.68 |
| 12 |
850857 |
BLADE BOLT Price: Call Us |
| 12 |
92-6052-03 |
BUMPER-REAR Price: $95.54 |
| 13 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 13 |
128961 |
SUB= 140329 Price: Call Us |
| 14 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
106735X |
ROD-HINGE T Price: Call Us |
| 16 |
105896X |
SUB= 137607 Price: Call Us |
| 17 |
110452X |
NUT PUSH M Price: Call Us |
| 18 |
106734X |
SUB= 123713X Price: Call Us |
| 19 |
19111016 |
WASHER Price: Call Us |
| 20 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 21 |
128772 |
RUNNER RH Price: Call Us |
| 22 |
19111216 |
WASHER M Price: Call Us |
| 23 |
78158 |
SUB= 17580520 Price: Call Us |
| 24 |
4939M |
SUB= 85902 Price: Call Us |
| 25 |
74600636 |
BOLT Price: Call Us |
| 26 |
19131612 |
WASHER GT Price: Call Us |
| 27 |
132256 |
SEAL.COVER.BAGGER Price: Call Us |
| 28 |
73350800 |
NUT Price: Call Us |
| 29 |
130171 |
TRUNION Price: Call Us |
| 30 |
73800800 |
NUT.LK.W/WSH.1/2. Price: Call Us |
| 31 |
132553 |
CLUTCH ROD PRI Price: Call Us |
| 32 |
73350600 |
NUT Price: Call Us |
| 33 |
132559 |
SUSP ARM REAR Price: Call Us |
| 34 |
133604 |
TRUNNION Price: Call Us |
| 35 |
132554 |
CLUTCH ROD SEC Price: Call Us |
| 36 |
19131316 |
WASHER Price: Call Us |
| 37 |
76020312 |
SUB= 3145 Price: Call Us |
| 38 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 39 |
129963 |
WASHER Price: Call Us |
| 40 |
129206 |
SUB= 153532 Price: Call Us |
| 41 |
73050900 |
SUB= 139729 Price: Call Us |
| 42 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 43 |
122052X |
SPACER RETAINER Price: Call Us |
| 44 |
19131612 |
WASHER GT Price: Call Us |
| 45 |
73680600 |
SUB= 73690600 Price: Call Us |
| 46 |
131290 |
BELT-V.88.12.MW Price: Call Us |
| 47 |
133502 |
RETAINER SPACER Price: Call Us |
| 48 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 49 |
133551 |
PIVOT ROD Price: Call Us |
| 50 |
131289 |
BRAKE ROD LH Price: Call Us |
| 51 |
130840 |
BRAKE ASM Price: Call Us |
| 52 |
17490512 |
SCREW Price: Call Us |
| 53 |
131288 |
BRAKE ROD RH Price: Call Us |
| 54 |
72110614 |
BOLT Price: Call Us |
| 55 |
4497H |
RETAINER M Price: Call Us |
