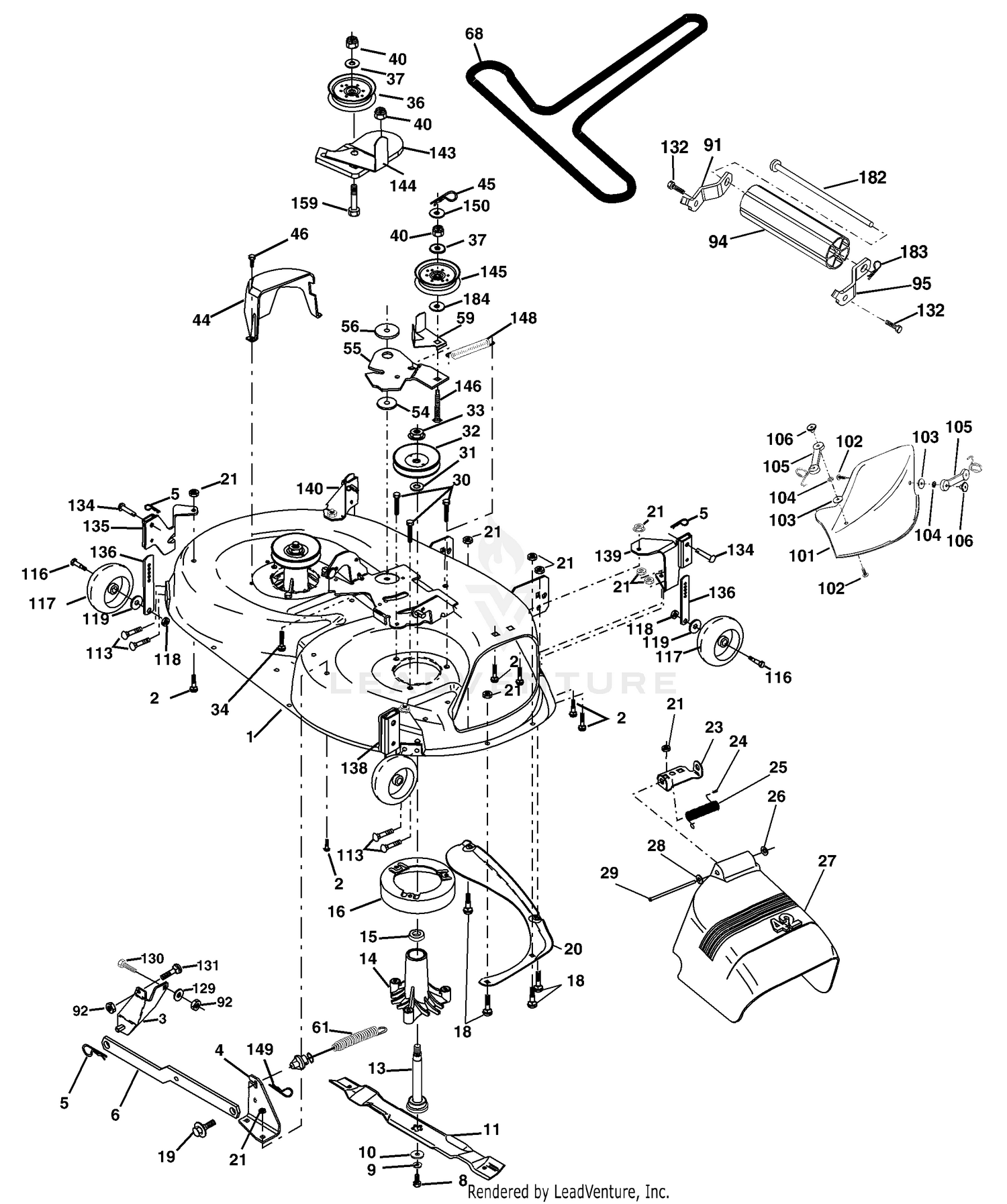

| Ref | Part Number | Description |
|---|
| 1 |
182032X421 |
Mower Deck Assembly, 42" Price: Call Us |
| 1 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
76-9460-03 |
DISCONTINUED Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
77-3780 |
PIN ASM-LYNCH Price: $15.06 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 7 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 8 |
76-9930 |
FOAM-CENTER Price: $7.40 |
| 8 |
850857 |
Bolt 3/8-24 x 25 Grade 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 10 |
86-2860-03 |
COVER-BELT, UPPER Price: $16.75 |
| 11 |
82-4900 |
FOAM-SEAT, REAR Price: $71.75 |
| 12 |
76-9440 |
ROD-PROP, SEAT Price: $65.18 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
240-5 |
GROMMET Price: $13.66 |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 18 |
72140506 |
Bolt, Carriage 5/16-18 x 3/4 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
32128-33 |
NUT-HF Price: $0.25 |
| 21 |
70-1480 |
RELAY Price: $105.19 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
2412-74 |
R-CLAMP Price: $2.37 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
37-2690 |
CAPACITOR Price: $155.98 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
237-136 |
GROMMET Price: $3.52 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
76-9480 |
SLEEVE-PIVOT, SEAT Price: $4.64 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 28 |
325-9 |
SCREW-HH Price: $1.87 |
| 29 |
116749 |
HORN This part replaces 48-4590. Price: $130.99 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
173984 |
Screw Thdrol Washer Head Price: Call Us |
| 30 |
74-8910 |
DISCONTINUED Price: Call Us |
| 31 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Flange Price: Call Us |
| 34 |
72110614 |
Bolt Price: Call Us |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: Call Us |
| 40 |
73680600 |
Nut Price: Call Us |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 61 |
174882 |
Spring Ext. Elect Clutch Price: Call Us |
| 91 |
180532 |
Bracket Asm Noseroller LH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex W/Ins 3/8-16unc Price: Call Us |
| 94 |
132264 |
Roller Nose 38 & 42 Price: Call Us |
| 95 |
180533 |
Bracket Asm Noseroller RH Price: Call Us |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw Pan HD Phillip 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer, Flat Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 113 |
17060512 |
Screw Tapping 5/16 - 18 x 3/4 Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13-16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin Hex 3/8-16unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt RDHD 3/8-16unc x 1 Price: Call Us |
| 132 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 134 |
156941 |
Pin Head Pivet Price: Call Us |
| 135 |
159765X421 |
Brkt Asm Whl Ga. R.LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 137 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 138 |
159763X421 |
Brkt Asm Whl Ga. R. RH Price: Call Us |
| 139 |
159767X421 |
Brkt Asm Whl Ga. F. RH Price: Call Us |
| 140 |
159768X421 |
Brkt Asm Whl Ga. F. LH Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 UNC x 1-3/4 Price: Call Us |
| 182 |
179126 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
