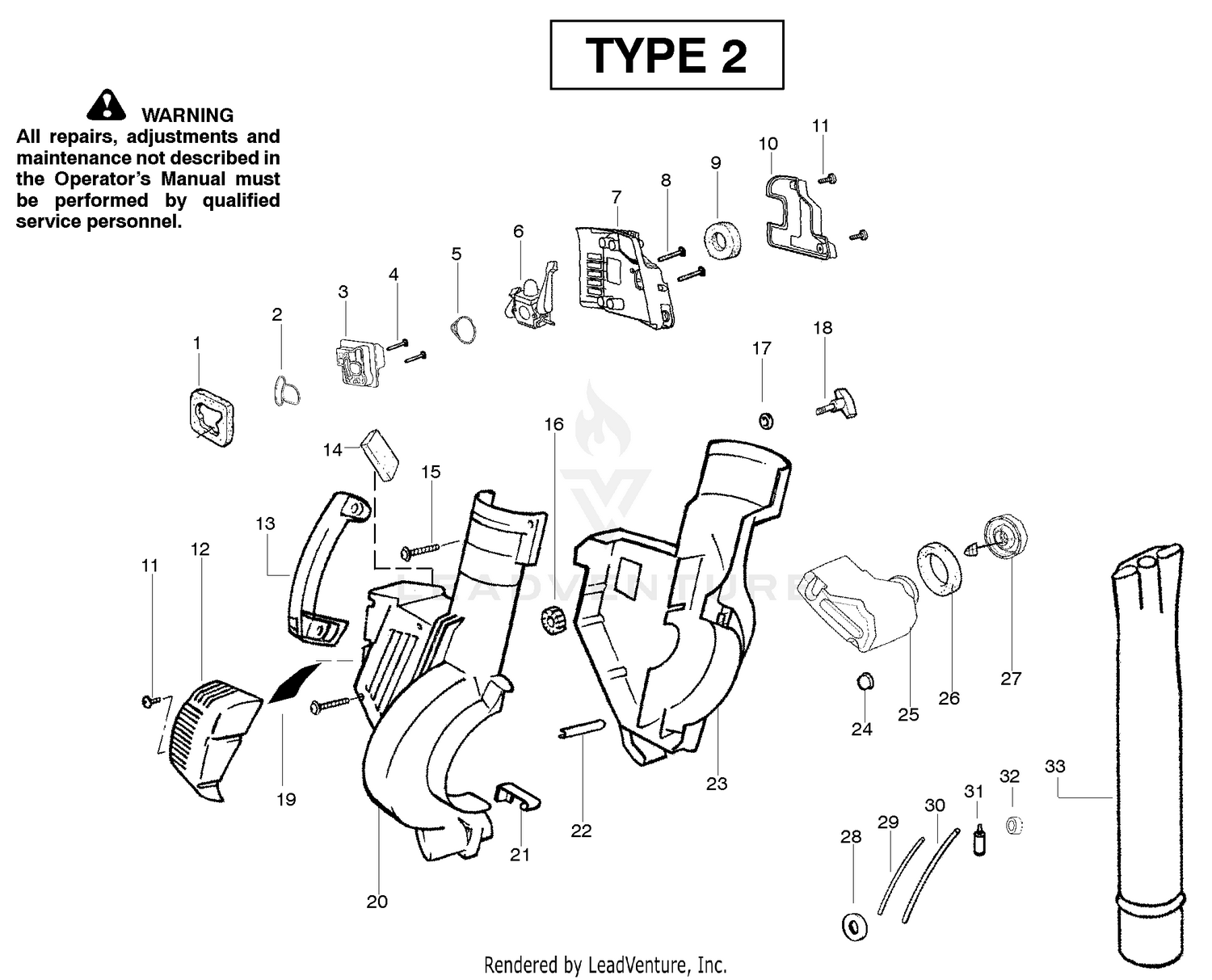

| Ref | Part Number | Description |
|---|
| 1 |
530071459 |
Air Dam (kit) Price: $4.99 |
| 2 |
530071458 |
Gasket-Adapter (kit) Price: $5.99 |
| 3 |
530035561 |
Carburetor Adaptor Price: $11.99 |
| 4 |
530016441 |
Screw Price: $1.99 |
| 5 |
530071458 |
Gasket-Carburetor (kit) Price: $5.99 |
| 6 |
530071775 |
Kit-Carb Ass’y. Walbro-(WT-606) This part replaces 530071632. Price: $44.99 |
| 7 |
530056629 |
Air Box Price: $5.99 |
| 8 |
530015849 |
Screw-Carb. Price: $1.99 |
| 9 |
530049383 |
Filter-Air Price: $1.99 |
| 10 |
530056581 |
Cover-Air Filter Price: $3.99 |
| 11 |
530016349 |
Screw Price: $1.99 |
| 12 |
545085001 |
Guard-Muffler This part replaces 530056641. Price: $11.99 |
| 13 |
530095469 |
Handle Price: $7.99 |
| 14 |
530071459 |
Foam - 71.12mm (kit) Price: $4.99 |
| 15 |
530015886 |
Screw Price: $1.99 |
| 16 |
530049323 |
Isolator Price: $2.99 |
| 17 |
530015197 |
Nut Price: $1.99 |
| 18 |
530016322 |
Knob-Tube Clamp Price: $1.99 |
| 19 |
530071458 |
Reflector-Heat (kit) Price: $5.99 |
| 21 |
530402044 |
Spring-Cover Latch Price: $3.99 |
| 22 |
530049617 |
Guide-Starter Rope Price: $1.99 |
| 23 |
545018106 |
Housing-Left Price: $22.99 |
| 24 |
530036792 |
Isolator-Crankcase Price: $4.99 |
| 25 |
545058007 |
Assy-Fuel Tank This part replaces 530049491. Price: $22.99 |
| 26 |
530049527 |
Gasket-Fuel Tank Price: $1.99 |
| 27 |
530057973 |
Assy-Fuel Cap This part replaces 530049386. Price: $7.99 |
| 28 |
530049656 |
Grommet-Shroud Price: $1.99 |
| 29 |
530069247 |
Kit-Line Carb/Purge Price: $3.69 |
| 30 |
530069216 |
Kit-Line Tank/Purge Price: $3.99 |
| 31 |
530095646 |
Assy-Fuel Pick-up Price: $2.69 |
| 32 |
530071459 |
Grommet-Fuel line (kit) Price: $4.99 |
| 33 |
530095593 |
Tube-Blower Price: $11.99 |
