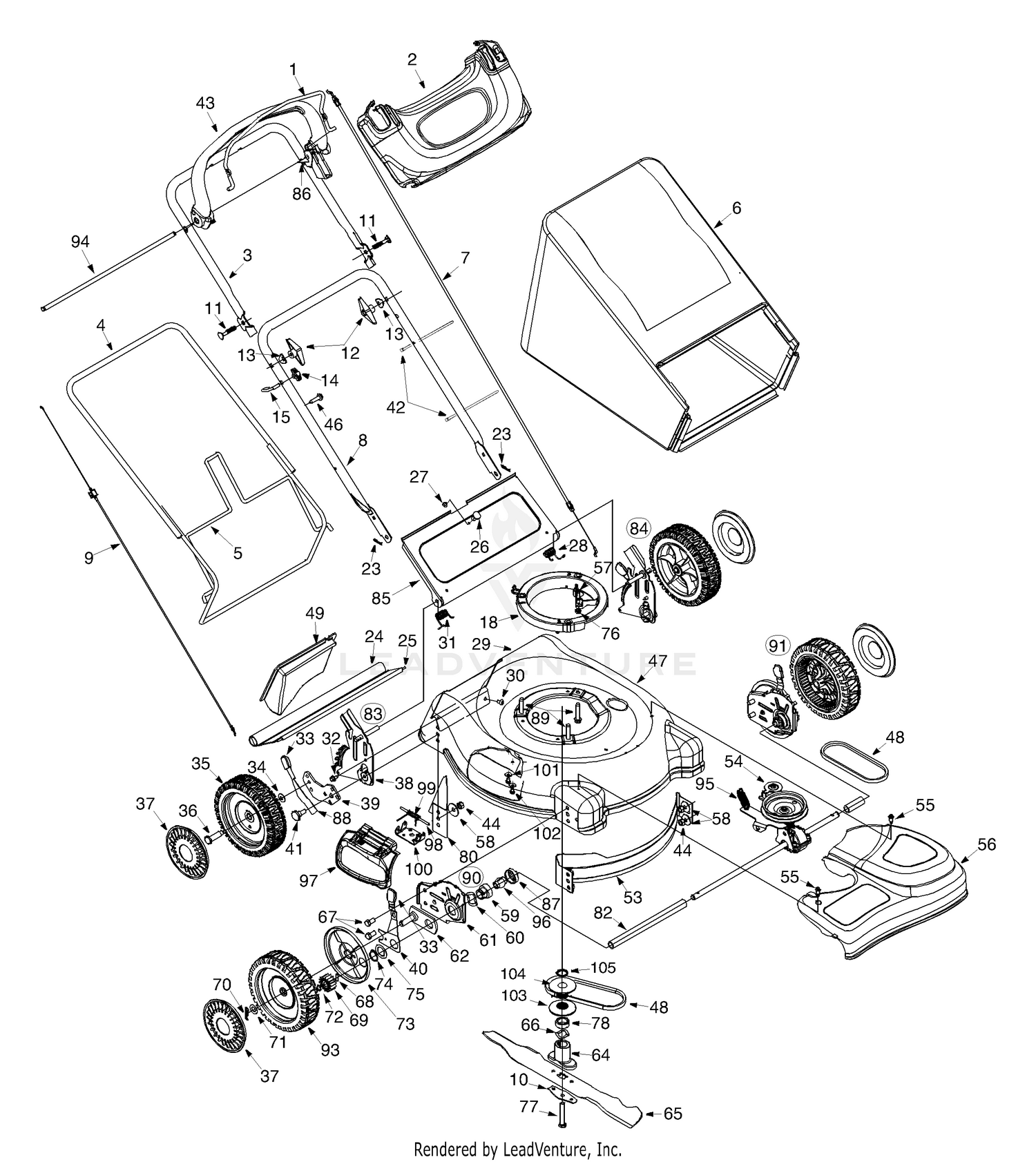

| Ref | Part Number | Description |
|---|
| 1 |
747-2133A-0637 |
BAIL Not Available This part replaces 747-2133. Price: |
| 2 |
731-2628 |
HANDLE PANEL Not Available Price: |
| 3 |
749-1507-0637 |
UPPER HANDLE (POWDER BLACK) Not Available This part replaces 749-1507. Price: |
| 4 |
764-0310A-0637 |
Rear Catcher Frame This part replaces 764-0310. Price: $40.61 |
| 5 |
764-0311-0637 |
FRONT CATCHER FRAME (POWDER BLACK) Not Available This part replaces 764-0311. Price: |
| 6 |
964-0309 |
GRASS CATCHER BAG Not Available This part replaces 664-0176. Price: |
| 7 |
946-1252 |
CONTROL CABLE This part replaces 746-1252. Price: $17.47 |
| 8 |
749-0907B |
Lower Handle Price: $43.95 |
| 9 |
946-1250 |
Fwd Drive Cable: Smart Speed (TM) This part replaces 746-1250. Price: $30.98 |
| 10 |
736-0524B-1 |
BLADE BELL SUPPORT This part replaces 736-0524A. Price: $5.34 |
| 11 |
710-1174 |
Carriage Bolt Price: $6.28 |
| 12 |
720-0284 |
Handle Knob Price: $4.08 |
| 13 |
736-0451 |
Saddle Washer Price: $3.75 |
| 14 |
720-0279 |
Wing Nut Price: $3.93 |
| 15 |
710-1205 |
Rope Guide Price: $3.53 |
| 18 |
631-0075B |
ENGINE SPACER ASSEMBLY Not Available Price: |
| 23 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 24 |
731-04998 |
Trailshield This part replaces 731-1236. Price: $27.86 |
| 25 |
732P0700 |
TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85 |
| 26 |
720-0275 |
KNOB Not Available Price: |
| 27 |
710-0192 |
Scr. Tr. Mach. #10-24 x 0.380" Price: $3.08 |
| 28 |
932-0677 |
SPRING-DOOR (LH) Not Available This part replaces 732-0677. Price: |
| 29 |
782-5003A |
LH Rear Baffle This part replaces 782-5003. Price: $26.48 |
| 30 |
710-1017 |
Scr. AB 1/4-14 x 0.625" Price: $7.26 |
| 31 |
732-0678 |
Torsion Spring RH Price: $7.13 |
| 32 |
710-0896 |
Hex Scr. w/ Wash. 1/4-14 x 0.62" Price: $3.86 |
| 33 |
731-13116-1 |
HEIGHT ADJUSTMENT KNOB This part replaces 720-0426. Price: $12.01 |
| 34 |
736-0105 |
Bell Washer .375 x .870 Price: $3.96 |
| 35 |
753-08093 |
Wheels - Front This part replaces 734-2004A. Price: $39.95 |
| 36 |
738-0102 |
Shoulder Screw Price: $9.22 |
| 37 |
731-0981C |
Hubcap, 8" This part replaces 731-0981A. Price: $9.24 |
| 38 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 682-3067. Price: |
| 39 |
14766 |
BAR-PIVOT (LH) *ON Not Available Price: |
| 40 |
732-0706 |
Front Lever RH Price: $14.83 |
| 41 |
738-0507B |
Shoulder Screw Price: $3.86 |
| 43 |
631-04025 |
Drive Handle Not Available Price: |
| 44 |
712-0798 |
Hex Nut 3/8-16 Price: $3.86 |
| 46 |
710-0817 |
TT-Scr. 5/16-18 Price: $5.77 |
| 47 |
782-0082A |
DECK 21" R Not Available Price: |
| 48 |
954-04032B |
V-Belt This part replaces 754-0465. Price: $23.31 |
| 49 |
782-5007C |
PLUG-MULCHING BAFFLE This part replaces 782-5007A. Price: $45.78 |
| 53 |
782P5002B |
FRONT BAFFLE Not Available This part replaces 782-5002. Price: |
| 54 |
918-04006 |
Transmission Assembly This part replaces 618-04006. Price: $273.99 |
| 55 |
710-1650 |
Shld. Screw Price: $4.22 |
| 56 |
931-05132A |
TRANSMISSION COVER (BLACK) Not Available This part replaces 731-1936A. Price: |
| 57 |
711-1293 |
Belt Keeper Pin Price: $4.21 |
| 58 |
736-0331 |
Bell Washer Price: $3.50 |
| 59 |
748-0355 |
SUPPORT BEARING Not Available Price: |
| 60 |
736-0447 |
Wave Washer Price: $3.90 |
| 61 |
782-0511A-0637 |
HEIGHT ADJUSTMENT PLATE (LH) Not Available This part replaces 782-0511A. Price: |
| 62 |
682-0509 |
HEIGHT ADJ. PIVOT PLATE ASS'Y. Not Available Price: |
| 64 |
748-0377E |
Blade Adapter This part replaces 748-0377C. Price: $16.91 |
| 65 |
942-0741A |
Blade This part replaces 742-0741. Price: $27.55 |
| 66 |
736-0526 |
Wave Washer Price: $5.94 |
| 67 |
710-0216 |
Hex Screw 3/8-16 Price: $3.93 |
| 68 |
915-0221 |
Dowel Pin This part replaces 715-0221. Price: $3.93 |
| 69 |
717-1762 |
Gear 14T RH Price: $12.11 |
| 70 |
714-0101 |
Hairpin Clip Price: $4.13 |
| 71 |
736-3013 |
Flat Washer Price: $3.86 |
| 72 |
716-0865 |
Snap Ring Price: $3.86 |
| 73 |
782-7551A |
Wheel Dust Cap This part replaces 782-7551. Price: $4.80 |
| 74 |
716-0102 |
Snap Ring Price: $4.40 |
| 75 |
736-0474 |
Washer DD 1.5" O.D. Price: $5.94 |
| 76 |
712-0271 |
Hex Nut 1/4-20 Price: $3.78 |
| 77 |
710-1257 |
Hex Bolt Price: $7.02 |
| 78 |
750-04010 |
SLEEVE SPACER, .88 x 1.19 O.D. Not Available Price: |
| 80 |
782-5004B |
RH Rear Baffle This part replaces 782-5004. Price: $21.86 |
| 82 |
750-1166 |
Slev. Spacer LH Price: $4.08 |
| 83 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 682-0516A. Price: |
| 84 |
753-05994 |
KIT-HANDLE BRACKET Not Available This part replaces 682-0515A. Price: |
| 85 |
782-7000 |
REAR DISCHARGE DOOR Not Available Price: |
| 86 |
631-04025 |
Drive Control Bar: Red Not Available This part replaces 731-2646. Price: |
| 87 |
732-0708 |
BEARING RETAINER Not Available Price: |
| 88 |
732-0417A |
SPRING LEVER Not Available Price: |
| 89 |
710-1008 |
TT Screw Price: $4.75 |
| 90 |
987-02194A |
Height Adjustment Assembly RH This part replaces 682-0512A. Price: $58.00 |
| 91 |
987-02193A |
Height Adjustment Ass’y - LH This part replaces 682-0511A. Price: $58.00 |
| 93 |
734-2042A |
Wheel Ass'y 8 x 2.125 Gear Zag This part replaces 734-2042. Price: $35.71 |
| 94 |
747-2132A |
CONTROL ROD Not Available This part replaces 747-2132. Price: |
| 95 |
732-04001 |
Extension Spring Price: $4.84 |
| 96 |
741-0604A |
Bearing Sleeve .50 I.D. Price: $11.31 |
| 97 |
731-1404A |
MULCH PLUG ASSEMBLY Not Available Price: |
| 98 |
747-0710A |
HINGE PIN This part replaces 747-0710. Price: $3.86 |
| 99 |
932-0731 |
Torsion Spring This part replaces 732-0731. Price: $9.09 |
| 100 |
782-7006 |
MOUNTING BRACKET Not Available Price: |
| 101 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 102 |
710-0599 |
TT-Screw 1/4-20 x .05" Price: $3.86 |
| 103 |
756-0613 |
Half Pulley Price: $15.75 |
| 104 |
756-0612A |
Half Pulley Price: $14.58 |
