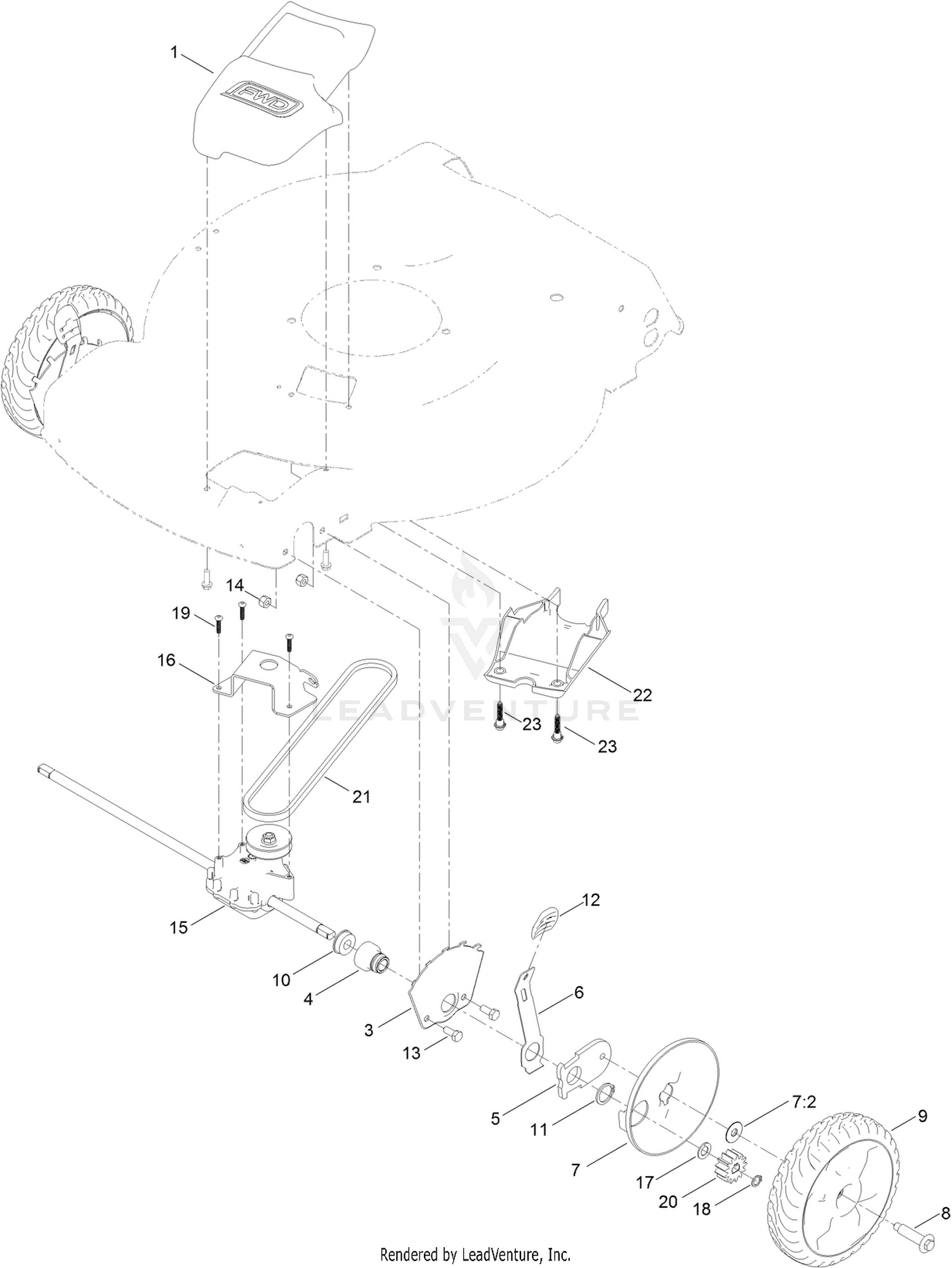

| Ref | Part Number | Description |
|---|
| 1 |
136-5907 |
COVER-BELT Price: $6.35 |
| 3 |
115-1956-03 |
PLATE-HOC, FRONT Price: $6.59 |
| 4 |
131-0836 |
RETAINER-BEARING, HOC Price: $9.80 |
| 5 |
137-9128 |
ARM-PIVOT, FRONT Price: $5.46 |
| 6 |
105-1809 |
ARM-SPRING Price: $7.52 |
| 7 |
127-6840 |
WHEEL COVER ASM Price: $4.37 |
| 8 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 10 |
104-8699 |
BEARING-BALL Price: $3.28 |
| 11 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 12 |
105-3042 |
KNOB-LEVER, HOC Price: $3.28 |
| 13 |
137-3052 |
SCREW-HH Price: $0.34 |
| 14 |
119-4038 |
NUT-HEX Price: $0.31 |
| 15 |
137-4822 |
TRANSMISSION Price: $71.58 |
| 16 |
114-7978-03 |
BRACKET-TRANSMISSION Price: $7.20 |
| 17 |
110-7191 |
WASHER-THRUST Price: $1.79 |
| 18 |
32151-61 |
RING-RETAINING Price: $2.39 |
| 19 |
120-9676 |
SCREW-PLASTITE Price: $0.34 |
| 20 |
131-0896 |
GEAR-PINION, 13T Price: $4.49 |
| 21 |
117-1018 |
V-BELT Price: $15.31 |
| 22 |
136-5851 |
COVER-BELT, FRONT (LOWER) Price: $3.79 |
