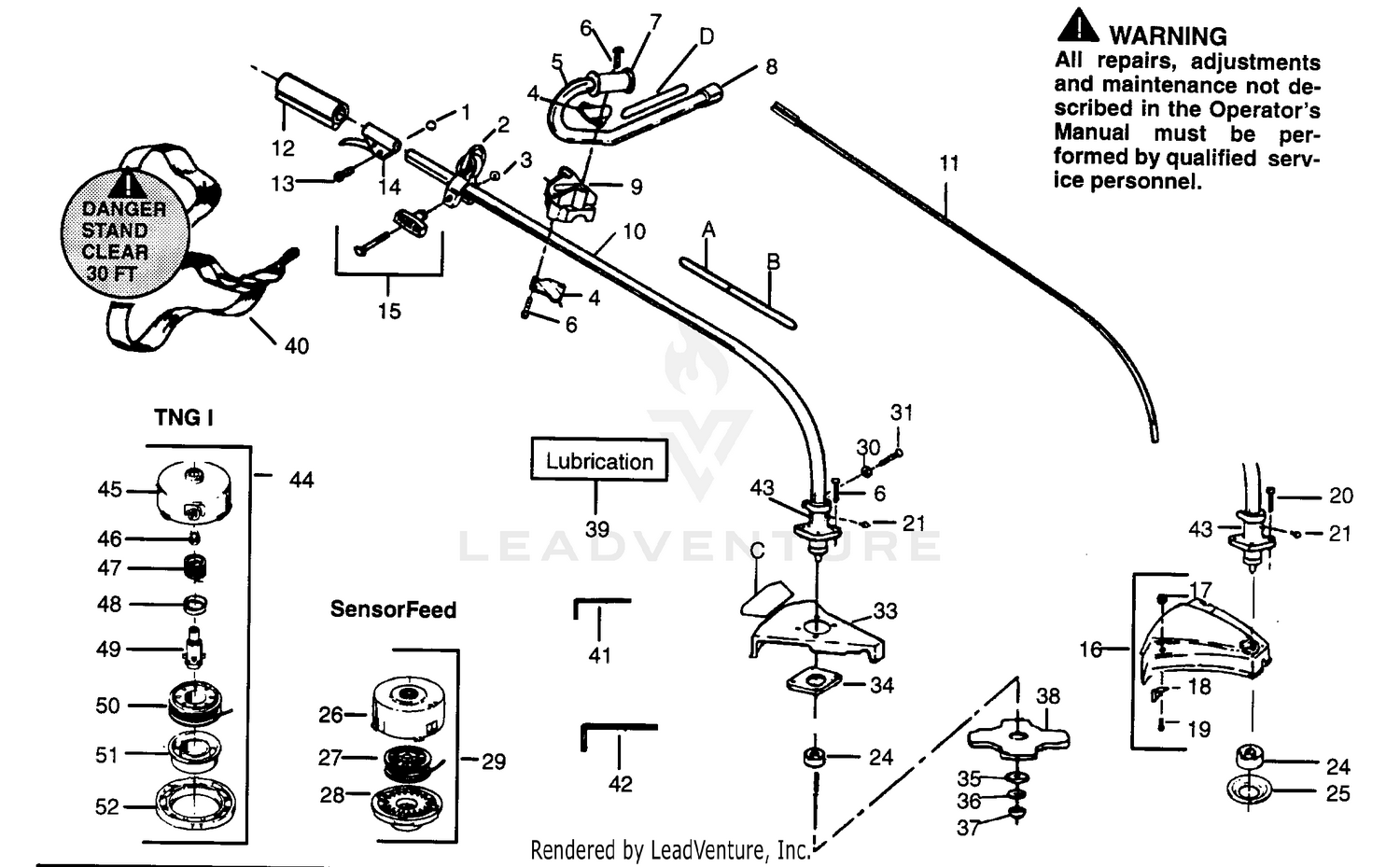

CUTTING HEAD & DRIVE SHAFT
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| A | 530029160 | Decal-Shaft Warning-Upper Price: $2.99 |
| B | 530029161 | Type 1 & 2 Price: $3.33 |
| B | 530038906 | Type 3 Price: $0.12 |
| C | 530027749 | Decal-Blade Direction (Not a serviceable part) Price: $0.12 |
| 1 | 530015768 | Nut Price: $1.99 |
| 2 | 530094686 | Clamp Harness Ass'y. Price: $4.99 |
| 3 | 530015197 | Nut Price: $1.99 |
| 4 | 530094572 | Handlebar Bracket Price: $1.99 |
| 5 | 530010723 | Handlebar Price: $6.68 |
| 6 | 530015791 | Screw Price: $1.99 |
| 7 | 530092086 | Handlebar Grip Price: $4.99 |
| 8 | 530092192 | Handlebar Cap Price: $0.99 |
| 9 | 530012207 | Handlebar Clamp Price: $8.99 |
| 10 | 530014965 | Type 1 & 2 Price: Call Us |
| 10 | 530095338 | Type 3 Price: $3.33 |
| 11 | 530094555 | Drive Shaft Price: $14.99 |
| 12 | 530029445 | Drive Shaft Grip Price: $2.99 |
| 13 | 530015774 | Screw Price: $1.99 |
| 14 | 530010959 | Throttle Lever Ass'y. (Inc. 1 & 13) Price: $6.99 |
| 15 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 16 | 530069256 | Shield Kit Ass'y. (Inc. 17-19) Price: $9.99 |
| 17 | 530403094 | Nut This part replaces 534235901. Price: $1.99 |
| 18 | 530094570 | Line Limiter Price: $1.99 |
| 19 | 530015037 | Screw Price: $1.99 |
| 20 | 530016107 | Screw Price: $1.99 |
| 21 | 530015518 | Screw Price: $1.99 |
| 24 | 530092359 | Dust Cup Price: $4.99 |
| 25 | 530094571 | Grass Washer Price: $1.99 |
| 26 | 530094592 | Hub Ass'y. Price: Call Us |
| 27 | 952701607 | Spool w/Line Price: Call Us |
| 28 | 530094494 | Cover Price: $4.99 |
| 29 | 952701605 | Cutting Head Ass'y (Inc. 26-28) Price: Call Us |
| 30 | 530092227 | Washer Price: $0.99 |
| 31 | 534828400 | Screw Price: $1.99 |
| 33 | 530094633 | SHIELD This part replaces 530094627. Price: $22.99 |
| 34 | 530027615 | Shield Retention Plate Price: $3.99 |
| 35 | 530015792 | Washer Price: $1.99 |
| 36 | 530016240 | Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 37 | 530093748 | Nut Price: $2.99 |
| 38 | 952701546 | Weed Blade Price: Call Us |
| 39 | 952030139 | Shaft Lubrication Price: $2.99 |
| 40 | 530094417 | Shoulder Strap Price: $20.65 |
| 41 | 530031159 | Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 42 | 530031098 | Hex Wrench (3/16) Price: $0.99 |
| 43 | 530094581 | Bearing Hsg. Ass'y. (Inc. 21 & 24) Price: $59.99 |
| 44 | 952711547 | Cutting Head Ass'y. This part replaces 952701574. Price: $19.95 |
| 45 | 530071295 | Hub This part replaces 530093896. Price: $14.99 |
| 46 | 530093898 | Line Saver Price: $3.99 |
| 47 | 530340007 | Spring Price: $1.99 |
| 48 | 530328929 | Cap Spring This part replaces 530092068. Price: $1.99 |
| 49 | 530093897 | Drive Gear Price: $6.99 |
| 50 | 952701523 | Spool w/Line Price: $5.95 |
| 51 | 530401183 | Release Button Price: $2.99 |
| 52 | 530092133 | Cover Price: $5.99 |
