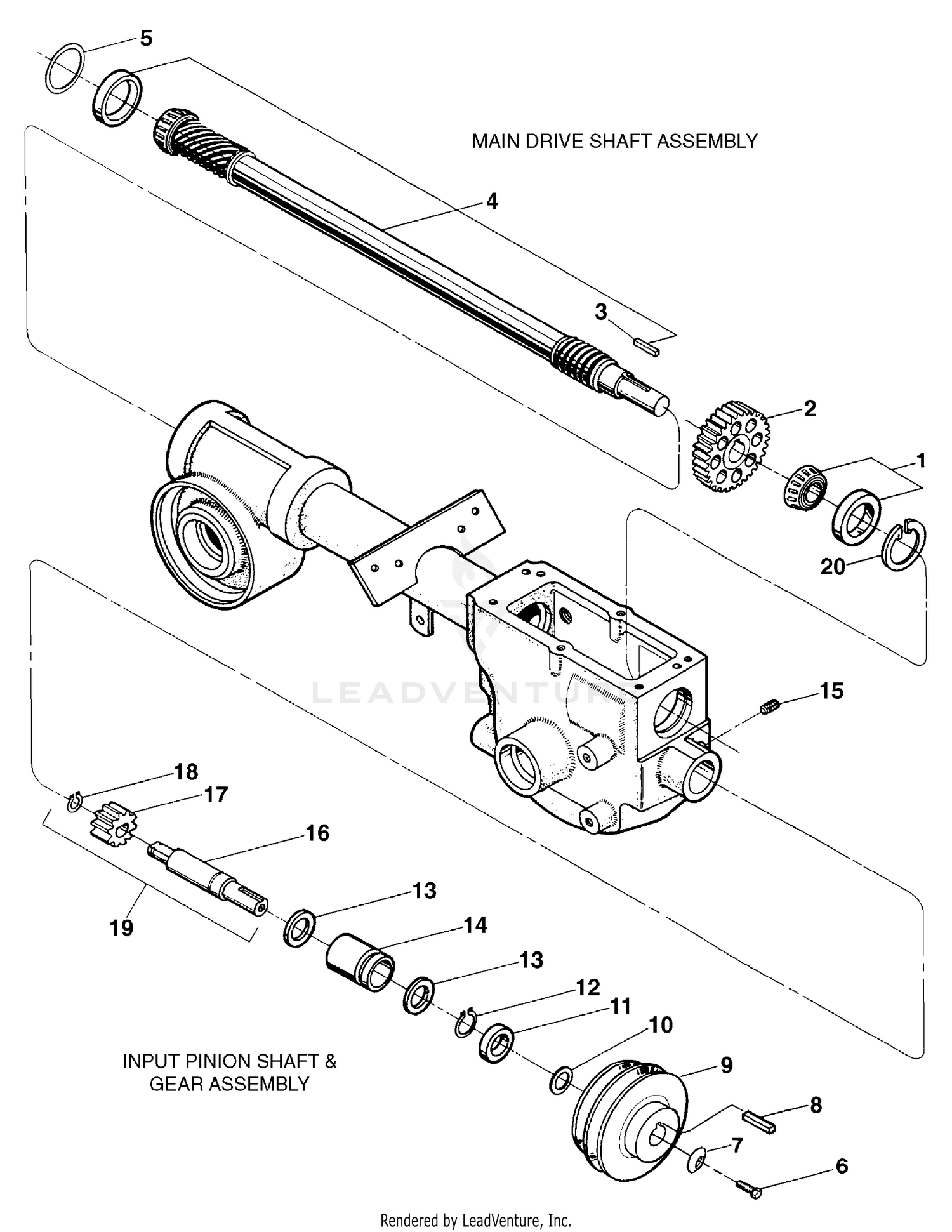

| Ref | Part Number | Description |
|---|
| 1 |
941-0107 |
Bearing, Tapered Roller (with race) This part replaces GW-1714. Price: $41.81 |
| 2 |
717-04690 |
Spur Gear This part replaces GW-20718. Price: $34.80 |
| 3 |
GW-9301 |
Key, 3/16 sq x 1 Price: $3.46 |
| 5 |
GW-1325C |
Shim Set (Incl. two 1224-2 and one GW-1224-3) Price: $13.63 |
| 6 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces 710-04458. Price: $3.85 |
| 7 |
736-04193 |
Washer, Disc Spring (concave surface faces pulley) Price: $5.94 |
| 8 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 714-04042. Price: $4.20 |
| 9 |
619-04123 |
Transmission Pulley This part replaces 1916522. Price: $145.54 |
| 10 |
736-04079 |
Support Washer Price: $4.13 |
| 11 |
921-04044 |
Oil Seal, .750 x 125 This part replaces 721-04044. Price: $8.80 |
| 12 |
716-0101 |
Retaining Ring-external This part replaces 1113527. Price: $3.37 |
| 13 |
GW-9953 |
WASHER 1.022 Not Available Price: |
| 14 |
GW-9428 |
Bushing Price: $32.88 |
| 15 |
GW-9677 |
SCREW-SET Not Available Price: |
| 16 |
711-05388 |
PINION SHAFT This part replaces GW-20791. Price: $73.97 |
| 17 |
717-04689 |
Pinion Gear This part replaces GW-20792. Price: $19.85 |
| 18 |
GW-9093 |
Retaining Ring (external) Price: $6.01 |
| 19 |
GW-20799 |
PINION W/GEAR&SNAP Not Available Price: |
