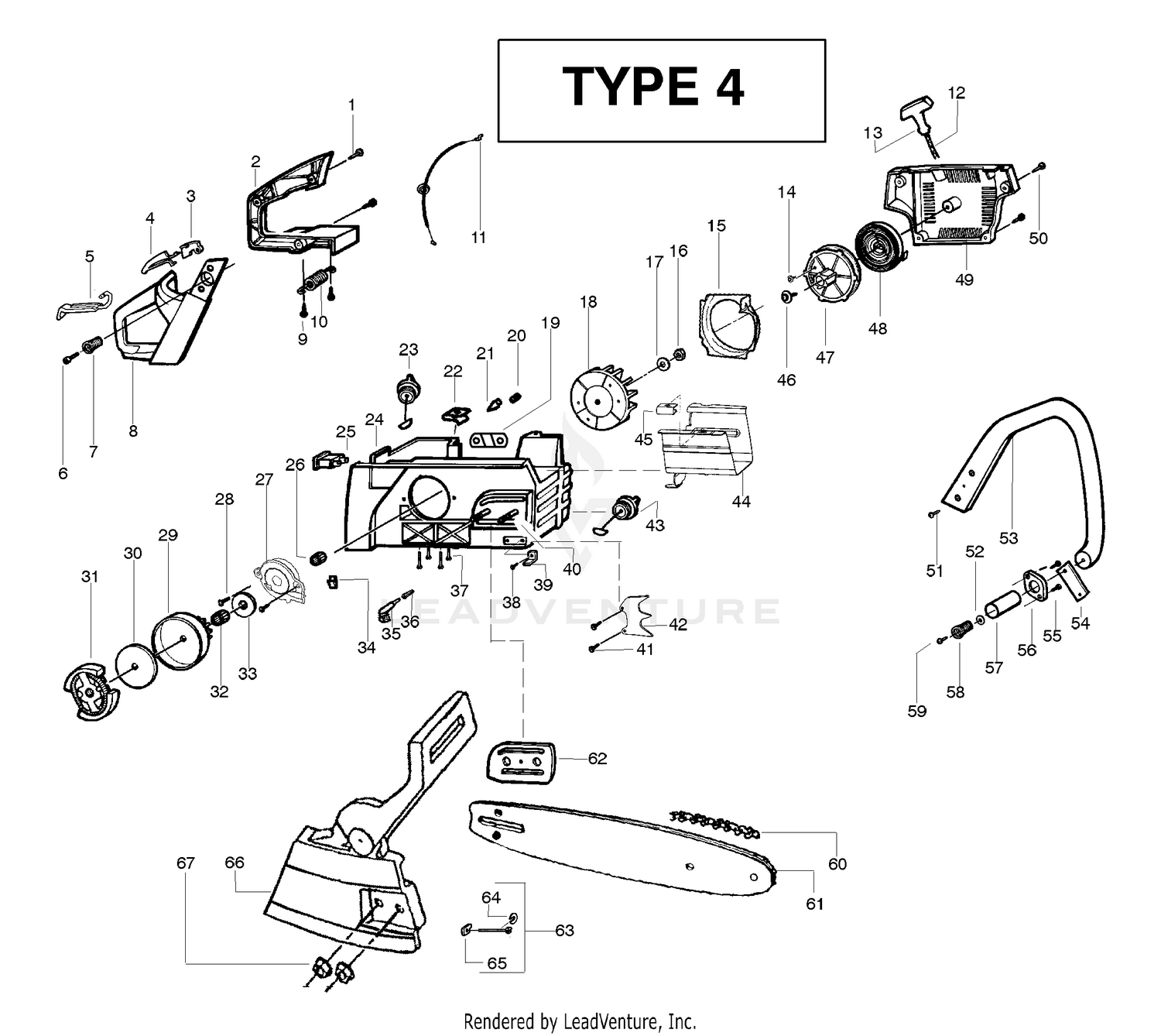

Handle, Chassis & Bar Assembly Type 4
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 251-347 | BEARING-BALL Price: $9.69 |
| 1 | 530015957 | Screw Price: $1.99 |
| 2 | 119-4092 | ROLLER TUBE ASM Price: $172.76 |
| 2 | 530071272 | Cover-Handle Price: $64.99 |
| 3 | 530036097 | Trigger-Throttle Price: $1.99 |
| 4 | 108-3151 | NUT-LOCK, BEARING Price: $21.90 |
| 4 | 530036098 | Lockout-Throttle Price: $1.99 |
| 5 | 147-1347 | SHAFT-ROLLER (21IN) This part replaces 119-4090. Price: $70.81 |
| 5 | 530053443 | Lever-Choke Price: $1.99 |
| 6 | 106-6941 | SEAL Price: $5.74 |
| 6 | 530015937 | Screw Price: $1.99 |
| 7 | 530038985 | Spring-Isolator Price: $1.99 |
| 8 | 530071272 | Handle-Rear Price: $64.99 |
| 9 | 530015906 | Screw Price: $1.99 |
| 10 | 530038986 | Spring-Isolator Price: $1.99 |
| 12 | 530069232 | Kit-Rope Price: $3.99 |
| 13 | 530056402 | Handle-Starter This part replaces 530037485. Price: $2.99 |
| 14 | 530016080 | Screw Price: $1.99 |
| 15 | 530047667 | Plate-Baffle Fan Price: $1.99 |
| 16 | 530016071 | Nut-Flywheel Price: $1.99 |
| 17 | 530015127 | Washer-Flywheel Price: $1.99 |
| 18 | 575635501 | FLYWHEEL ASSY This part replaces 530039147. Price: $9.99 |
| 20 | 530029868 | Plug-Vent Price: $1.99 |
| 21 | 530026119 | Valve-Check Price: $1.99 |
| 22 | 530015922 | Nut-Speed Price: $1.99 |
| 23 | 530010845 | Assy-Fuel Cap Price: $5.99 |
| 24 | 530037511 | Assy-Chassis Price: $54.99 |
| 25 | 530069572 | Kit-Switch Price: $4.99 |
| 26 | 530029833 | Worm-Oil Pump Price: $3.99 |
| 27 | 545036801 | PLUNGER & GEAR ASSY This part replaces 530014410. Price: $11.99 |
| 28 | 530015896 | Screw Price: $1.99 |
| 30 | 530015611 | Washer-Clutch Price: $1.99 |
| 31 | 530014949 | Assy-Clutch Price: $7.99 |
| 32 | 530032119 | Bearing-Clutch Price: $4.99 |
| 33 | 530015907 | Washer-Thrust Price: $1.99 |
| 34 | 545037101 | OIL HOSE This part replaces 530019174. Price: $6.99 |
| 35 | 545047801 | Pickup-Oil Price: $2.99 |
| 36 | 530056533 | Filter-Oil This part replaces 530037821. Price: $2.99 |
| 37 | 530016037 | Screw Price: $1.99 |
| 38 | 530015814 | Screw Price: $1.99 |
| 39 | 530029850 | Chain Catcher Price: $1.99 |
| 40 | 530015877 | Bar Bolt Price: $2.99 |
| 41 | 530015805 | Screw Price: $1.99 |
| 43 | 530057236 | OIL TANK CAP This part replaces 530010846. Price: $5.99 |
| 44 | 530055406 | Shield-Heat Price: $2.99 |
| 45 | 530055322 | Clip-"U" Price: $1.99 |
| 46 | 530015920 | Screw Price: $1.99 |
| 47 | 530069313 | Kit-Starter Pulley Price: $4.99 |
| 48 | 545008005 | RETURN SPRING This part replaces 530015891. Price: $3.99 |
| 50 | 530015892 | Screw Price: $1.99 |
| 51 | 530015814 | Screw Price: $1.99 |
| 52 | 530015123 | Washer Price: $1.99 |
| 53 | 530053955 | ASSY HANDLE BAR This part replaces 530038327. Price: $11.99 |
| 54 | 530036113 | Front Strap-AV Price: $2.99 |
| 55 | 530015775 | Screw-Plate Price: $1.99 |
| 56 | 530036101 | Plate-Isolator Price: $1.99 |
| 57 | 530036142 | Spring Sleeve-AV Price: Call Us |
| 58 | 530038985 | Spring-Isolator Price: $1.99 |
| 59 | 530015984 | Screw Price: $1.99 |
| 60 | 952051310 | Chain-20" Price: $24.99 |
| 61 | 952044326 | Bar-20" Price: $37.95 |
| 62 | 530047855 | Bar Plate Price: $3.99 |
| 64 | 530038593 | Retainer-Bar Adjust Price: $0.99 |
| 65 | 530015826 | Pin-Bar Adjust Price: $1.99 |
| 66 | 530054803 | Assy-ChainBrake Price: $37.99 |
