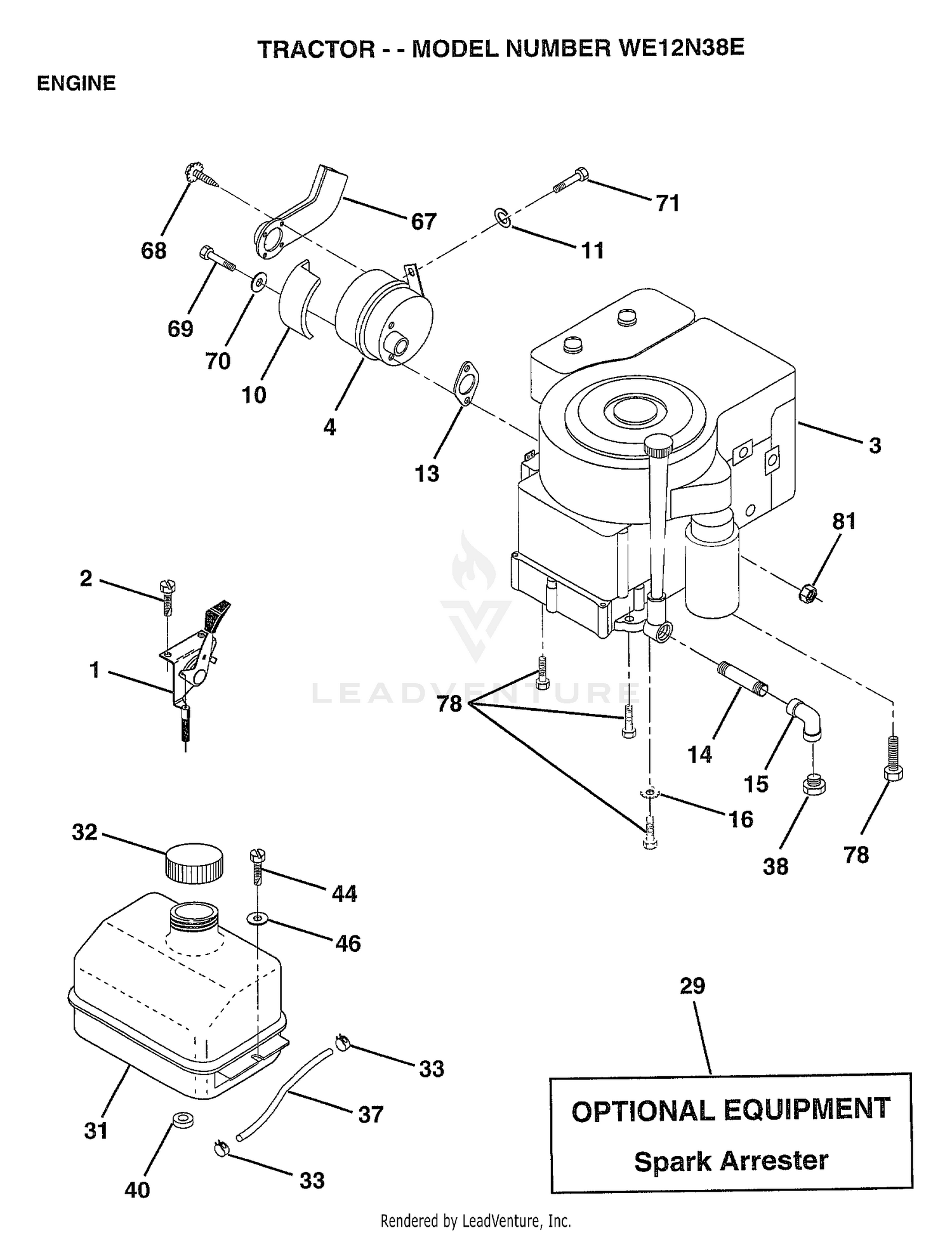

| Ref | Part Number | Description |
|---|
| 1 |
132771 |
THROTTLE CONTROL Price: Call Us |
| 1 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 3 |
49-6440-03 |
PEDAL-FORWARD Price: $84.90 |
| 4 |
101273M |
MUFFLER LTV Price: Call Us |
| 4 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 5 |
75-2970 |
PEDAL-TRACTION Price: $135.64 |
| 6 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 7 |
75-6550 |
DISC-FRICTION Price: $7.96 |
| 8 |
75-6490 |
LEVER ASM Price: $78.45 |
| 9 |
233-42 |
KNOB Price: $12.88 |
| 10 |
101159L |
SHIELD HEAT LTV Price: Call Us |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
112-5084 |
BRACKET-LEVER This part replaces 75-6510. Price: $61.39 |
| 12 |
75-6580 |
CABLE-PEDAL Price: $34.72 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 13 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
3272-2 |
PIN-COTTER Price: $2.29 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
3290-461 |
WASHER-SPRING Price: $3.89 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
63-7733 |
LH BRAKE CABLE ASM Price: $210.39 |
| 25 |
63-7732 |
RH BRAKE CABLE ASM Price: $210.39 |
| 26 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 28 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 29 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 30 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 31 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 32 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 34 |
75-3270-03 |
HUB-PIVOT, TRACTION Price: $144.73 |
| 35 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 36 |
75-2170-03 |
TUBE-CONTROL, PUMP Price: $103.73 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 37 |
3220-3 |
NUT-HJ Price: $0.28 |
| 38 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 39 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 40 |
323-9 |
SCREW-HH Price: $1.29 |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 67 |
108767X |
DEFLECTOR MUFFLER Price: Call Us |
| 68 |
17030808 |
SUB= 17030814 Price: Call Us |
| 70 |
19111012 |
WASHER T Price: Call Us |
| 71 |
71110408 |
BOLT HXHD FIN Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
