Chassis

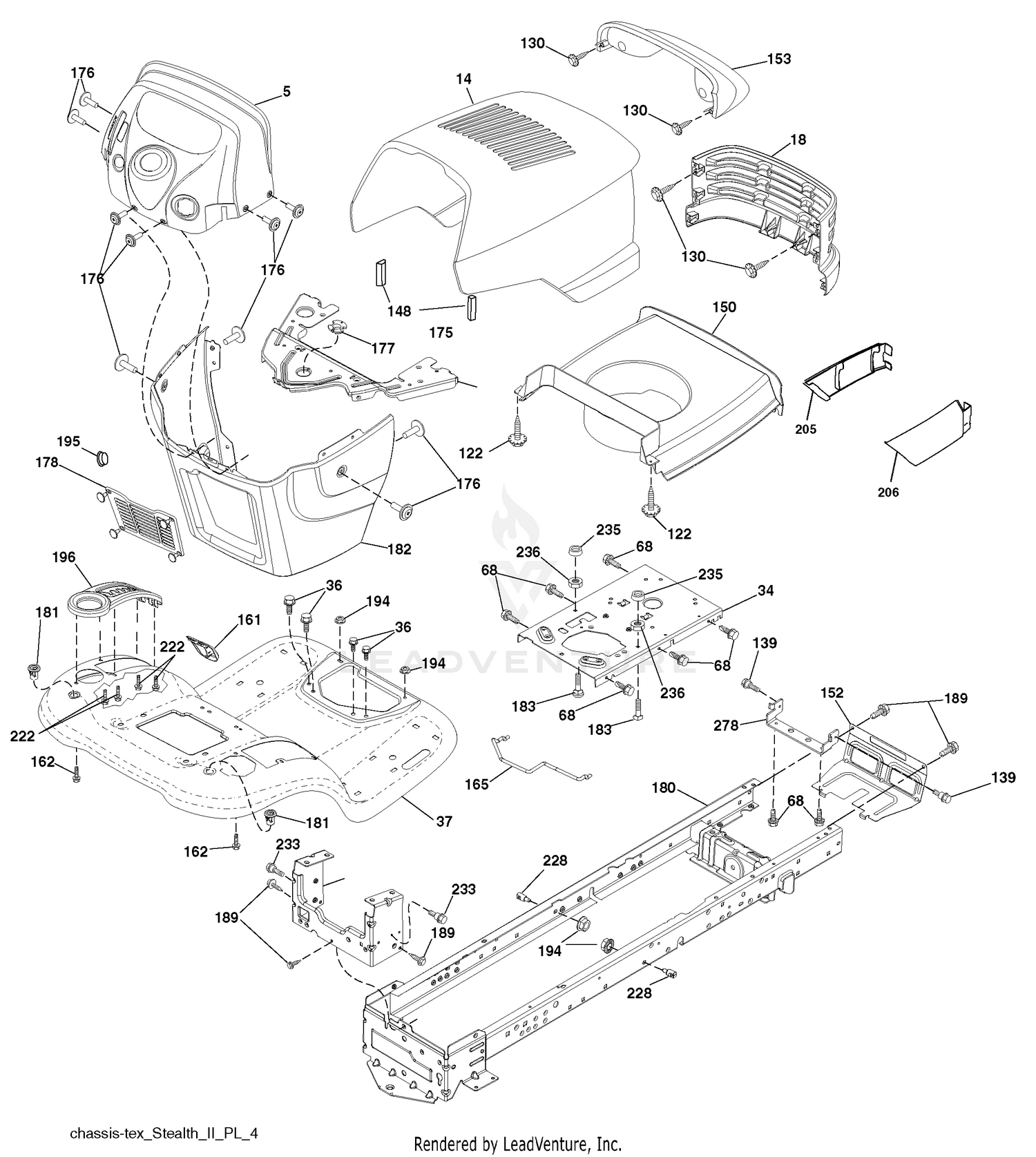

Chassis

Parts (37)

RefPart NumberDescription
5 195102X428 Dash Price: Call Us
14 175260X428 Hood Price: Call Us
18 175289X428 Grille Price: Call Us
34 196125 Plate Engine Price: Call Us
36 17060512 Screw 5/16-18 x 3/4 Price: Call Us
37 400009X428 Fender Price: Call Us
58 412281 Drawbar Upper Price: Call Us
68 17490508 Screw 5/16-18 x 1/2 Price: Call Us
122 192512 Screw WSHD Hex 10-32 x 5/8 Price: Call Us
130 416358 Screw #10 x 0.750 BOS Thread Price: Call Us
139 171873 Bolt Shoulder 5/16 - 18 Price: Call Us
148 164655 Bumper Hood Price: Call Us
150 175351 Duct Heat Price: Call Us
152 199535 Shield Browning/Debris Price: Call Us
153 161840 Lens Bar Price: Call Us
161 193097X428 Window Fuel Price: Call Us
162 142432 Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc Price: Call Us
165 196826 Bracket Support Tank Price: Call Us
175 193236 Cross Member Price: Call Us
176 400776 Screw 10-24 x 5/8 Wshd. Qdrx. Price: Call Us
177 195227 Bushing Steering Price: Call Us
178 195651 Cargo Asm. Net Price: Call Us
180 415063 Chassis Price: Call Us
181 193102X428 Bushing Mtg. Fender Crgo. Price: Call Us
182 192551 Dash Lower Price: Call Us
183 74780520 Bolt Fin. Hex 5/16-18 x 1-1/4 Price: Call Us
189 17000512 Screw 5/16-18 x 3/4 Price: Call Us
194 73900500 Nut Lock Hex Flange 5/16-18 Price: Call Us
195 401556X428 Plug Hole Dash Price: Call Us
196 410585 Console Asm. Deck Lift Price: Call Us
205 169847X428 Skirt Hood RH Price: Call Us
206 169848X428 Skirt Hood LH Price: Call Us
222 137729 Screw Thrdrol. 1/4-20 x 5/8 Price: Call Us
228 195161 Stud Fastener Price: Call Us
233 196539 Bolt Shoulder Price: Call Us
235 406129 Spacer Fender Price: Call Us
236 73930500 Nut Lock 5/16-18 Price: Call Us
