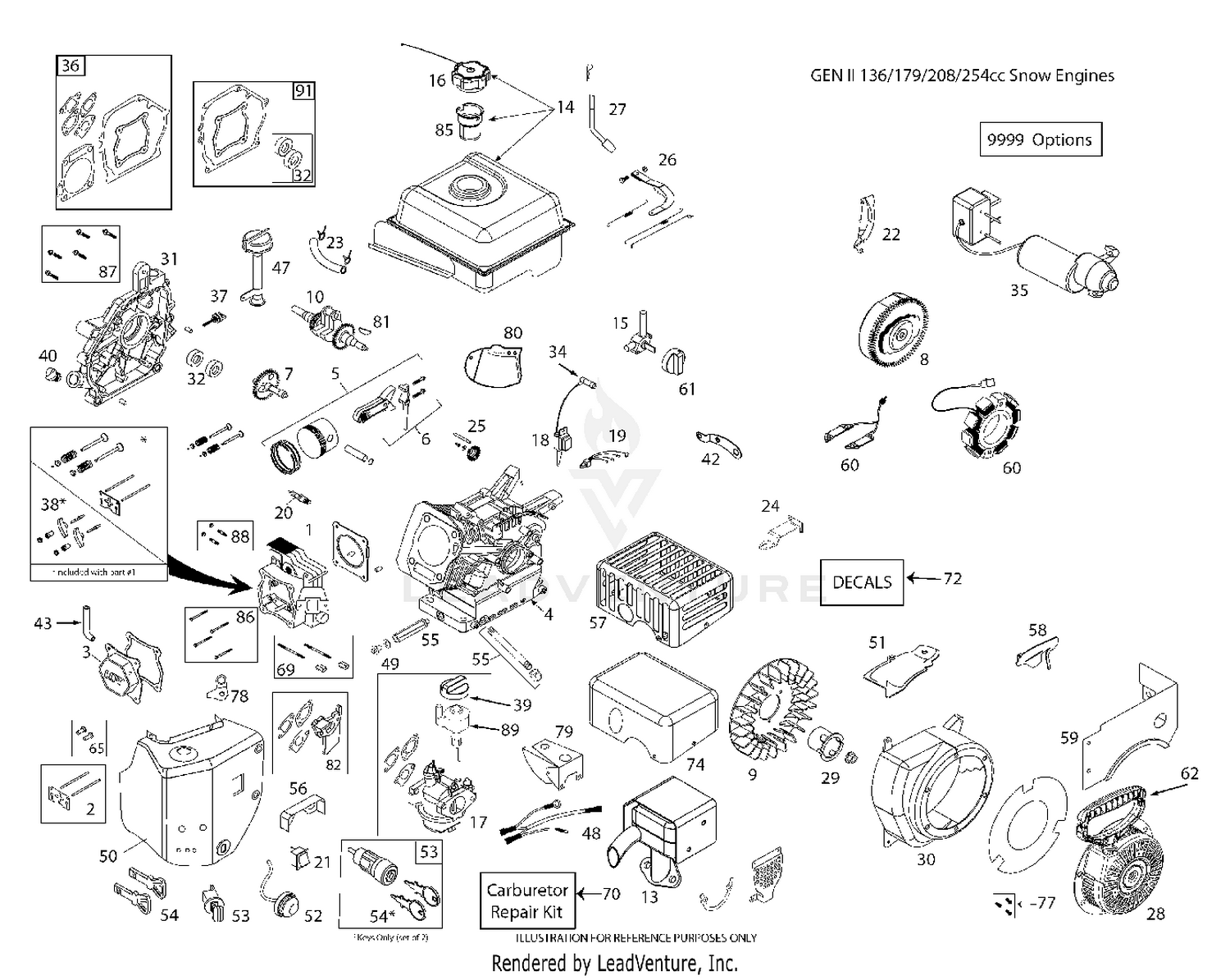

| Ref | Part Number | Description |
|---|
| 1 |
585771401 |
CYLINDER.HEAD.ASM.W/GASKET.254 Price: $119.99 |
| 2 |
585771501 |
KIT.PUSH.ROD.&.PLATE.W/VC.GASK Price: $8.99 |
| 3 |
585771601 |
COVER.VALVE.W/GASKET.254CC Price: $14.99 |
| 4 |
585335704 |
ENGINE.LCT.254CC.STORMFOR.ALT This part replaces 587153801. Price: $849.99 |
| 5 |
585771701 |
PISTON.&.ROD ASSEM.254CC Price: $99.99 |
| 7 |
585771801 |
CAMSHAFT.MCR.W/GASKET.254CC Price: $39.99 |
| 8 |
585771901 |
FLYWHEEL.ELEC.STRT.(8.MAGNETS) Price: $139.99 |
| 9 |
532420586 |
FLYWHEEL FAN 420586 Price: $9.99 |
| 10 |
585772001 |
CRANKSHAFT.KEYED(#18).SNOW.254 Price: $109.99 |
| 13 |
582582901 |
MUFFLER ASSY LCT.GEN 2 SNOW This part replaces 585772101. Price: $69.99 |
| 14 |
585772201 |
FUEL.TANK.SNOW.2.7L.BLACK.254C Price: $99.99 |
| 15 |
532429234 |
FUEL.PETCOCK.SNOW(SKSN4900) Price: $14.99 |
| 16 |
532424942 |
FUEL CAP OVERSIZED CLICK STYLE Price: $14.99 |
| 18 |
532443894 |
COIL.ING.CDI.HI TEMP.SKSNO416. Price: $37.99 |
| 20 |
590844201 |
SPARK PLUG HQT-7 RESISTOR This part replaces 532443898. Price: $4.99 |
| 21 |
532424957 |
SWITCH.ON/OFF(SKSN-0403) Price: $39.99 |
| 22 |
585772401 |
SHIELD.FLYWHEEL.ELEC.STRT.208C Price: $3.99 |
| 23 |
532438014 |
KIT.FUEL.HOSE.208CC.SING/STAGE This part replaces 532432144. Price: $8.99 |
| 24 |
585772501 |
BRACKET.SPEED.CNTRL.FIXED.254C Price: $9.99 |
| 25 |
532429646 |
GOVENOR.GEARS ASM(SK2082900) Price: $34.99 |
| 26 |
585772601 |
KIT.GOVERNOR.ARM.&.LINK.254CC Price: $17.99 |
| 27 |
532420602 |
KIT.GOVERNOR.CRANK(SK208-3100) Price: $5.99 |
| 28 |
532436967 |
RECOIL.STRT.ROUND(BLK) SNOW Price: $39.99 |
| 29 |
532436968 |
STRTER.CUP(NON-SLOT)SKSN0601.2 Price: $29.99 |
| 30 |
587154201 |
BLOWER HSG.LCT 254 GLOSS BLK S Price: $29.99 |
| 31 |
585772701 |
CRANKCASE.CVR.PRESS.IN.HI-OIL. Price: $37.99 |
| 32 |
585772801 |
KIT.SEAL.OIL.2.PIECES.254CC Price: $14.99 |
| 34 |
532436966 |
SPARK.PLUG.BOOT.SNW,SKSN4691.1 Price: $14.99 |
| 35 |
532436466 |
ELEC.START.GEN2.SKSN0451.1 Price: $329.99 |
| 36 |
585772901 |
KIT.ENGINE.GASKET.254CC Price: $22.99 |
| 38 |
585773001 |
KIT.ROCKER.ARM.W/GASKET.254CC Price: $17.99 |
| 39 |
532429224 |
CHOKE.KNOW.SNOW(SKSN4500) Price: $7.99 |
| 40 |
532429598 |
NON REMOVABLE PLUG Price: $11.99 |
| 43 |
580353401 |
TUBE.BREATHER.LCT.208 Price: $3.99 |
| 47 |
581007201 |
TUBE ASSY HIGH OIL-FILL Price: $8.99 |
| 48 |
532429262 |
WIRE.HARNESS.SNOW Price: $12.99 |
| 49 |
532435495 |
KIT.OIL.DRAIN.PLUG(SK2089911 Price: $7.99 |
| 50 |
585773101 |
KIT.HEATER.BOX.SNOW.254CC Price: $54.99 |
| 52 |
532424949 |
PRIMER.BULB.WITH HOSE (SNOW) Price: $11.99 |
| 53 |
532424954 |
SWITH.KEY.ASSEM.SNOW.SINGLE.ST Price: $24.99 |
| 54 |
532443059 |
KEY SET(2 KEYS) SKSN0407.1 Price: $11.99 |
| 55 |
587154401 |
OIL PIPE DRAIN LCT 254 Price: $29.99 |
| 56 |
585773301 |
SHIELD.CARBURETOR.VAPOR Price: $2.99 |
| 58 |
585773401 |
SHIELD.GOVERNOR.LINKAGE.254CC Price: $4.99 |
| 59 |
587154501 |
FUEL TANK SKIRT SHIELD LCT 254 Price: $14.99 |
| 61 |
532432752 |
FUEL KNOB-SNOW Price: $7.99 |
| 62 |
532443899 |
HANDLE.RECOIL.DELUXE.LCT Price: $14.99 |
| 65 |
581372801 |
TAPPET.KIT.LCT.208CC Price: $19.99 |
| 69 |
532424951 |
CARB.STUDS & COUPLING KIT.SNOW Price: $12.99 |
| 70 |
580353601 |
CARB.REPAIR.KIT.LCT.SK9900.2 Price: $64.99 |
| 74 |
581768801 |
COVER.MUFFLER.HEAT.SHIELD. Price: $27.99 |
| 77 |
532432688 |
BOLT.KIT.RECOIL.LCT.ALL.ENGINE Price: $3.99 |
| 79 |
585773701 |
COVER.CARBURETOR.SNOW Price: $17.99 |
| 80 |
585773801 |
SHIELD.GOVERNOR.LINK.SNOW.254C Price: $4.99 |
| 81 |
585297202 |
KEYS.FLYWHEEL.136/291CC.5PACK Price: $22.99 |
| 82 |
585020503 |
SPACER.CARBURETOR.208CC.LCT Price: $3.99 |
| 85 |
586325601 |
STRAINER.FUEL.TANK.LCT.208CC Price: $4.99 |
| 86 |
586327301 |
KIT.BOLT.CYLINDER.HEAD.(4PC) Price: $12.99 |
| 87 |
586326901 |
KIT.BOLT.CRANKCASE.COVER.6PC Price: $6.99 |
| 88 |
586326801 |
STUD.MUFFLER.KIT.LCT Price: $8.99 |
| 91 |
587994102 |
CRANKSHAFT GASKET KIT.LCT Price: $17.99 |
| 9999 |
587154801 |
JET HIGH ALTITUDE LCT 5000 25 Price: $5.99 |
