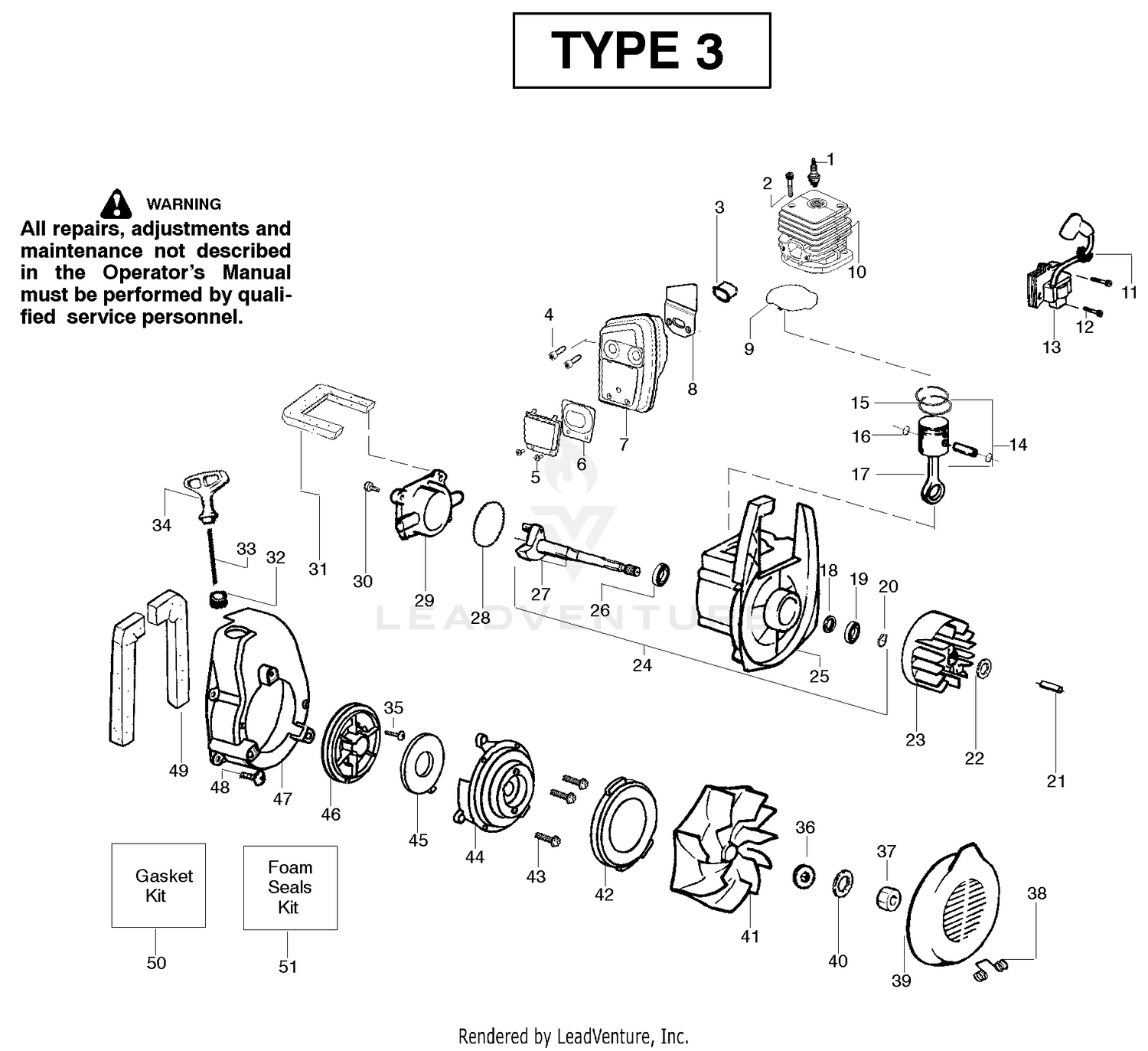

| Ref | Part Number | Description |
|---|
| 1 |
3217-6 |
NUT-HEX Price: $1.19 |
| 1 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 2 |
5-1675 |
DISCONTINUE Price: Call Us |
| 2 |
530015953 |
Screw Price: $1.99 |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 3 |
530055191 |
Insulator-Heat Price: $1.99 |
| 4 |
32140-79 |
Screw Price: Call Us |
| 4 |
530016387 |
Screw-Muffler-Internal Price: $1.99 |
| 5 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 5 |
530015241 |
Screw Price: $1.99 |
| 6 |
3217-7 |
NUT-HEX Price: $0.28 |
| 7 |
5-1640 |
DISCONTINUED Price: Call Us |
| 8 |
3290-255 |
PIN-COTTER, HAIR Price: $7.89 |
| 8 |
530071458 |
Gasket-Baffle (kit) Price: $5.99 |
| 9 |
5-3998 |
DISCONTINUED Price: Call Us |
| 9 |
530071458 |
Gasket-Cylinder (kit) Price: $5.99 |
| 10 |
5-4000 |
DISCONTINUED Price: Call Us |
| 10 |
530071457 |
Kit-Cylinder Price: $11.99 |
| 11 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 11 |
530019182 |
Grommet-Ign. Module Price: $1.99 |
| 12 |
3272-13 |
PIN-COTTER This part replaces 3272-14. Price: $0.25 |
| 12 |
530016357 |
Screw-Ignition Module Price: $1.99 |
| 13 |
5-2723 |
DISCONTINUED Price: Call Us |
| 13 |
530035505 |
Ignition Module Price: $29.99 |
| 14 |
5-1657 |
DISCONTINUED Price: Call Us |
| 15 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 15 |
8-5149 |
DISCONTINUED This part replaces 4-4379. Price: Call Us |
| 16 |
5-3896 |
DISCONTINUED Price: Call Us |
| 16 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 17 |
38-7410 |
DISCONTINUED This part replaces 3-8597. Price: Call Us |
| 17 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 18 |
3-8596 |
SPRING-COMPRESSION Price: $29.97 |
| 18 |
530019264 |
Seal-Crankcase Price: $2.99 |
| 19 |
5-3942 |
DISCONTINUED Price: Call Us |
| 19 |
530055728 |
Bearing-Outer Price: $6.99 |
| 20 |
5-3963 |
DISCONTINUED Price: Call Us |
| 20 |
530015941 |
Retainer Ring-C'shaft Price: $1.99 |
| 21 |
5-1618 |
DISCONTINUED Price: Call Us |
| 21 |
530016190 |
Spacer-Flywheel Price: $2.99 |
| 22 |
3218-7 |
NUT-JAM Price: $3.86 |
| 22 |
530015149 |
Washer Price: $1.99 |
| 23 |
3253-9 |
WASHER-LOCK Price: $1.02 |
| 23 |
530047534 |
FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 24 |
3-8635 |
DISCONTINUED Price: Call Us |
| 25 |
119-4162 |
SCREW-CARR This part replaces 3231-25. Price: $1.73 |
| 26 |
5-1647 |
DISCONTINUED Price: Call Us |
| 26 |
530032125 |
Bearing-Inner Price: $11.99 |
| 27 |
5-2932 |
DISCONTINUED Price: Call Us |
| 27 |
530012452 |
Assy-Crankshaft Price: $24.99 |
| 28 |
3-8623 |
DISCONTINUED Price: Call Us |
| 28 |
530071458 |
O-ring-C/case (kit) Price: $5.99 |
| 29 |
5-2931 |
DISCONTINUED Price: Call Us |
| 29 |
545064601 |
Cover-Crankcase Price: $3.99 |
| 30 |
3-8595 |
DISCONTINUED Price: Call Us |
| 30 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 31 |
5-3941 |
DISCONTINUED Price: Call Us |
| 31 |
530071459 |
Foam-219mm (kit) Price: $4.99 |
| 32 |
3-8607 |
DISCONTINUED Price: Call Us |
| 32 |
530029182 |
Eyelet-Flange Price: $1.99 |
| 33 |
5-3953 |
DISCONTINUED Price: Call Us |
| 34 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 34 |
530049488 |
Handle-Starter Price: $1.99 |
| 35 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 35 |
530016391 |
Screw-Rope Price: $1.99 |
| 36 |
323-6 |
SCREW-HH Price: $0.66 |
| 36 |
530016402 |
Washer-Belleville Price: $2.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
530626605 |
Nut Price: $1.99 |
| 38 |
323-7 |
SCREW-HH Price: $0.65 |
| 38 |
530402043 |
Spring-Return Cover Price: $2.99 |
| 39 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 39 |
530049313 |
Inlet Door Price: $4.99 |
| 40 |
5-3835 |
DISCONTINUED Price: Call Us |
| 40 |
530016279 |
Washer-Flat Price: $1.99 |
| 41 |
5-3824 |
DISCONTINUED Price: Call Us |
| 41 |
530069817 |
Assy-Impeller Price: $12.99 |
| 42 |
5-3950 |
DISCONTINUED Price: Call Us |
| 42 |
545078801 |
Seal-Ring Price: $3.99 |
| 43 |
11-4929 |
DISCONTINUED This part replaces 5-3944. Price: Call Us |
| 43 |
530016349 |
Screw Price: $1.99 |
| 44 |
5-2186 |
REEL BEARING Price: $45.95 |
| 44 |
545079101 |
Housing-Pulley Price: $6.99 |
| 45 |
5-3838 |
DISCONTINUED Price: Call Us |
| 45 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 46 |
253-121 |
DISCONTINUED Price: Call Us |
| 46 |
545150201 |
PULLEY STARTER This part replaces 530071466. Price: $8.99 |
| 47 |
5-2182 |
DISCONTINUED Price: Call Us |
| 47 |
545079001 |
Fan Housing Price: $7.99 |
| 48 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 48 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 49 |
3296-45 |
NUT-HEX Price: $3.79 |
| 49 |
530071459 |
Foam-182mm (kit) Price: $4.99 |
| 50 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 51 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 52 |
3220-3 |
NUT-HJ Price: $0.28 |
| 53 |
5-1637 |
DISCONTINUED Price: Call Us |
| 54 |
5-3915 |
DISCONTINUED Price: Call Us |
| 55 |
5-3918 |
DISCONTINUED Price: Call Us |
| 56 |
5-3837 |
DISCONTINUED Price: Call Us |
| 57 |
5-3964 |
DISCONTINUED Price: Call Us |
| 58 |
322-10 |
SCREW-HH Price: $0.70 |
| 59 |
5-1703 |
DISCONTINUED Price: Call Us |
| 60 |
2-1590 |
DISCONTINUED Price: Call Us |
| 61 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 62 |
322-2 |
SCREW-HH Price: $0.69 |
| 63 |
3-9381 |
DISCONTINUED Price: Call Us |
| 64 |
323-5 |
SCREW-HH Price: $0.41 |
| 65 |
3279-2 |
DISCONTINUED Price: Call Us |
| 66 |
3-8608 |
DISCONTINUED Price: Call Us |
| 67 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 68 |
6-9960 |
DISCONTINUED Price: Call Us |
