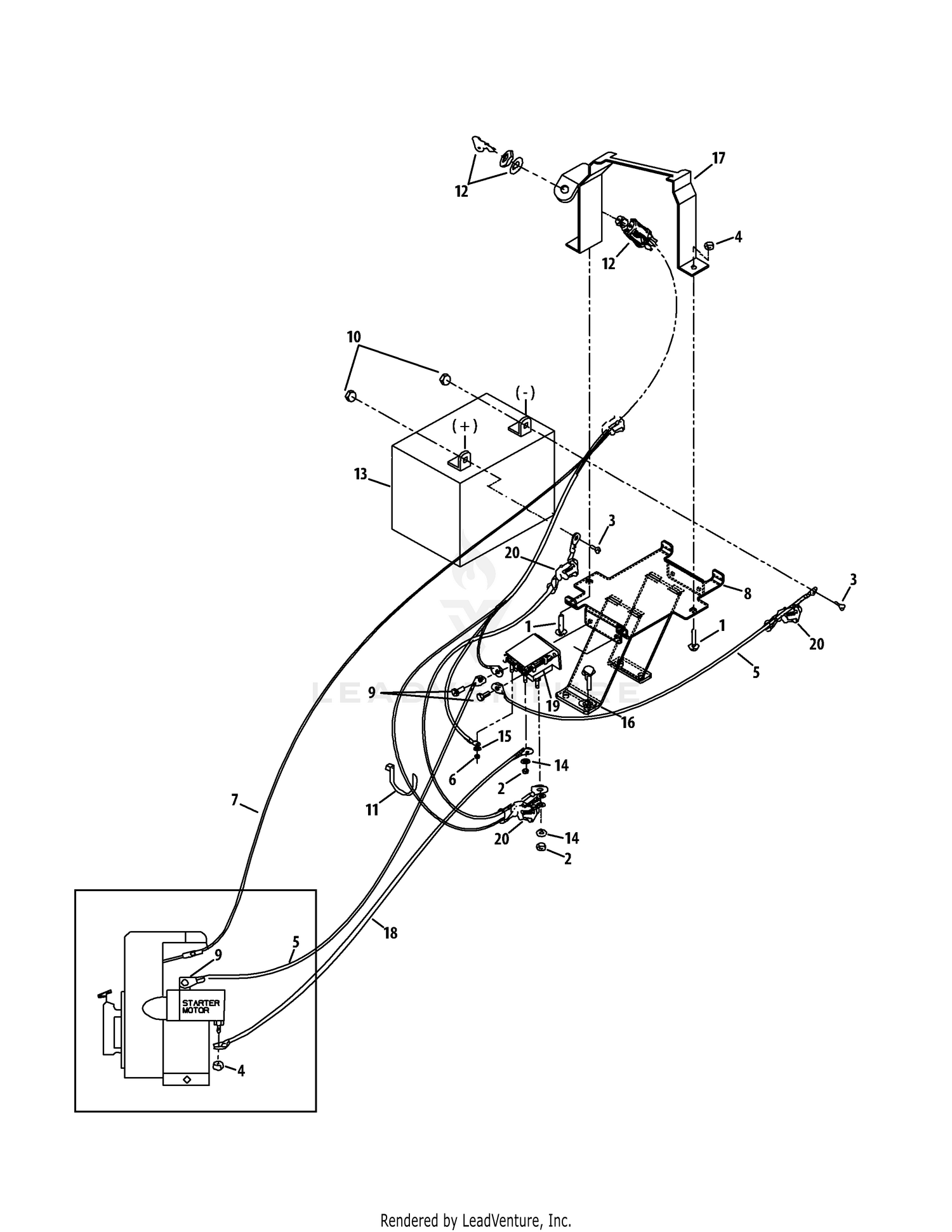

| Ref | Part Number | Description |
|---|
| 1 |
1186073 |
Carriage Screw 1.4-20 x 1.25 Price: $2.67 |
| 2 |
912-3057 |
NUT-5/16X 24 This part replaces 1186211. Price: $5.94 |
| 3 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 4 |
1186389 |
Hex Locknut 1.4-20 Price: $3.05 |
| 5 |
1901202 |
Cable (Ground Wire) Price: $30.69 |
| 6 |
GW-9853 |
Hexlock Washer Nut, 10-32 Price: $6.01 |
| 7 |
725-04346 |
Electric Start Harness Not Available Price: |
| 8 |
686-04024-0638 |
BATTERY BRACKET ASSEMBLY (MTD RED) Not Available Price: |
| 9 |
710-0599 |
Self-tapping Screw 1.4-20 x .5 Price: $3.86 |
| 10 |
712-3006 |
HEX NUT Price: $4.05 |
| 11 |
725-0157 |
Cable Tie Price: $3.46 |
| 12 |
925-0267B |
Ignition Switch Price: $33.31 |
| 13 |
925-1707D |
BATTERY Not Available Price: |
| 14 |
936-0119 |
Lock Washer 5/16 Price: $4.29 |
| 15 |
936-0147 |
EXTERNAL WASHER #10 Not Available Price: |
| 16 |
736-0607 |
External Lock Washer 5.16 Price: $3.66 |
| 17 |
1900873 |
Keyswitch Clamp Price: $142.31 |
