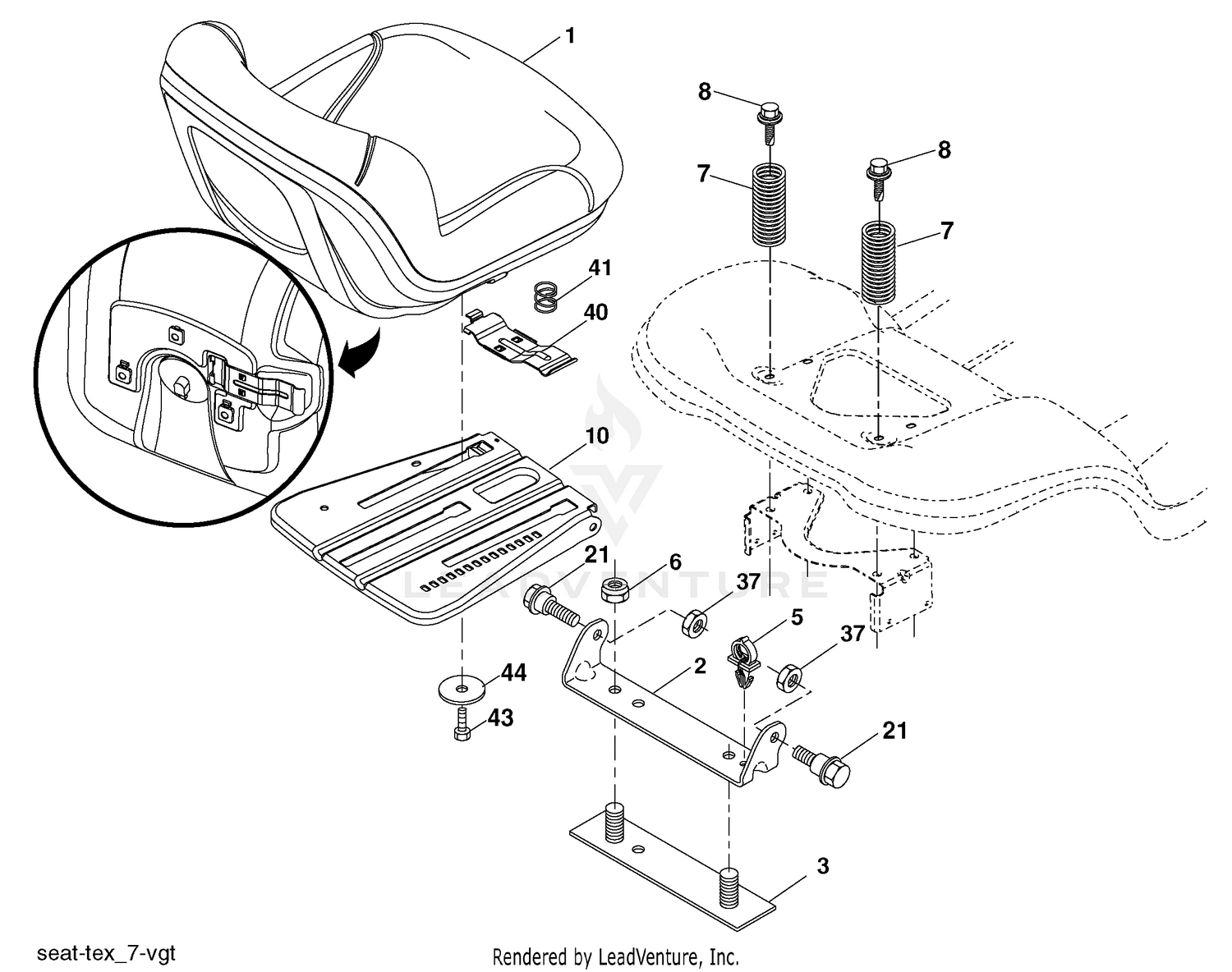

| Ref | Part Number | Description |
|---|
| 1 |
197530 |
Seat Price: Call Us |
| 2 |
180166 |
Bracket Pivot Fender Price: Call Us |
| 3 |
140675 |
Strap, Asm Fender Price: Call Us |
| 5 |
145006 |
Clip, Push In, Hinged Price: Call Us |
| 6 |
73800600 |
Nut, Lock W/Ins. 3/8-16 unc Price: Call Us |
| 7 |
124181X |
Spring, Seat Cprsn Price: Call Us |
| 8 |
171877 |
Bolt 5/16-18 uncx 3/4 w/Sems Price: Call Us |
| 010 |
131-6557 |
ALTERNATOR ASM This part replaces 98-9474. Price: $443.05 |
| 10 |
196977 |
Pan, Seat Price: Call Us |
| 020 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
171852 |
Bolt, Shoulder 5/16-18 Price: Call Us |
| 030 |
98-7708 |
NUT Price: $7.76 |
| 37 |
73800500 |
Nut, Lock 5/16-18 unc Price: Call Us |
| 040 |
98-7709 |
COLLAR Price: $8.79 |
| 40 |
197661 |
Handle Slide Seat Price: Call Us |
| 41 |
198200 |
Spring Latch Seat Price: Call Us |
| 43 |
74760612 |
Bolt Fin Hex 3/8-16 unc x 3/4 Price: Call Us |
| 050 |
107-0136 |
ROTOR ASM This part replaces 98-7710. Price: $268.62 |
| 060 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 070 |
98-7712 |
BEARING-BALL Price: $31.09 |
| 080 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 090 |
98-7714 |
FRAME-END, DRIVE Price: $311.88 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
98-7718 |
BEARING-BALL Price: $34.82 |
| 140 |
98-7719 |
FRAME-END Price: $88.65 |
| 150 |
98-7720 |
COVER-END Price: $39.58 |
| 160 |
98-7721 |
RECTIFIER ASM Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
98-7723 |
HOLDER-BRUSH Price: $52.72 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
