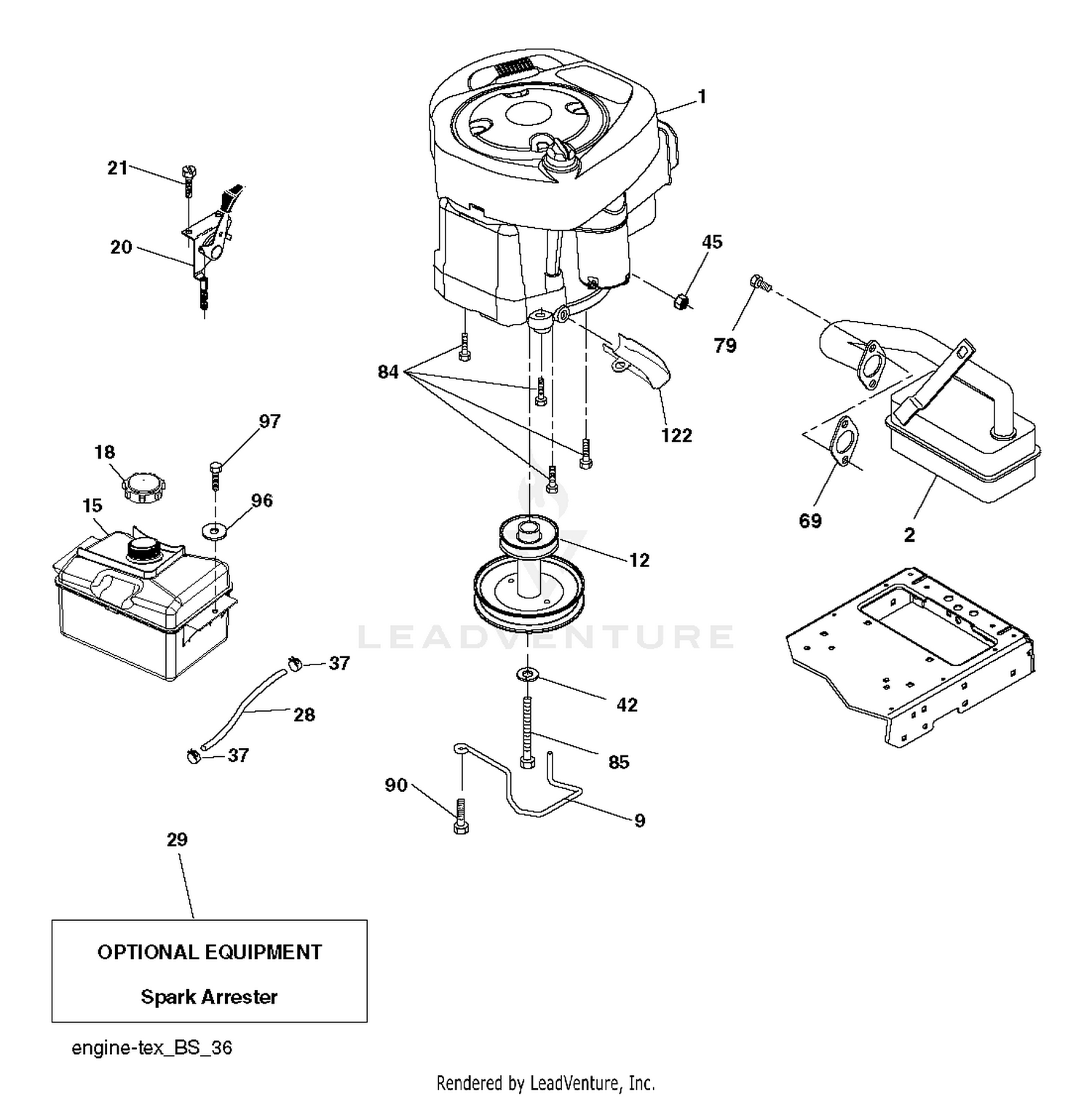

| Ref | Part Number | Description |
|---|
| 1 |
84-1880 |
FAN Price: $250.88 |
| 2 |
532179758 |
MUFFLER.B&S.MODEL.21.11HP.OHV Price: $69.99 |
| 2 |
84-1890 |
DISCONTINUED Price: Call Us |
| 3 |
84-1930 |
FAN HUB *O Price: $111.65 |
| 4 |
32120-10 |
RING-SNAP Price: $1.29 |
| 5 |
36-7290 |
BEARING Price: $40.48 |
| 6 |
322-4 |
SCREW-HH Price: $0.35 |
| 7 |
84-1940-03 |
HUB ASM This part replaces 84-1940. Price: $150.60 |
| 8 |
32128-20 |
NUT-HF Price: $0.99 |
| 9 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 9 |
532194319 |
KEEPER.BELT.ENGINE.3.25 (3 2) Price: $11.99 |
| 10 |
66-2440 |
DISCONTINUED Price: Call Us |
| 11 |
63-7380 |
RESERVE TANK W/ENG Price: $114.51 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
532140186 |
PULLEY.ENG.CL.MECH.SLVR.LT/YT Price: $99.99 |
| 13 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 14 |
63-6760 |
FITTING-CONNECTOR Price: $61.52 |
| 15 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 15 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532407545. Price: $44.99 |
| 16 |
63-7790 |
SCREW-CAP Price: $1.46 |
| 17 |
71-2910-03 |
RH REAR ENGINE ANGLE This part replaces 71-2910. Price: $22.46 |
| 18 |
117-2738 |
ENGINE-MITSUBISHI (SERVICE) This part replaces 94-3558. Price: $11,452.38 |
| 18 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532430220. Price: $22.99 |
| 19 |
66-2320-03 |
LH FRONT MOUNT ASM This part replaces 66-2320. Price: $62.36 |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 20 |
532176636 |
CONTROL.TH/CK.C.BLACK This part replaces 532183897. Price: $27.99 |
| 21 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 23 |
84-1870 |
DISCONTINUED Price: Call Us |
| 24 |
63-6720-03 |
IDLER LEVER This part replaces 63-6720. Price: $66.34 |
| 25 |
323-6 |
SCREW-HH Price: $0.66 |
| 26 |
323-8 |
SCREW-HH Price: $1.20 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 28 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 28 |
63-8140 |
PULLEY-IDLER Price: $47.94 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
92-8876 |
V-BELT Price: $33.06 |
| 30 |
70-8560 |
DISCONTINUED Price: Call Us |
| 31 |
52-2340 |
PIVOT ARM SPACER Price: $11.14 |
| 32 |
67-4700 |
GLOW LAMP This part replaces 66-8700. Price: $117.35 |
| 33 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 35 |
321-4 |
SCREW-HH Price: $0.99 |
| 36 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 37 |
321-3 |
SCREW-HH Price: $0.28 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
5-3637 |
SPACER Price: $2.23 |
| 39 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 40 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 41 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 42 |
57-6390 |
NUT-JAM Price: $0.89 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 43 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 44 |
71-1520 |
RESERVOIR CAP Price: $21.69 |
| 45 |
32105-8 |
SCREW-SHH Price: $1.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 46 |
32149-7 |
NUT-KEPS Price: $0.27 |
| 47 |
3217-5 |
NUT-HEX Price: $0.25 |
| 48 |
3254-2 |
WASHER-LOCK, INTERNAL Price: $0.27 |
| 69 |
532272293 |
GASKET.ENG.1.313 ID.TIN PLATED This part replaces 532165291. Price: $8.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 96 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 97 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
