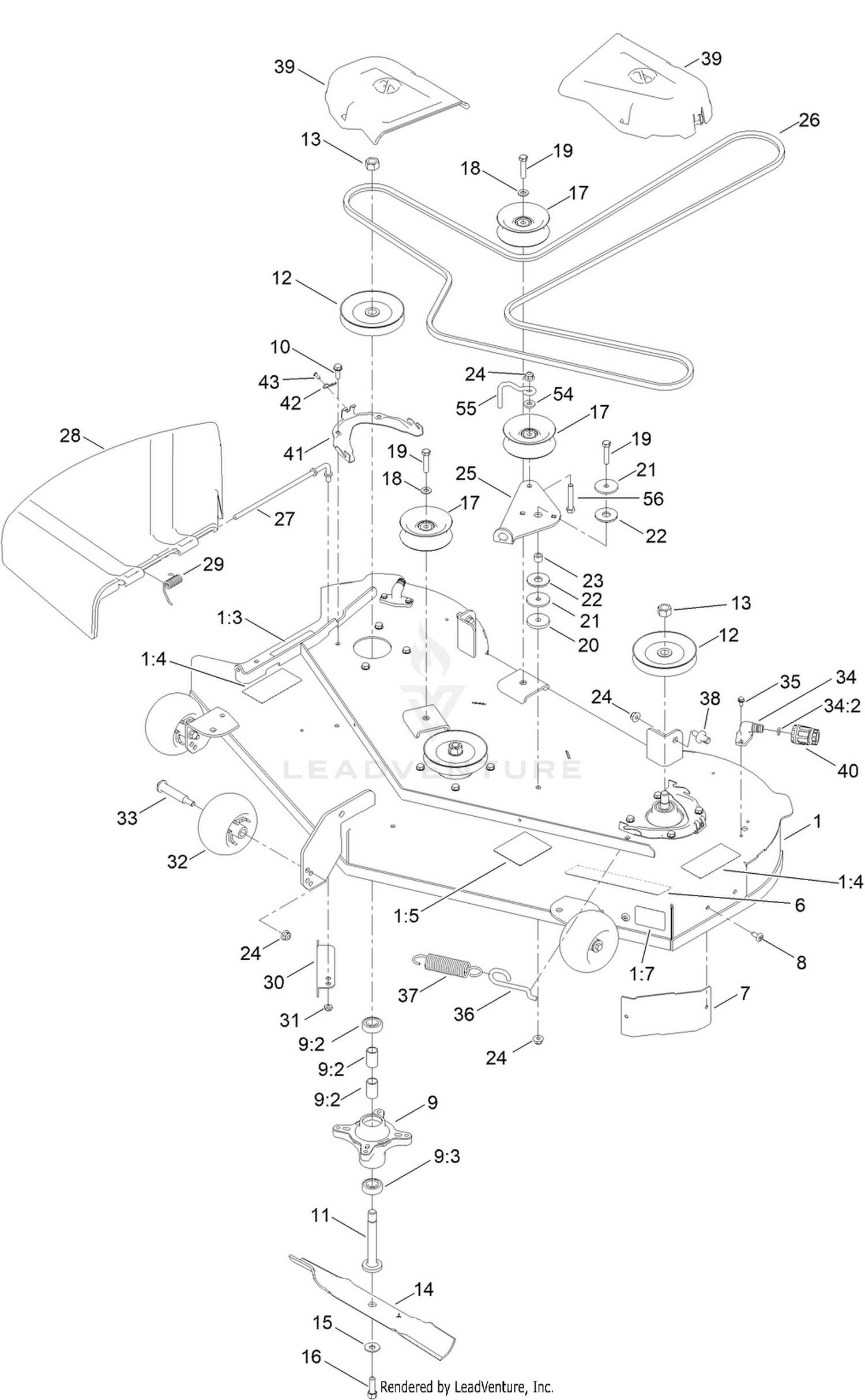

50in Deck and Decal Assembly
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 139-3208 | DECAL-DECK Price: $3.42 |
| 7 | 139-2448-03 | BAFFLE-CORNER Price: $15.65 |
| 8 | 138-9753 | SCREW Price: $0.39 |
| 9 | 139-3214 | SPINDLE ASM Price: $51.71 |
| 10 | 32144-41 | SCREW-TAPTITE Price: $4.79 |
| 11 | 117-7268 | SHAFT-SPINDLE Price: $19.98 |
| 12 | 139-7454 | PULLEY Price: $13.43 |
| 13 | 3219-6 | NUT-HEX Price: $2.78 |
| 14 | 115-5059-03 | BLADE-HI LIFT Price: $24.06 |
| 15 | 3290-465 | WASHER-BELLEVILLE Price: $2.89 |
| 16 | 26-0671 | SCREW-HH Price: $7.99 |
| 17 | 132-9420 | PULLEY-IDLER, FLAT Price: $25.16 |
| 18 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 19 | 323-9 | SCREW-HH Price: $1.29 |
| 20 | 110-9981 | WASHER-PLAIN Price: $13.99 |
| 21 | 63-7400 | WASHER-REBOUND Price: $1.70 |
| 22 | 114-0463 | WASHER-FRICTION, COMPOSITE Price: $4.79 |
| 23 | 115-4986 | SPACER Price: $1.39 |
| 24 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 25 | 138-7262 | ARM-IDLER Price: $12.02 |
| 26 | 119-8820 | V-BELT Price: $48.15 |
| 27 | 137-2019 | ROD-PIVOT Price: $8.15 |
| 28 | 138-7502 | DEFLECTOR-DISCHARGE Price: $41.95 |
| 29 | 138-7268 | SPRING-TORSION Price: $1.69 |
| 30 | 138-9800-03 | BAFFLE-CUTOFF Price: $6.71 |
| 31 | 121-4600 | NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 32 | 1-603299 | ROLLER-SCALP, ANTI Price: $21.99 |
| 33 | 112-3977 | BOLT-SHOULDER Price: $7.37 |
| 34 | 133-9289 | FITTING-WASHOUT Price: $3.86 |
| 35 | 32144-4 | SCREW-HWH Price: $1.29 |
| 36 | 138-7266 | SPRING-RETURN, HOOK Price: $2.95 |
| 37 | 138-7264 | SPRING-EXTENSION Price: $5.10 |
| 38 | 139-5871 | PIN-DECK Price: $1.66 |
| 39 | 144-1906 | COVER-BELT Price: $7.65 |
| 40 | 95-3270 | CONNECTOR-HOSE Price: $22.99 |
| 41 | 139-3272-03 | BRACKET-COVER, BELT Price: $7.82 |
| 42 | 144-1944 | PIN-HAIR Price: $0.32 |
| 43 | 94-6961 | SCREW Price: $0.89 |
| 54 | 138-7207 | SPACER-HUB, BLOWER Price: $0.56 |
| 55 | 138-7270 | GUIDE-BELT, IDLER Price: $1.69 |
