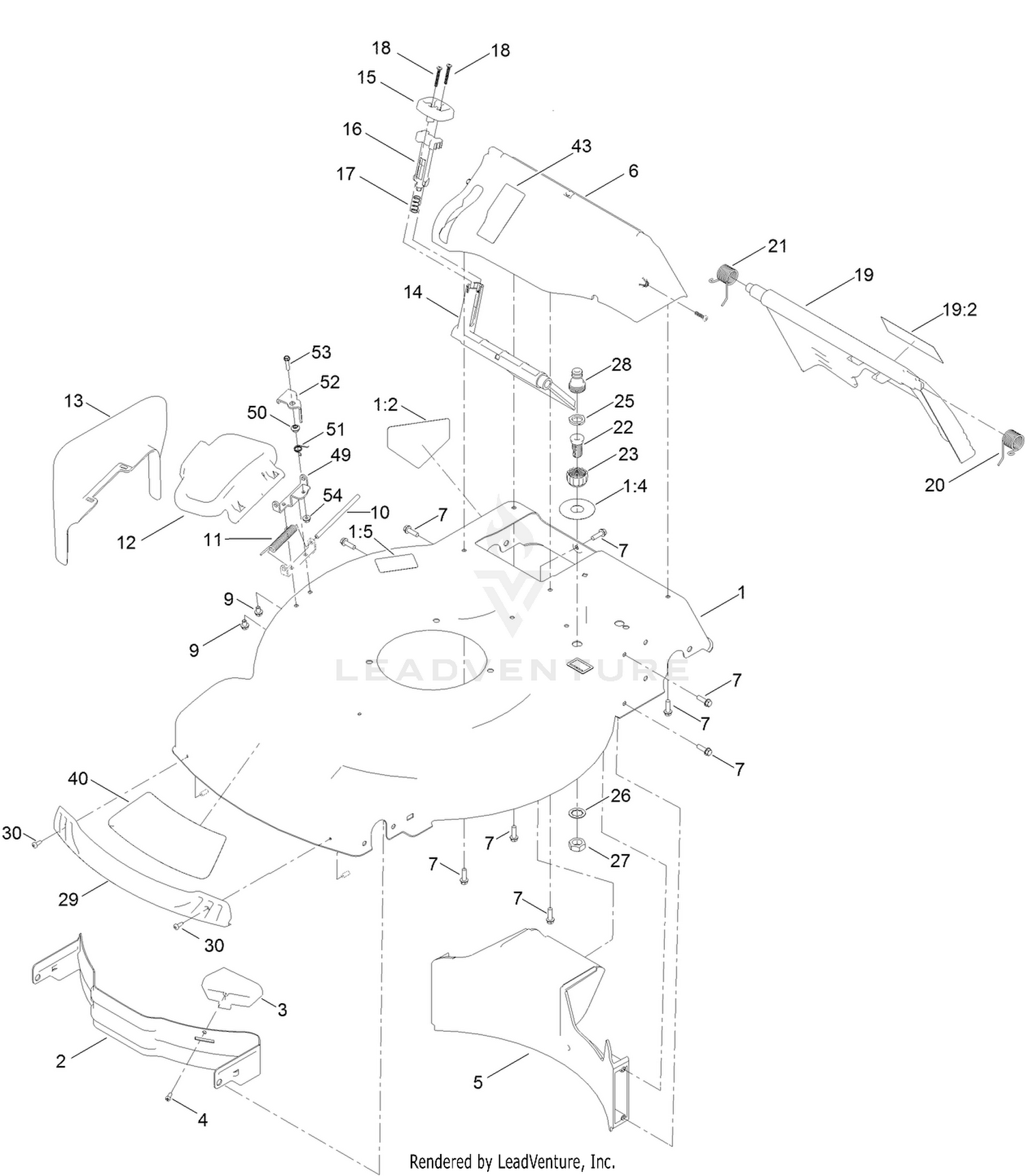

| Ref | Part Number | Description |
|---|
| 1 |
130-2390 |
HOUSING ASM Price: $135.64 |
| 2 |
115-4667-01 |
BAFFLE-FRONT Price: $16.29 |
| 3 |
115-4672 |
KICKER-FRONT Price: $7.27 |
| 4 |
139-1703 |
SCREW-PLASTIC, PPH Price: $0.29 |
| 5 |
139-8982 |
BAFFLE-REAR Price: $10.31 |
| 6 |
136-5882 |
CHUTE-RECYCLE Price: $13.33 |
| 7 |
137-3099 |
SCREW-PLASTITE, HWH Price: $0.61 |
| 9 |
137-4795 |
SCREW Price: $0.29 |
| 10 |
136-8672 |
PIN-HINGE, DEFLECTOR This part replaces 99-5291. Price: $1.99 |
| 11 |
99-5293 |
SPRING-TORSION Price: $9.99 |
| 12 |
138-5316 |
DEFLECTOR-DISCHARGE, SIDE Price: $4.92 |
| 13 |
115-8447 |
CHUTE-DISCHARGE, SIDE Price: $11.31 |
| 14 |
114-7960 |
DEFLECTOR-RECYCLE Price: $9.41 |
| 15 |
114-7958 |
KNOB-RECYCLE Price: $2.38 |
| 16 |
114-7959 |
LATCH-RECYCLE Price: $3.38 |
| 17 |
117-1031 |
SPRING-COMPRESSION Price: $1.90 |
| 18 |
32104-120 |
SCREW-PPH Price: $1.49 |
| 19 |
137-9139 |
REAR DOOR ASM Price: $15.80 |
| 20 |
115-2859 |
SPRING-TORSION Price: $3.33 |
| 21 |
114-7924 |
SPRING-TORSION Price: $2.22 |
| 22 |
112-6400 |
PORT-WASHOUT Price: $3.06 |
| 23 |
112-6401 |
COUPLING-HOSE, WASHOUT PORT Price: $1.61 |
| 25 |
112-6438 |
WASHER-SEAL, WASHOUT PORT Price: $1.19 |
| 26 |
139-1721 |
WASHER-LOCK, INT TOOTH Price: $0.32 |
| 27 |
3218-6 |
NUT-JAM Price: $0.61 |
| 28 |
112-6437 |
ADAPTER-CONNECT, QUICK Price: $7.85 |
| 29 |
114-7987 |
BUMPER Price: $8.08 |
| 30 |
105-6849 |
SCREW-FORMING, THREAD Price: $0.60 |
| 40 |
120-3324 |
DECAL Price: $4.49 |
| 43 |
125-5026 |
DECAL Price: $1.22 |
| 49 |
138-3293 |
BRACKET-LOCKOUT Price: $2.87 |
| 50 |
107-7463 |
SPACER Price: $2.27 |
| 51 |
107-7462 |
SPRING-TORSION Price: $5.35 |
| 52 |
138-3292 |
LEVER-LOCKOUT Price: $1.84 |
| 53 |
106-9169 |
SCREW-HWH Price: $5.20 |
