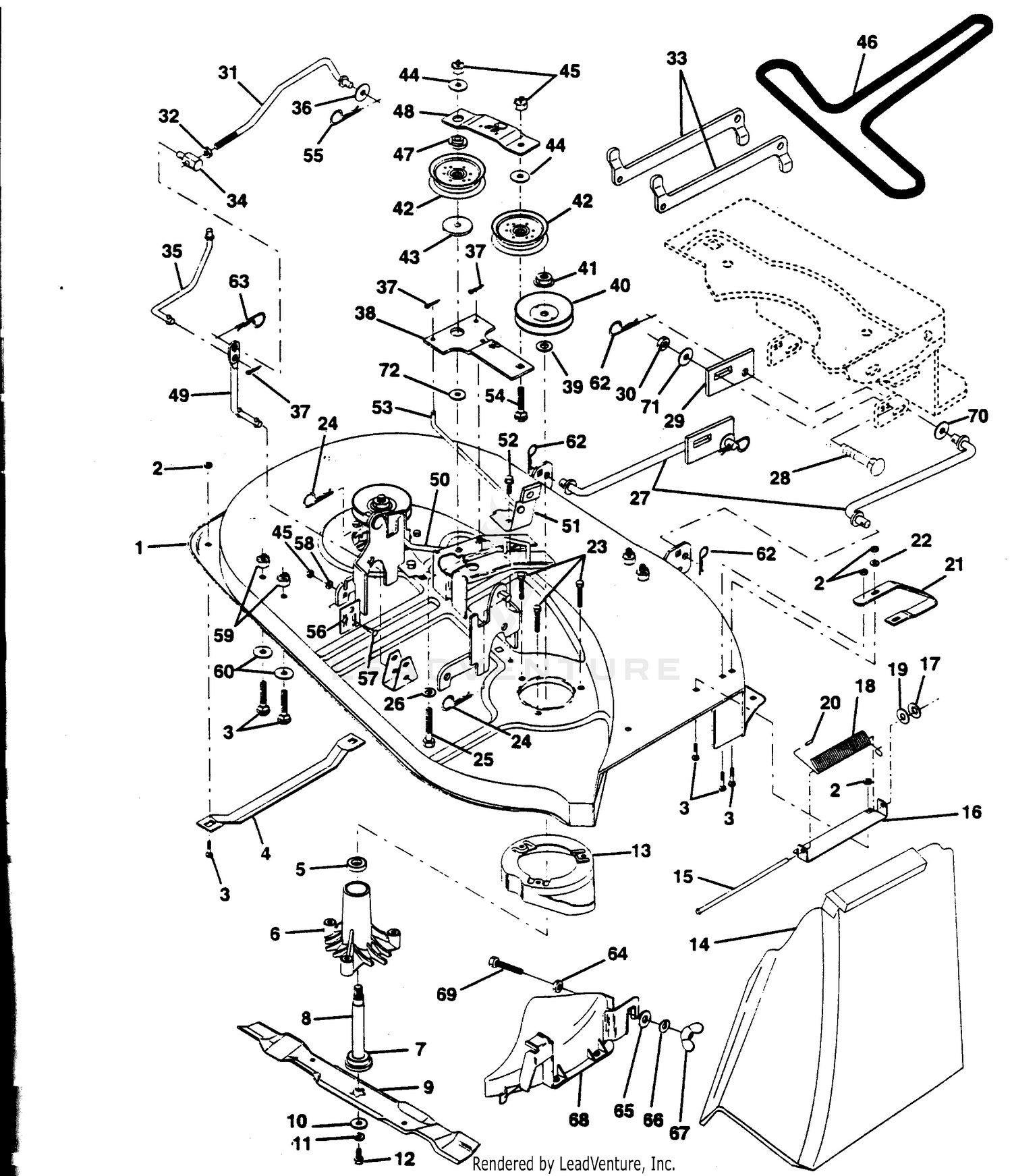

| Ref | Part Number | Description |
|---|
| 1 |
532188249 |
KIT.DECK.WLDMNT.38"LR This part replaces 532142830. Price: $220.99 |
| 2 |
873800500 |
Nut,Lock Hex w/Ins 5/16-18 Price: $2.69 |
| 3 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 4 |
532007631 |
Runner, Mower LH This part replaces 532125074. Price: $11.99 |
| 5 |
532110485 |
Bearing Price: $7.99 |
| 6 |
532128774 |
Housing, Mandrel Price: $22.99 |
| 7 |
738220419 |
BALL-BEARING 6204-2RS This part replaces 532129895. Price: $14.99 |
| 8 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 9 |
532134148 |
Blade Price: $14.99 |
| 10 |
112-0179 |
PAN-OIL Price: $321.56 |
| 10 |
532140296 |
Washer, Hardened Price: $2.99 |
| 11 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 12 |
532850857 |
Bolt, Hex 3/8-24 x 1-1/4 Grade 8 Price: $1.99 |
| 13 |
532174493 |
Stripper, Mower This part replaces 532140329. Price: $3.99 |
| 14 |
532106736 |
Shield, Deflector Price: $25.99 |
| 15 |
532106735 |
Rod, Hinge Price: $4.99 |
| 16 |
532137607 |
Bracket Assembly, Deflector Price: $3.99 |
| 17 |
532110452 |
Pushnut Price: $1.99 |
| 18 |
532123713 |
Spring, Deflector Price: $3.99 |
| 19 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 20 |
532105304 |
Cap, Sleeve Price: $2.99 |
| 21 |
532128772 |
Runner, R.H. Price: $5.99 |
| 22 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111216. Price: $2.02 |
| 23 |
817580520 |
Bolt 5/16-18 x 1.25 Price: $2.99 |
| 24 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 25 |
874760636 |
Bolt, Hex 3/8-16 UNC x 2-1/4 This part replaces 874600636. Price: $2.99 |
| 26 |
819131612 |
Washer 13/32 x 1 x 12 Gauge Price: $3.99 |
| 27 |
532139756 |
Link Assembly, Front Price: $14.02 |
| 28 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 29 |
532139757 |
Plate, Slide Link Price: $2.99 |
| 30 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 30 |
98-9350 |
BOLT This part replaces 107-9065. Price: $0.98 |
| 31 |
532140915 |
Clutch Rod, Primary Price: $13.99 |
| 32 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 33 |
532132559 |
Arm, Suspension, Rear Price: $4.99 |
| 34 |
532133604 |
Trunnion 3/8-16 Price: $17.99 |
| 35 |
532132554 |
Clutch Rod, Secondary Price: $11.99 |
| 36 |
819131316 |
Washer 13/32 x 13/16 x 16 Gauge Price: $2.99 |
| 37 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 38 |
532133840 |
Idler Arm Price: $4.99 |
| 39 |
532187690 |
SPACER, MANDREL This part replaces 532129963. Price: $1.99 |
| 40 |
114-8151 |
PLUG-DRAIN This part replaces 108-6572. Price: $9.99 |
| 40 |
532173435 |
MANDREL.PULLEY.38.YELLOW This part replaces 532129206. Price: $7.99 |
| 41 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 42 |
532121316 |
Pulley, Flat Idler Price: $22.99 |
| 43 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 44 |
819131612 |
Washer 13/32 x 1 x 12 Gauge Price: $3.99 |
| 45 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 46 |
532419271 |
V-BELT.DRIVE.MOWER.30" This part replaces 532126520. Price: $39.99 |
| 47 |
532133502 |
Spacer, Idler Arm Price: $2.99 |
| 48 |
532133503 |
Stiffener, Idler Arm Price: $3.99 |
| 49 |
532133551 |
Rod, Pivot Price: $4.99 |
| 50 |
532131289 |
Rod, Brake, L.H. Price: $11.99 |
| 50 |
98-7524 |
GASKET This part replaces 110-3704. Price: $5.09 |
| 51 |
532130840 |
Brake Assembly Price: $8.99 |
| 52 |
539976934 |
HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99 |
| 53 |
532131288 |
Rod, Brake, R.H. Price: $5.99 |
| 54 |
872110614 |
Bolt, Carriage 3/8-16 x 1-3/4 Grade 5 Price: $3.99 |
| 55 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 56 |
532136782 |
Adjustment Plate, Rear Link, L.H. Price: $2.99 |
| 57 |
872110608 |
Bolt, Carriage 3/8-16 x 1 Gr. 5 This part replaces 872140608. Price: $3.99 |
| 58 |
734117201 |
WASHER This part replaces 819131212. Price: $1.99 |
| 59 |
873800500 |
Locknut, Hex, with Washer Insert 5/16-18 Price: $2.69 |
| 60 |
108-1401 |
BASE-FILTER Price: $71.88 |
| 60 |
819111112 |
Washer 11/32 x 11/16 x 12 Gauge Price: $2.99 |
| 62 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 63 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 64 |
873680600 |
Nut This part replaces 873930600. Price: $1.99 |
| 65 |
819132012 |
Washer 13/32 X 1-1/4 X 12 Ga This part replaces 819132016. Price: $2.99 |
| 66 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 67 |
532135651 |
Nut, Wing Price: $3.99 |
| 68 |
532132803 |
Cover, Asm Mulching Price: $45.99 |
| 69 |
874930620 |
Bolt, Hex Head 3/8-16 x 1-1/4 Price: $3.99 |
| 70 |
819162016 |
Washer 1/2 x 1-1/4 x 16 Gauge Price: $3.99 |
| 70 |
98-7526 |
BOLT Price: $0.80 |
| 71 |
819131610 |
Washer, Flat 13/32 x 1 x 10 Gauge Price: $3.99 |
| 72 |
532178515 |
Washer Hardened This part replaces 532133943. Price: $2.99 |
