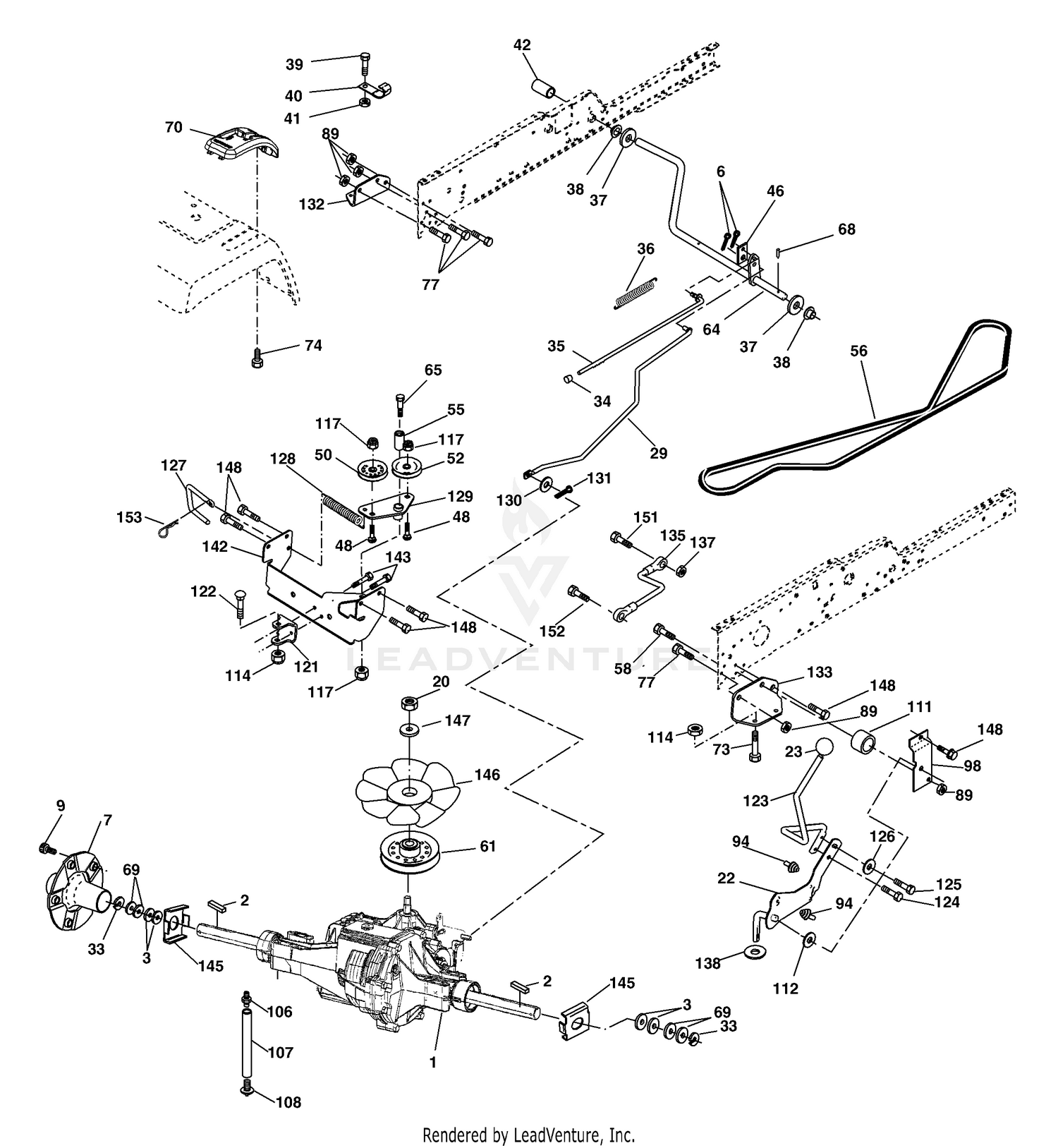

| Ref | Part Number | Description |
|---|
| 1 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 2 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 3 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
251-259 |
BEARING-BALL Price: $13.67 |
| 6 |
3210-7 |
SCREW-HH Price: $0.61 |
| 6 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 7 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 7 |
532140507 |
HUB ASMBLY Price: $149.99 |
| 8 |
322-17 |
SCREW-HH Price: $2.62 |
| 9 |
3219-2 |
NUT-HEX Price: $0.37 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 10 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 12 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 13 |
340-99 |
FITTING-HYD, 90 DEG Price: $32.27 |
| 14 |
110-9695 |
HUB-PUMP This part replaces 33-4380. Price: $55.09 |
| 15 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 16 |
3241-5 |
SCREW-SET Price: $0.61 |
| 17 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 18 |
46-6390-03 |
COUPLING-DRIVE ASM This part replaces 46-6390. Price: $80.79 |
| 19 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 20 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 20 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 21 |
322-6 |
SCREW-HH Price: $0.45 |
| 22 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 22 |
532180235 |
LOWER SHIFT LEVER ASM Price: $27.99 |
| 23 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 25 |
322-8 |
SCREW-HH Price: $1.26 |
| 26 |
321-2 |
SCREW-HH Price: $2.79 |
| 27 |
321-4 |
SCREW-HH Price: $0.99 |
| 28 |
54-9300-03 |
COVER-SHAFT, PUMP This part replaces 54-9300. Price: $31.70 |
| 29 |
532176600 |
BRAKE, ROD Price: $14.99 |
| 29 |
54-9290 |
BRACKET-MOUNTING Price: $16.99 |
| 30 |
237-80 |
O-RING Price: $6.10 |
| 31 |
68-8660 |
FITTING-HYD, 90 DEG Price: $181.88 |
| 32 |
237-81 |
O-RING Price: $2.76 |
| 33 |
68-8990 |
HEAD-FILTER Price: $153.83 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 34 |
23-9740 |
FILTER-OIL, HYDRAULIC Price: $13.14 |
| 34 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 35 |
353-987 |
FITTING-ELBOW, 90 Price: $74.72 |
| 35 |
532137648 |
PARKING BRAKE ROD Price: $9.99 |
| 36 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 36 |
532149412 |
SPRING DRIVE GROUND Price: $4.99 |
| 37 |
532121749 |
WASHER Price: $2.99 |
| 37 |
68-9650 |
HOSE-AXLE Price: $30.32 |
| 38 |
532150035 |
NYLINER Price: $3.99 |
| 38 |
70-2620 |
FITTING-HYD, 90 DEG Price: $116.72 |
| 39 |
323-7 |
SCREW-HH Price: $0.65 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH Price: $3.99 |
| 41 |
353-508 |
PLUG-HH Price: $7.96 |
| 41 |
873931000 |
Nut Centerlock 10-24 unc Price: $4.99 |
| 42 |
119-2880 |
TRANSMISSION ASM This part replaces 92-8947. Price: $4,321.31 |
| 42 |
532124782 |
NO LONGER AVAILABLE NLA Price: $24.03 |
| 43 |
32120-72 |
RING-SNAP Price: $2.09 |
| 44 |
86-7220 |
GEAR-PINION Price: $81.33 |
| 45 |
41-8760 |
GASKET Price: $5.99 |
| 46 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 46 |
532145170 |
RETAINER SPRING Price: $3.99 |
| 47 |
321-6 |
SCREW-HH Price: $0.25 |
| 48 |
3217-16 |
NUT-HEX Price: $0.25 |
| 48 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 49 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 50 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 50 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 51 |
28-9570-03 |
LEVER-PUMP This part replaces 28-9570. Price: $264.06 |
| 52 |
49-2040 |
SCREW-HWHTF This part replaces 11-9760. Price: $1.99 |
| 52 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 53 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 54 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 55 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 55 |
532105706 |
BEARING LT (2 2) Price: $5.99 |
| 56 |
46-8810 |
STOP-SPRING, LEAF Price: $9.17 |
| 56 |
532161597 |
BELT, V GROUND DRIVE Price: $39.99 |
| 57 |
237-42 |
O-RING Price: $2.78 |
| 58 |
237-22 |
O-RING Price: $2.43 |
| 58 |
874760724 |
BOLT.HEX.7/16-14.FINISHED Price: $3.99 |
| 59 |
237-30 |
O-RING Price: $2.50 |
| 60 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 61 |
532143995 |
PULLEY, TRANSAXLE Price: $27.99 |
| 64 |
532176601 |
SHAFT.ASM.PEDAL.BRAKE Price: $37.99 |
| 65 |
532179613 |
BOLT.SHLDR.3/8-16 Price: $4.99 |
| 68 |
532005142 |
ROLL PIN STD Price: $3.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532181788 |
CONSOLE AUTOMATIC YT.GT Price: $8.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 77 |
596238601 |
Bolts This part replaces 874780716. Price: $2.99 |
| 89 |
873680700 |
Nut Crownlock 7/16-14 unc Price: $2.99 |
| 94 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 98 |
532141004 |
SHIFT BRACKET Price: $3.99 |
| 106 |
532142918 |
O-RING KIT 70110 Price: $22.99 |
| 107 |
532154739 |
LINE.VENT.HYDRO-GEAR Price: $4.99 |
| 108 |
532142578 |
VENT CAP 70109 This part replaces 532142917. Price: $37.99 |
| 111 |
532156240 |
SPACER SHIFT LEVER VGTH Price: $2.99 |
| 112 |
532178558 |
WASHER NYLON HIGH TEMP Price: $4.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 117 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 122 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 123 |
532183254 |
ROD SHIFT Price: $24.99 |
| 124 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 125 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 126 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 127 |
532177362 |
LINK CONTROL CLUTCH Price: $7.99 |
| 128 |
532176624 |
SPRING DRIVE GRND Price: $4.99 |
| 129 |
532179473 |
BRACKET ARM IDLER TENSIONING Price: $22.99 |
| 130 |
819131016 |
WASHER Price: $2.99 |
| 131 |
596917601 |
Pins This part replaces 876020312. Price: $1.99 |
| 132 |
532175467 |
BRACKET MTG HYDRO 3500 LH VGT Price: $3.99 |
| 133 |
532175468 |
BRACKET MTG HYDRO 3500 RH VGT Price: $4.99 |
| 135 |
532177364 |
LINK ASM CONTROL HYDRO 3500 Price: $48.99 |
| 137 |
532124949 |
LOCKNUT Price: $3.99 |
| 138 |
532001370 |
THRUST WASHER Price: $4.99 |
| 142 |
532175469 |
STRAP TORQUE HT-3500 Price: $32.99 |
| 143 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 146 |
532140462 |
FAN 7" HYDRO Price: $9.99 |
| 147 |
532141322 |
WASHER Price: $3.99 |
| 148 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 151 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 152 |
532178705 |
BOLT HEX 5/16X1 W/PATCH Price: $2.99 |
