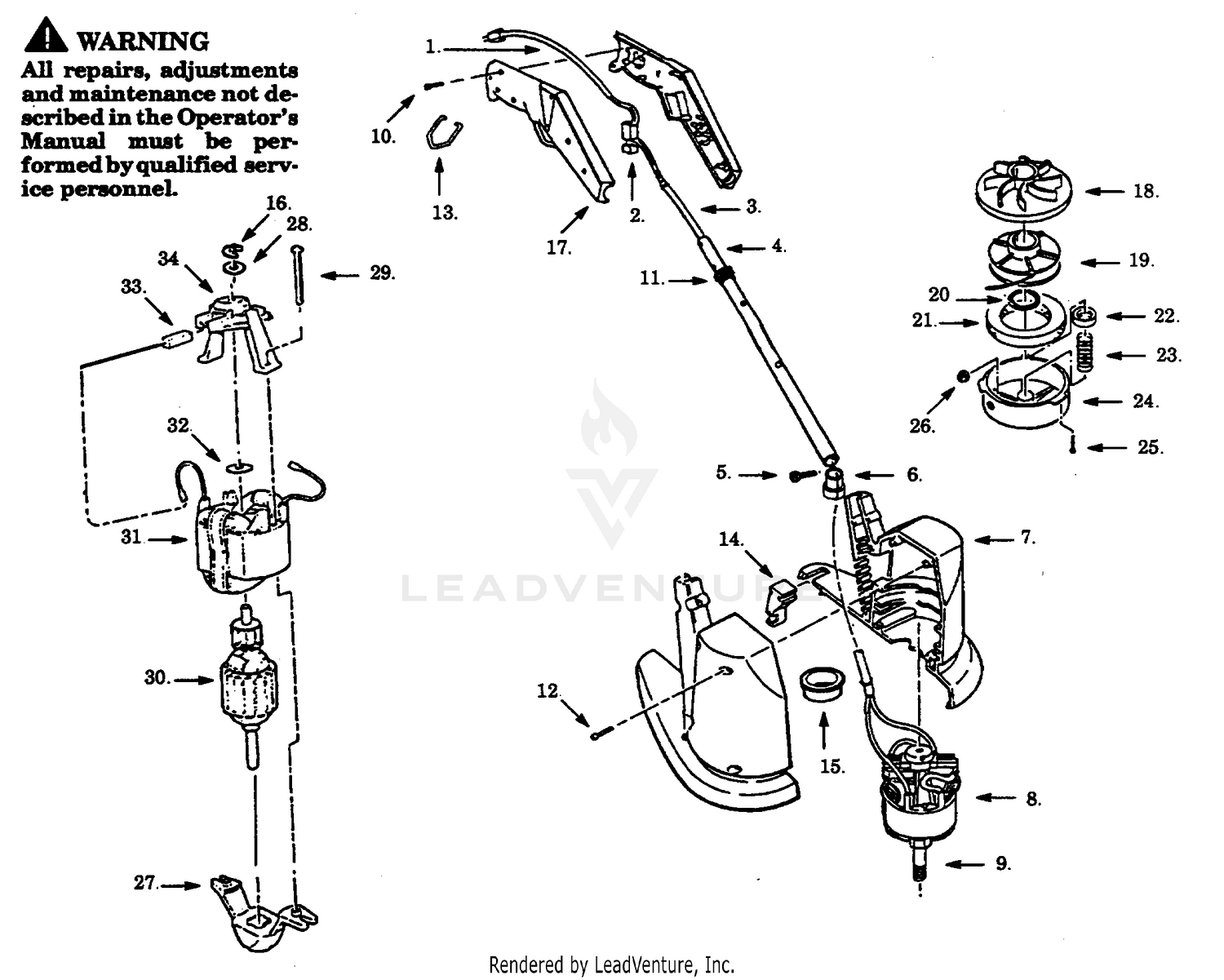

TRIMMER ASSEMBLY
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 125-3526-03 | SCRAPER-FULL Price: $66.76 |
| 1 | 534234501 | Power Cord Price: $3.33 |
| 2 | 115-7364 | BLOCK-CLAMP, SCRAPER Price: $17.51 |
| 2 | 534193001 | Trigger Switch Price: $3.33 |
| 3 | 115-7372 | SCREW-HH Price: $0.47 |
| 3 | 534305805 | Harness Price: Call Us |
| 4 | 534386403 | Tube Price: Call Us |
| 5 | 534624002 | Screw Price: $3.33 |
| 6 | 534299724 | Rain Guard Price: $3.33 |
| 7 | 534273574 | R.H./L.H. Housing Price: Call Us |
| 8 | 534517300 | Motor Price: $3.33 |
| 9 | 534167100 | Drive Adapter Price: $4.99 |
| 10 | 534193700 | Screw Price: $1.99 |
| 11 | 534356805 | Bushing Price: $1.99 |
| 12 | 534193800 | Screw Price: $3.33 |
| 13 | 534270100 | Hanger Price: $1.99 |
| 14 | 534525205 | Blade Retainer Price: $2.99 |
| 15 | 534455305 | Air Baffle Price: $3.33 |
| 16 | 534605011 | Retaining Ring Price: $1.99 |
| 17 | 534356734 | R.H./L.H. Handle Price: $3.33 |
| 18 | 534167225 | Rear Plate Price: $3.33 |
| 19 | 952710514 | Spool & Line Price: Call Us |
| 20 | 534316200 | O-Ring Price: $0.99 |
| 21 | 534167700 | Foam Pad Price: $3.33 |
| 22 | 534166700 | Adapter Nut Price: $1.99 |
| 23 | 534167500 | Spring Price: $3.33 |
| 24 | 534167915 | Hub Ass'y. Price: $3.33 |
| 25 | 534270300 | Cotter Pin Price: $3.33 |
| 26 | 534167600 | Eyelet Price: $1.99 |
| 27 | 534872701 | Endbell Ass'y. (Drive) Price: $3.33 |
| 28 | 534608056 | Washer Price: $3.33 |
| 29 | 534619037 | Screw Price: $3.33 |
| 30 | 534517400 | Armature Ass'y. Price: $3.33 |
| 31 | 534521010 | Field Ass'y. Price: $3.33 |
| 32 | 534608056 | Washer Price: $3.33 |
| 33 | 534600042 | Brush Price: $1.99 |
