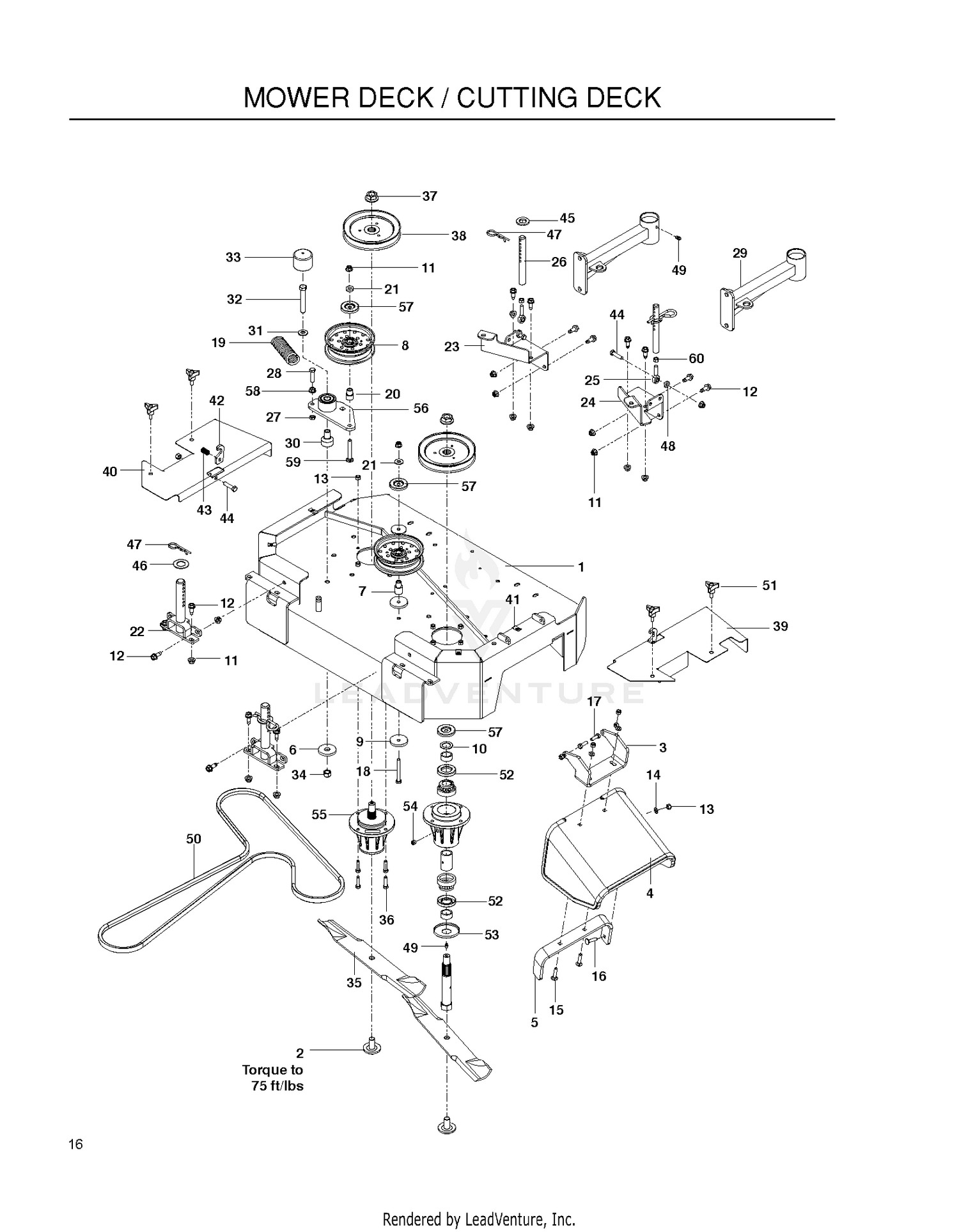

| Ref | Part Number | Description |
|---|
| 1 |
574615101 |
CUTTER DECK 36" W/DECALS Price: $1,299.99 |
| 2 |
539119007 |
BLADE BOLT/WASHER Price: $8.99 |
| 3 |
539132583 |
HINGE CHUTE - BLACK Price: $30.99 |
| 4 |
539130903 |
CHUTE, RUBBER DISCHARGE WB Price: $49.99 |
| 5 |
539130922 |
BRKT, REINF-CHUTE WB Price: $34.99 |
| 6 |
596437501 |
Washers This part replaces 539102243. Price: $8.99 |
| 7 |
539103295 |
IDLER BUSHING Price: $12.99 |
| 8 |
539103257 |
IDLER PULLEY Price: $49.99 |
| 9 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 10 |
596319701 |
Washers This part replaces 539916561. Price: $1.99 |
| 11 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 12 |
539107476 |
BOLT 3/8-16 X 1.0 Price: $5.99 |
| 13 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 14 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 15 |
596030801 |
Bolts This part replaces 539102933. Price: $3.99 |
| 16 |
596671401 |
Bolts This part replaces 539100472. Price: $3.99 |
| 17 |
596580801 |
Bolts This part replaces 539990209. Price: $2.99 |
| 18 |
539101341 |
HCS 3/8C X 3 Price: $4.99 |
| 19 |
525852901 |
SPRING, EXT Price: $9.99 |
| 20 |
539130242 |
BUSHING, IDLER Price: $2.99 |
| 21 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 22 |
525854001 |
PIN, HOC Price: $55.99 |
| 26 |
525854101 |
ROD, HOC Price: $19.99 |
| 27 |
596433501 |
NUT NUT.3/8-16.HEX.JAM.Z 3/8-1 This part replaces 539109332. Price: $2.99 |
| 28 |
539107042 |
HCS 3/8-16 X 1-1/2 Price: $2.99 |
| 29 |
525853602 |
SUPPORT, CASTER 36 OR Price: $139.99 |
| 30 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 31 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 32 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 33 |
539114823 |
CAP, VINYL Price: $2.99 |
| 34 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 35 |
539100341 |
BLADE OEM 18" Price: $19.99 |
| 36 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 37 |
598490501 |
Nuts This part replaces 539130653. Price: $7.99 |
| 38 |
522023801 |
PULLEY - 6.57 Price: $37.99 |
| 39 |
525803202 |
COVER, 36 RH GY Price: $84.99 |
| 40 |
525803102 |
COVER, 36 LH GY Price: $84.99 |
| 41 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 42 |
525833002 |
HOOK OR Price: $31.99 |
| 43 |
539132687 |
SPRING - COMPRESSION Price: $4.99 |
| 44 |
539990655 |
HCS 3/8C X 1 1/2 Price: $3.99 |
| 45 |
539109333 |
WASHER 3/4 FLAT SAE ZD Price: $3.99 |
| 46 |
539113987 |
SPACER Price: $27.99 |
| 47 |
525305801 |
HAIRPIN Price: $3.99 |
| 48 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $3.99 |
| 49 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 50 |
523075001 |
V-BELT 109 Price: $109.99 |
| 51 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 52 |
539108754 |
SHAFT SEAL Price: $6.99 |
| 53 |
539108449 |
BOTTOM DUST CAP Price: $3.99 |
| 54 |
539977326 |
PLUG-VENTED Price: $8.99 |
| 55 |
966956201 |
KIT, HSG ASM 72 This part replaces 539131385. Price: $528.99 |
| 56 |
539130391 |
ARM-IDLER W/BRG Price: $37.99 |
| 57 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 58 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 59 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 60 |
539990155 |
NUT 3/8F Price: $2.99 |
