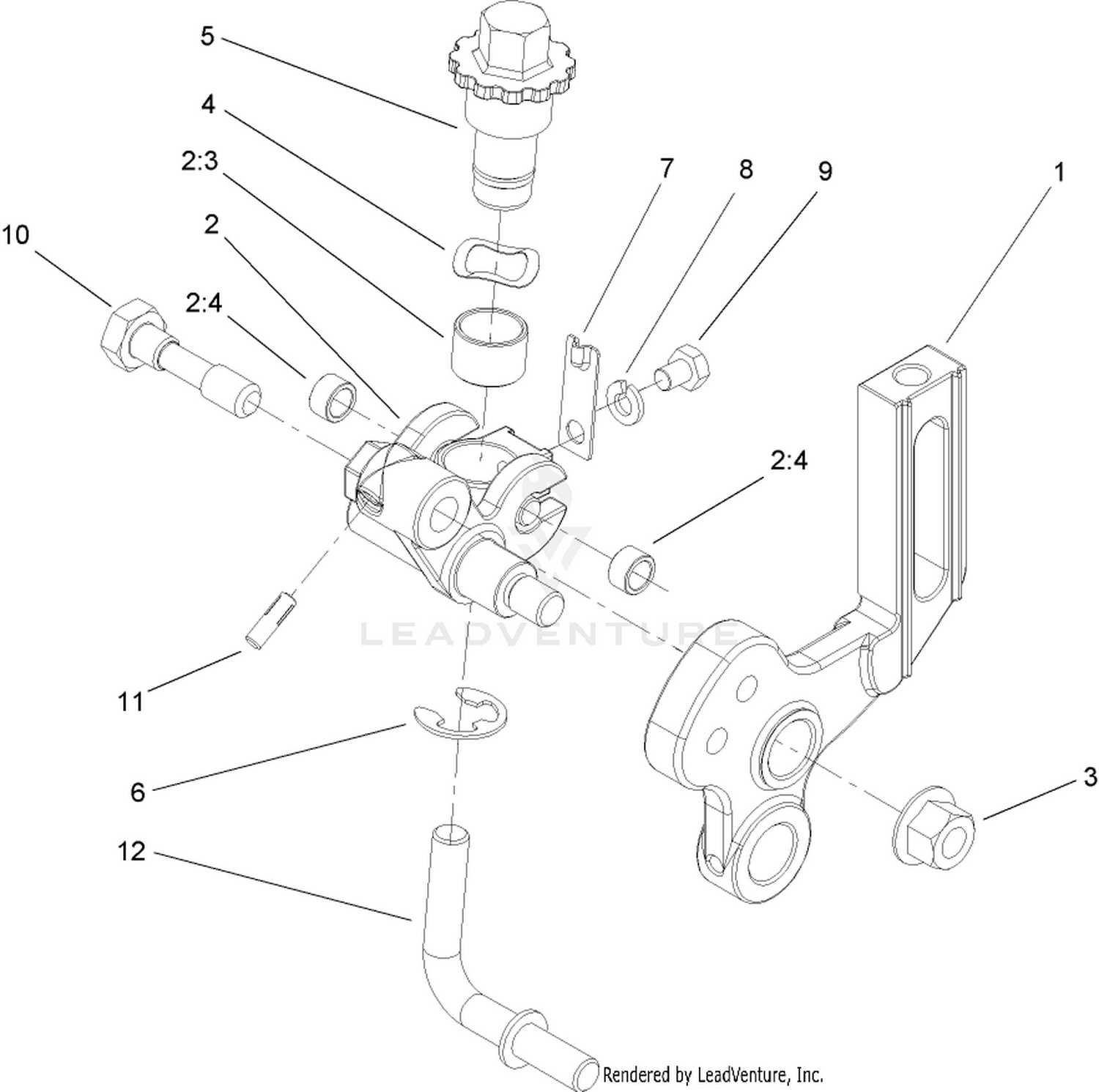

Right Hand Groomer Arm Assembly
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-8511 | ARM-GROOMER HOC, RH Price: $130.99 |
| 2 | 106-8535 | RH LIFT ARM ASM Price: $102.21 |
| 3 | 104-2611 | NUT-HF Price: $1.36 |
| 4 | 107-8107 | WASHER-WAVE Price: $8.93 |
| 5 | 106-8482 | ADJUSTER Price: $30.57 |
| 6 | 32120-19 | E-RING Price: $2.27 |
| 7 | 104-4754 | SPRING-DETENT Price: $23.47 |
| 8 | 43-5930 | WASHER-LOCK, SPRING Price: $0.75 |
| 9 | 33113-008 | SCREW-HH Price: $0.95 |
| 10 | 106-8528 | SCREW-LOCK Price: $16.17 |
| 11 | 104-9312 | PIN-GROOVED Price: $1.63 |
