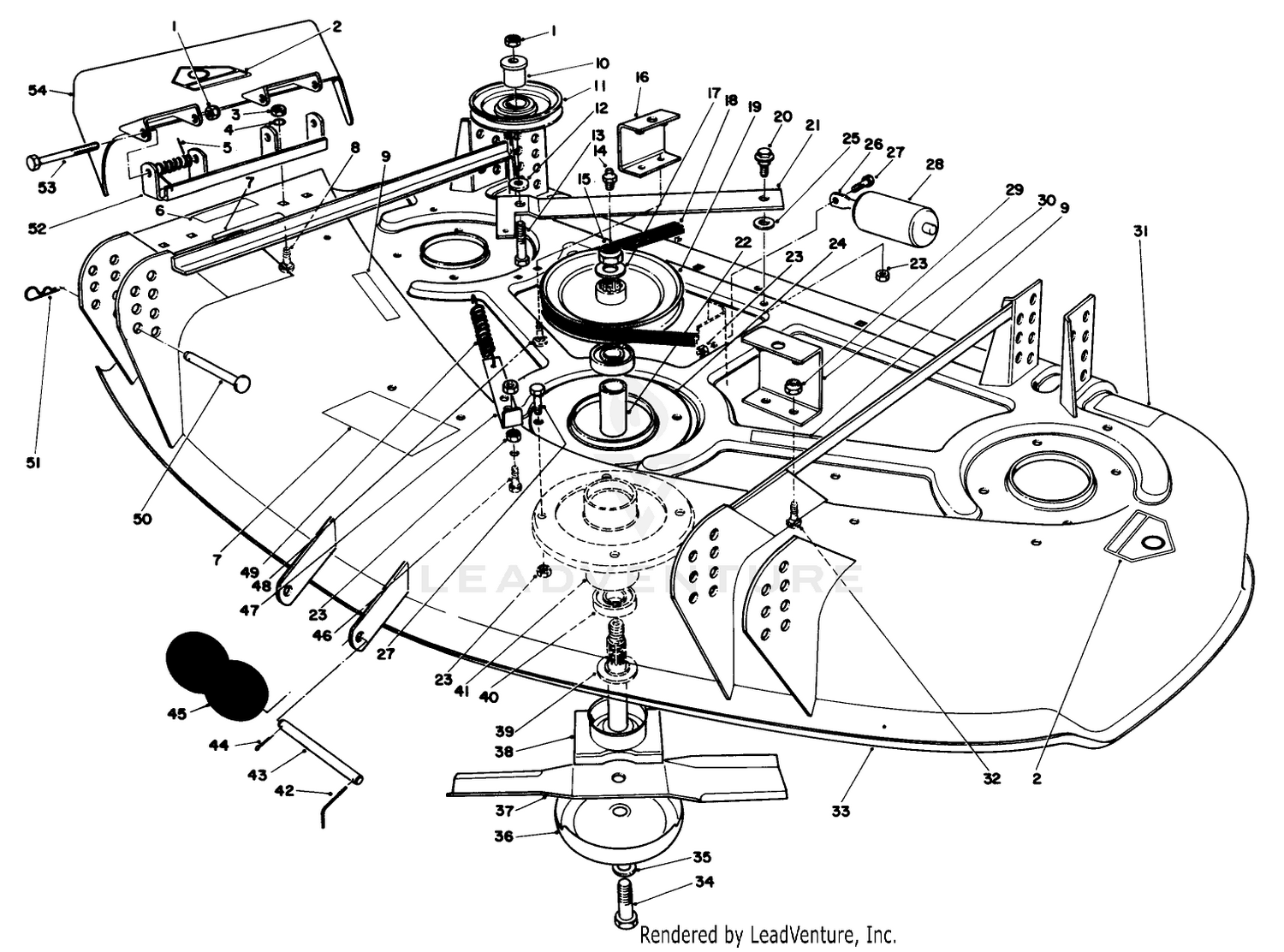

| Ref | Part Number | Description |
|---|
| 1 |
3296-5 |
NUT-HEX Price: $3.09 |
| 2 |
43-8480 |
DECAL-DANGER Price: $6.49 |
| 3 |
3217-6 |
NUT-HEX Price: $1.19 |
| 4 |
32534 |
Lockwasher Price: Call Us |
| 5 |
40-6230 |
SPRING Price: $37.99 |
| 6 |
66-6380 |
DECAL-DANGER Price: $8.97 |
| 7 |
66-1340 |
DECAL-DANGER, THROWN OBJECT Price: $9.07 |
| 8 |
3230-1 |
BOLT-CARR This part replaces 3230-20. Price: $1.49 |
| 9 |
67-5360 |
DECAL-DANGER Price: $14.99 |
| 10 |
65-5950 |
BUSHING-PULLEY Price: $4.44 |
| 11 |
65-5940 |
PULLEY-IDLER Price: $35.61 |
| 12 |
7-0081 |
WASHER-FLAT Price: $0.89 |
| 13 |
3211-8 |
SCREW-HH Price: $3.50 |
| 14 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 15 |
32146-20 |
NUT-HEX Price: $3.23 |
| 16 |
55-7050-03 |
BRACKET-COVER, RH ASM This part replaces 55-7050. Price: $62.07 |
| 17 |
74150 |
Washer Price: Call Us |
| 18 |
54-1370 |
V-BELT-DECK Price: $78.44 |
| 19 |
67-7690 |
PULLEY-DECK Price: $52.40 |
| 20 |
19-1470 |
SCREW-SHOULDER Price: $3.49 |
| 21 |
55-7430-01 |
LEVER-DECK ASM This part replaces 55-7430. Price: $54.41 |
| 22 |
67-7580 |
SPACER-BEARING Price: $20.33 |
| 23 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 24 |
55-8280-01 |
DECK RING This part replaces 55-8280. Price: $32.20 |
| 25 |
23-1120 |
WASHER Price: $16.99 |
| 26 |
62-4480 |
ROD-ROLLER Price: $18.99 |
| 27 |
322-4 |
SCREW-HH Price: $0.35 |
| 28 |
36-1740 |
ROLLER-DECK Price: $37.03 |
| 29 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 30 |
55-7060 |
Bracket-Cover LH Price: Call Us |
| 31 |
68-8340 |
DECAL-TORQUE Price: $19.99 |
| 32 |
3229-3 |
SCREW-CARR Price: $4.49 |
| 34 |
51-4060 |
SCREW-BLADE Price: $7.39 |
| 35 |
3253-8 |
WASHER-LOCK Price: $0.47 |
| 36 |
67-7561 |
CUP-SCALP, ANTI This part replaces 67-7560. Price: $40.99 |
| 37 |
54-0010-03 |
BLADE This part replaces 54-0010. Price: $22.97 |
| 38 |
71-2780-03 |
SPINDLE SHAFT ASM This part replaces 67-7670. Price: $257.99 |
| 39 |
67-7570 |
SPACER-SPINDLE Price: $7.72 |
| 40 |
251-257 |
BEARING-BALL Price: $13.99 |
| 41 |
67-7590 |
HOUSING-SPINDLE Price: $188.20 |
| 42 |
57-0690 |
PIN-SPECIAL Price: $3.66 |
| 43 |
40-6400 |
SHAFT-ROLLER Price: $38.99 |
| 44 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 45 |
29-4820 |
ROLLER Price: $14.88 |
| 46 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 47 |
54-1180-01 |
ANCHOR-SPRING, DECK This part replaces 54-1180. Price: $11.65 |
| 48 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 49 |
54-1160 |
SPRING-EXTENSION, DECK Price: $31.38 |
| 50 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 51 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 52 |
55-8320 |
PIVOT BRKT WA *R/*B Price: $51.40 |
| 53 |
3211-15 |
SCREW-HH Price: $7.99 |
| 54 |
57-6970 |
Deflector-Grass Price: Call Us |
