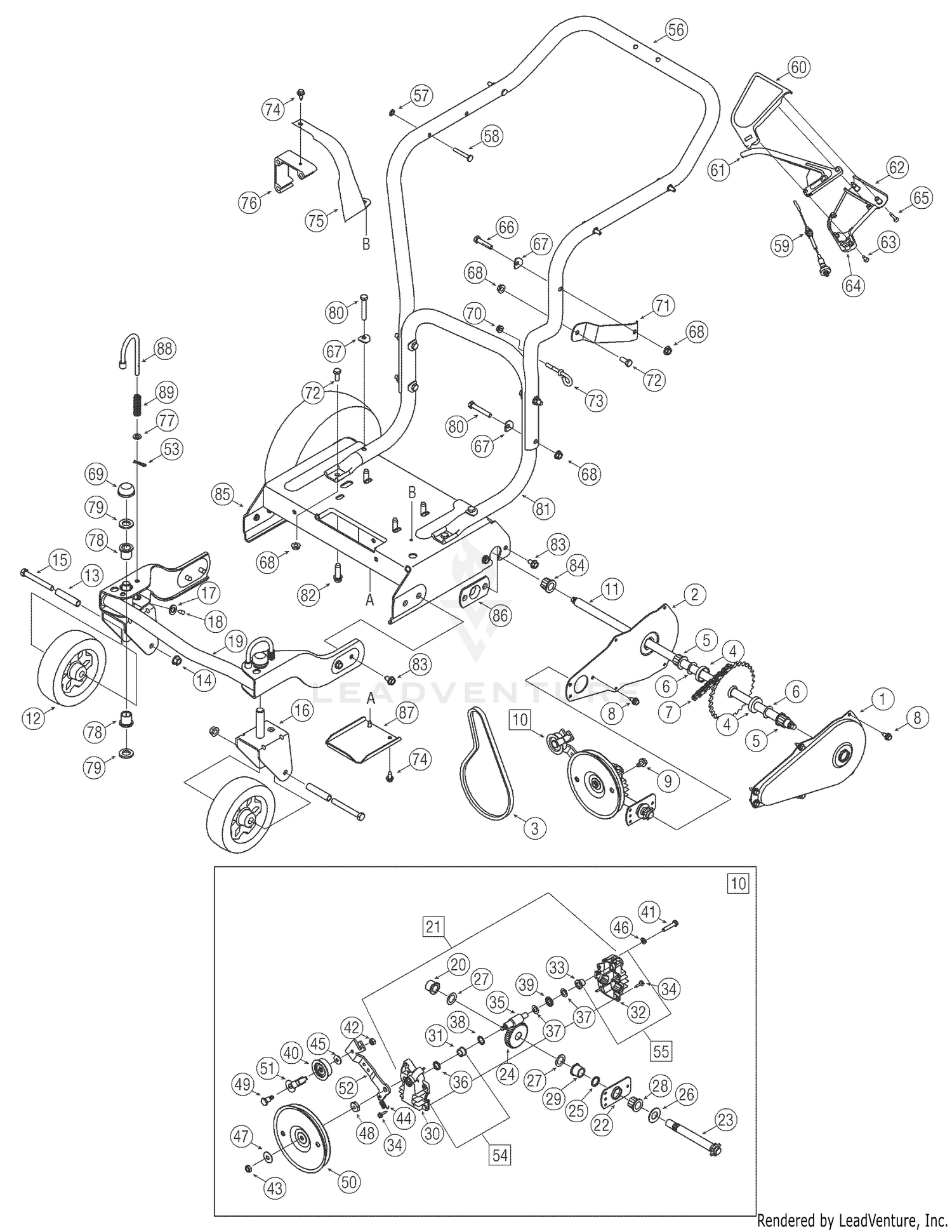

| Ref | Part Number | Description |
|---|
| 1 |
781-0677 |
CASE CHAIN (LH) Not Available Price: |
| 2 |
781-0676 |
CASE CHAIN (RH) Not Available Price: |
| 3 |
954-0457 |
V-Belt Not Available This part replaces 754-0457. Price: |
| 4 |
748-0313 |
SPACER-.630 x 1.25 Not Available Price: |
| 5 |
741-0413 |
Hex Flange Bearing Price: $8.46 |
| 6 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 7 |
913-0422 |
CHAIN #41X.500 END Not Available This part replaces 713-0422. Price: |
| 8 |
710-0896 |
TT Screw 1/4-14 x 0.625" Price: $3.86 |
| 9 |
710-0603 |
Hex Washer Screw 5/16 Price: $4.19 |
| 10 |
618-0256 |
TRANSMISSION ASSEMBLY Not Available Price: |
| 11 |
611-0063 |
AXLE SHAFT ASSEMBLY Not Available Price: |
| 12 |
734-1804A |
Wheel 6.0 x 2.0 Price: $36.04 |
| 13 |
750-1042 |
Spacer Price: $12.21 |
| 14 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 15 |
710-0521 |
Hex Cap Screw 3/8-16 x Price: $4.54 |
| 16 |
681-0088 |
Bracket Assembly Price: $43.04 |
| 17 |
736-0931 |
Flat Washer.203 ID x.403 Price: $4.02 |
| 18 |
937-3000 |
GREASE FITTING This part replaces 7373000. Price: $4.04 |
| 19 |
681-0087 |
Bracket Assembly Price: $165.60 |
| 20 |
941-0415 |
Flange Bearing.566 ID This part replaces 741-0415. Price: $9.18 |
| 21 |
918-0255 |
TRANSMISSION Not Available This part replaces 618-0255. Price: |
| 22 |
16500A-0637 |
CUP BEARING HEX Not Available This part replaces 16500A. Price: |
| 23 |
911-1118 |
SHAFT W/SPRKT. 6TH Not Available This part replaces 711-1118. Price: |
| 24 |
717-1432 |
HELICAL GEAR 34T Not Available Price: |
| 25 |
721-0213 |
Oil Seal Price: $9.93 |
| 26 |
736-0187 |
Flat Washer.64 ID x 1.24 Price: $4.02 |
| 27 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 28 |
741-0413 |
Hex Flange Bearing.631 ID Price: $8.46 |
| 29 |
741-0414 |
Flange Bearing.629 ID Price: $9.41 |
| 30 |
719-0325 |
LOWER HOUSING Not Available Price: |
| 31 |
748-0373 |
Flange Bearing.503 ID Price: $3.65 |
| 32 |
719-0324A |
UPPER HOUSING Not Available Price: |
| 33 |
748-0208A |
Flange Bearing.378 ID Price: $3.93 |
| 34 |
710-0589 |
Hex Washer Screw #10-16 Price: $6.01 |
| 35 |
717-1433 |
Pinion Shaft 10T Not Available Price: |
| 36 |
921-0329 |
Oil Seal This part replaces 721-0329. Price: $8.93 |
| 37 |
736-0314 |
Thrust Washer.382 ID x.684 Price: $6.01 |
| 38 |
936-0520 |
Flat Washer, .504 ID x.70 OD This part replaces 736-0520. Price: $5.23 |
| 39 |
741-0479 |
Thrust Bearing.375 ID x.812 Not Available Price: |
| 40 |
956-0008 |
Idler Pulley Assembly W/ Bearing This part replaces 656-0008. Price: $18.97 |
| 41 |
710-1062 |
Hex Cap Screw 1/4-20 x Price: $5.45 |
| 42 |
712-0138 |
Hex Nut 1/4-28 Price: $5.99 |
| 43 |
912-3045 |
Hex Jam Nut, 5/16-24 LH Thd Not Available This part replaces 712-3045. Price: |
| 44 |
732-0357A |
Extension Spring 1.12 Lg Price: $3.94 |
| 45 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 46 |
936-0329 |
Lock Washer This part replaces 736-0329. Price: $3.90 |
| 47 |
736-0425 |
Bell Washer.325 ID x.930 Price: $3.95 |
| 48 |
738-0440 |
Shoulder Spacer.375 ID x.165 Price: $5.45 |
| 49 |
738-0826 |
Shoulder Bolt 1/4-28 x.375 Price: $11.12 |
| 50 |
756-0656 |
Flat Pulley 5.06 Dia Not Available Price: |
| 51 |
782-7569 |
Belt Keeper Price: $6.20 |
| 52 |
682-0054 |
Idler Bracket Price: $22.58 |
| 53 |
714-0104 |
Cotter Pin Price: $3.90 |
| 54 |
618-0132 |
LOWER TRANSMISSION HOUSING Not Available Price: |
| 55 |
618-0133A |
UPPER TRANSMISSION HOUSING Not Available Price: |
| 56 |
749-1095 |
UPPER HANDLE Not Available Price: |
| 57 |
1539-019 |
Push Nut Price: $3.61 |
| 58 |
911-0737 |
Stud Pin, .250 x 1.75 Not Available This part replaces 711-0737. Price: |
| 59 |
946-0714 |
Clutch Cable - 56" This part replaces 746-0714. Price: $29.53 |
| 60 |
753-0832 |
Upper Clutch Cover This part replaces 731-1735. Price: $53.74 |
| 61 |
731-0620A |
Drive Lever Price: $13.59 |
| 62 |
731-1736 |
Lower Clutch Cover Price: Call Us |
| 63 |
710-0841 |
Screw #10-12 x.750 Price: $3.95 |
| 64 |
753-0833 |
Mounting Cable Cap This part replaces 731-1059. Price: $47.34 |
| 65 |
710-1331 |
Screw #10-16 x 1.25 Price: $3.91 |
| 66 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 67 |
736-0451 |
Shoulder Washer.320 ID x.93 Price: $3.75 |
| 68 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 69 |
726-0214 |
Push Cap Price: $9.11 |
| 70 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 71 |
781-0647 |
STABILIZER BRACKET Not Available Price: |
| 72 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 73 |
747-0815 |
EYE-BOLT Not Available Price: |
| 74 |
710-0896 |
Hex Washer Screw 1/4-14 Price: $3.86 |
| 75 |
731-1646 |
BELT COVER Not Available Price: |
| 76 |
719-0359 |
ENGINE MOUNTING ADAPTER Not Available Price: |
| 77 |
736-0264 |
Flat Washer.330 ID x.630 Price: $5.99 |
| 78 |
741-0487C |
FLANGE BEARING This part replaces 741-0487A. Price: $6.87 |
| 79 |
736-0366 |
Flat Washer 5/8 ID x 1.0 Price: $3.82 |
| 80 |
710-3103 |
Hex Cap Screw 5/16-18 x Price: $4.02 |
| 81 |
749-1094 |
Lower Push Handle Price: $68.71 |
| 82 |
710-0502A |
Screw 3/8-16 x 1.25 Price: $5.71 |
| 83 |
710-0604A |
Hex Washer Screw 5/16-18 Price: $3.96 |
| 84 |
741-0413 |
Hex Flange Bearing.631 x.720 Price: $8.46 |
| 85 |
681-0097A |
FRAME ASSEMBLY Not Available Price: |
| 86 |
781-0700-0637 |
AXLE BRACKET Not Available This part replaces 781-0700. Price: |
| 87 |
781-0697-0637 |
TRANSMISSION COVER Not Available This part replaces 781-0697. Price: |
| 88 |
747-0924 |
Lock Pin Price: $18.29 |
