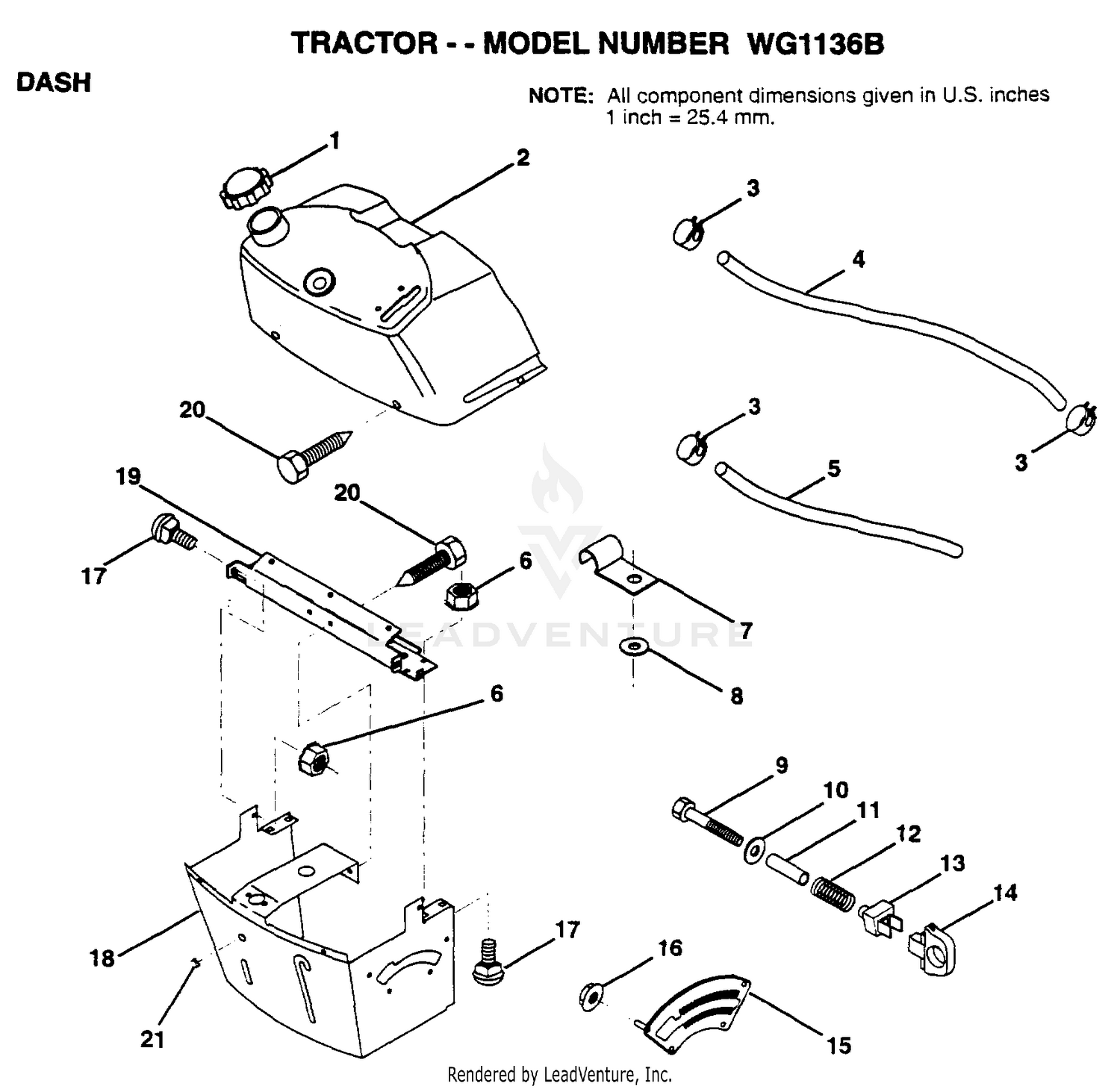

| Ref | Part Number | Description |
|---|
| 1 |
141523 |
CAP BLK FUEL LR Price: Call Us |
| 1 |
99-1644 |
DASH SHROUD ASM Price: $365.54 |
| 2 |
138392 |
TANK.ASM.DASH.LR Price: Call Us |
| 2 |
92-8997 |
COOLER-OIL Price: $512.86 |
| 3 |
123487X |
HOSE CLAMP Price: Call Us |
| 3 |
85-9550 |
RUBBER CLAMP ASM Price: $5.56 |
| 4 |
85-9670 |
NUT-T Price: $1.63 |
| 4 |
8544R |
SUB= 295J Price: Call Us |
| 5 |
8548R |
FUEL LINE T Price: Call Us |
| 5 |
AU218-5106 |
FITTING-ELB 90 This part replaces 353-371. Price: $10.29 |
| 6 |
73640400 |
NUT HXKEP 1/4X20 Price: Call Us |
| 6 |
95-0643 |
TUBE-VALVE TO COOLER Price: $45.04 |
| 7 |
2751R |
CLIP T Price: Call Us |
| 8 |
19091216 |
WASHER PM Price: Call Us |
| 8 |
767148 |
FILTER CONVERSION KIT This part replaces 95-0610. Price: $112.49 |
| 9 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 9 |
74760428 |
BOLT Price: Call Us |
| 10 |
19091413 |
WASHER Price: Call Us |
| 10 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 11 |
121249X |
SPACER SPLIT Price: Call Us |
| 11 |
322-14 |
SCREW-HH Price: $1.01 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 12 |
3720R |
SPRING M Price: Call Us |
| 13 |
92-7159 |
TREAD-FLOOR, LH Price: $26.24 |
| 14 |
126115X |
KNOB Price: Call Us |
| 14 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 15 |
122023X |
ADJUSTER QUAD Price: Call Us |
| 15 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 16 |
124346X |
NUT Price: Call Us |
| 16 |
95-5807 |
SPACER Price: $10.10 |
| 17 |
3256-82 |
WASHER-FLAT Price: $0.47 |
| 17 |
72110404 |
BOLT Price: Call Us |
| 18 |
130745 |
SUPT ASSY DASH Price: Call Us |
| 18 |
322-2 |
SCREW-HH Price: $0.69 |
| 19 |
134744 |
CROSS BRACE Price: Call Us |
| 19 |
95-0620-01 |
STRIP-RETAINER Price: $12.71 |
| 20 |
17060408 |
SCREW.1/4-20X1/2 Price: Call Us |
| 20 |
95-5826 |
SHIELD-RUBBER Price: $40.16 |
| 21 |
2412-92 |
CLAMP-HOSE Price: $2.44 |
| 22 |
95-0582 |
HOSE-INTAKE, AIR Price: $61.51 |
| 23 |
95-5805 |
AIR CLEANER ASM Price: $140.44 |
| 24 |
95-5806 |
BRACKET-MOUNTING Price: $28.01 |
| 25 |
92-7158 |
TREAD-FLOOR, RH Price: $26.24 |
| 26 |
95-5817 |
FRONT SHIELD ASM Price: $354.47 |
| 27 |
106-8103 |
DECAL Price: $36.44 |
| 28 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 30 |
94-4519 |
TUBE-CONVOLUTE Price: $2.24 |
| 31 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 32 |
106-8104 |
DECAL Price: $34.40 |
