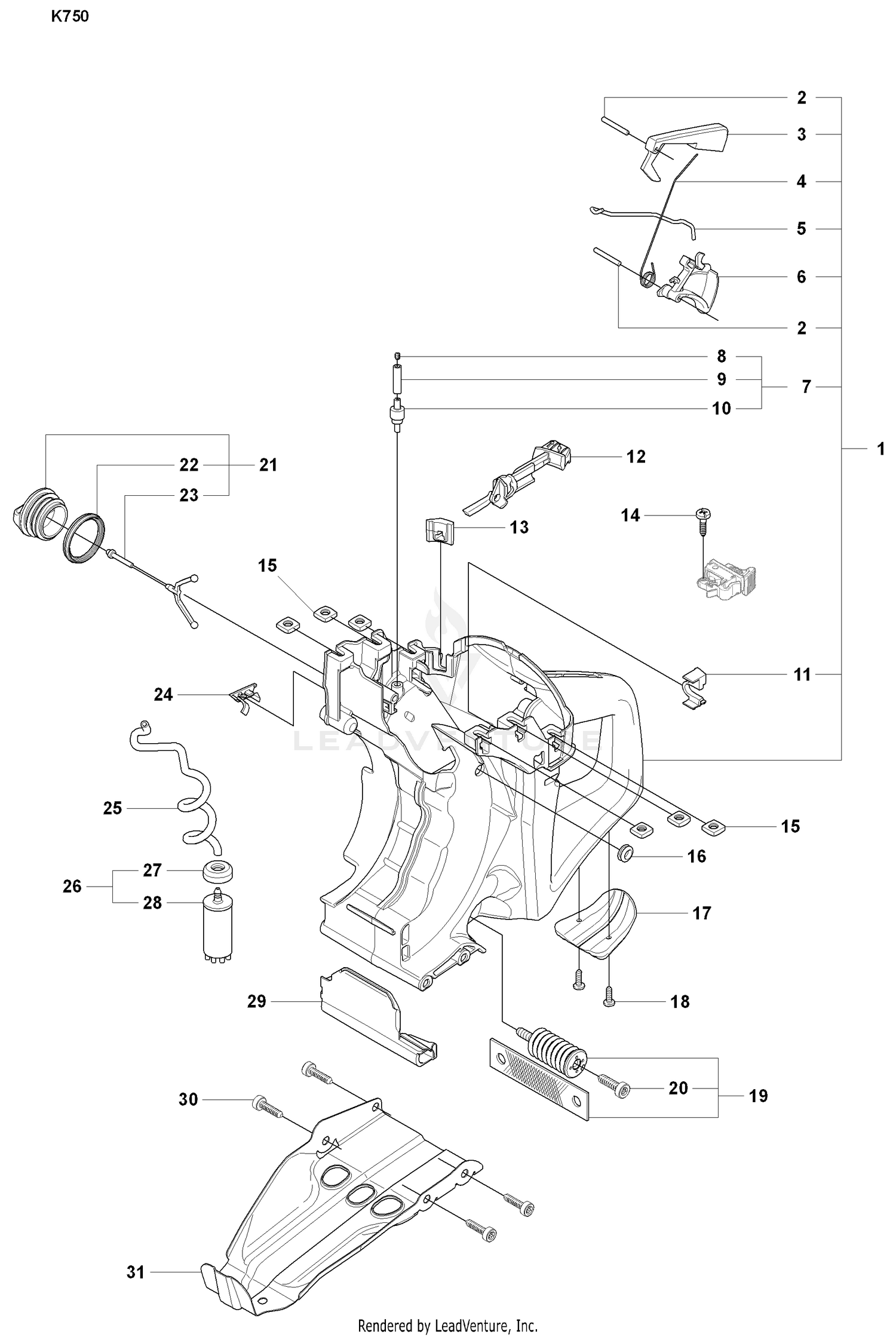

Fuel Tank
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 32152-10 | LOCKNUT Price: $0.81 |
| 2 | 720182520 | PIN This part replaces 720124020. Price: $1.99 |
| 3 | 588086001 | THROTTLE LOCKOUT This part replaces 506222802. Price: $9.99 |
| 4 | 595835701 | SPRING THROTTLE TRIGGER This part replaces 506379501. Price: $12.99 |
| 5 | 506371302 | THROTTLE ROD This part replaces 506371301. Price: $14.99 |
| 6 | 588086201 | THROTTLE CONTROL This part replaces 506372003. Price: $9.99 |
| 8 | 504357201 | SINTER PLUG Price: $4.99 |
| 9 | 501768328 | FUEL HOSE Price: $1.88 |
| 10 | 503164001 | VALVE Price: $9.99 |
| 11 | 544393201 | HOSE CLIP Price: $3.99 |
| 12 | 544229002 | CHOKE CONTROL This part replaces 544229001. Price: $9.99 |
| 13 | 506378001 | GROMMET Price: $7.99 |
| 14 | 503212806 | SCREW Price: $3.99 |
| 15 | 503226504 | NUT Price: $4.99 |
| 16 | 501271302 | GROMMET Price: $4.99 |
| 17 | 506386702 | GROUND SUPPORT Price: $3.99 |
| 18 | 503214516 | SCREW Price: $3.99 |
| 20 | 544061201 | SCREW Price: $3.99 |
| 22 | 506292101 | GASKET Price: $4.99 |
| 23 | 503578901 | TANK LOCK Price: $4.99 |
| 24 | 506394601 | COVER TANK Price: $3.99 |
| 25 | 581756203 | FUEL HOSE This part replaces 503577603. Price: $7.99 |
| 27 | 506271101 | CAP Price: $3.99 |
| 28 | 506264101 | FILTER Price: $8.99 |
| 29 | 506381501 | HEAT SHIELD Price: $4.99 |
| 30 | 503215420 | SCREW Price: $3.99 |
