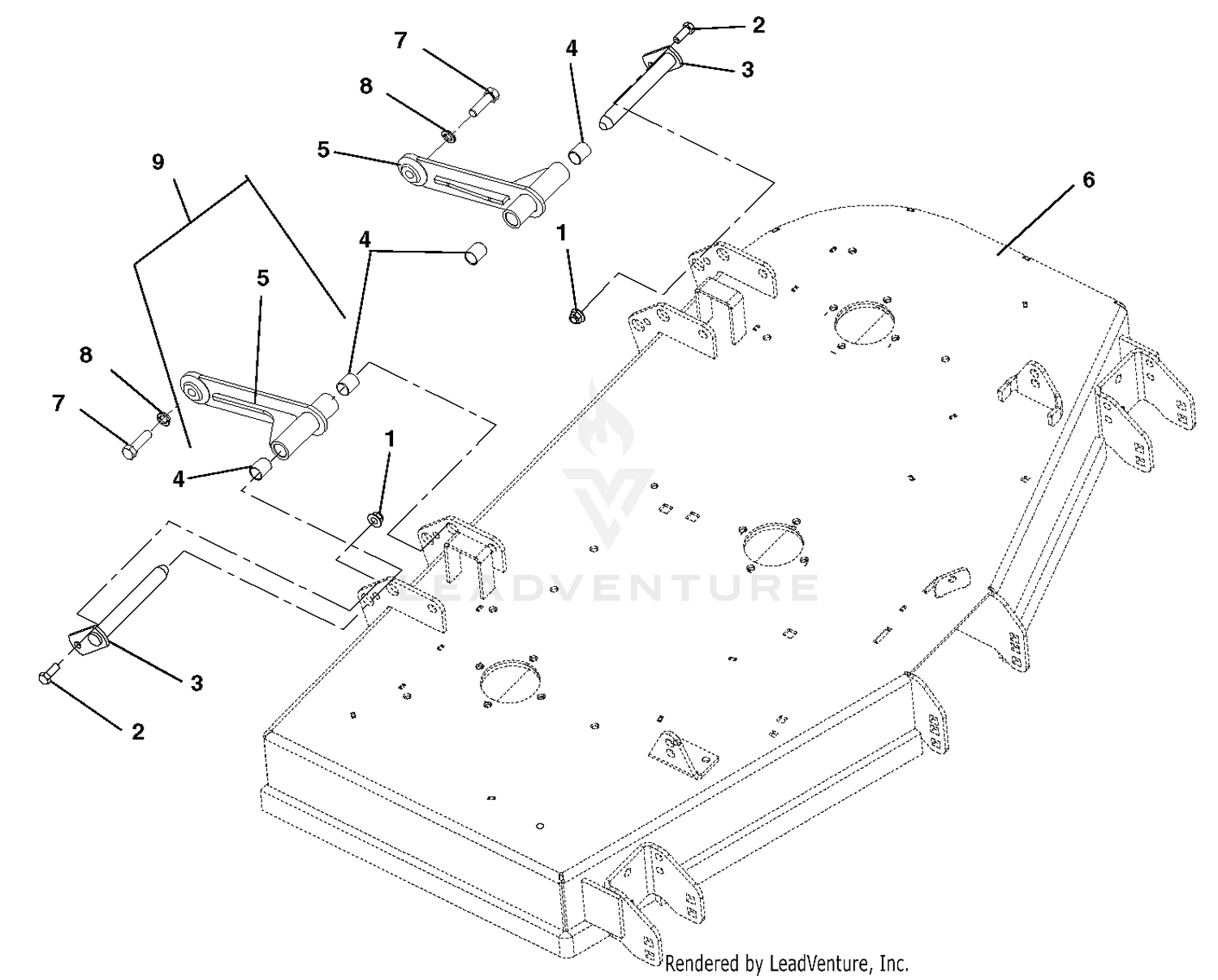

Deck & Mounting Arms
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 06500726 | NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 2 | 05901711 | BLT-HEX .38-16X1.00 G5 ZCC This part replaces 05948700. Price: $1.45 |
| 3 | 09238900 | WELDMENT, MOWER MTG. PIN Price: $55.45 |
| 4 | 05435900 | BRG, .750 X .875 X 1.000 Price: $5.95 |
| 5 | 02989151 | DECK PUSHER ARM WMT - BLACK Price: $96.95 |
| 7 | 05901939 | BLT, HEX .50-13X1.75 G5 ZCC This part replaces 05970600. Price: $3.95 |
| 8 | 06300115 | WSHR,LK-REG .500X.125 ZCC This part replaces 06307300. Price: $0.95 |
